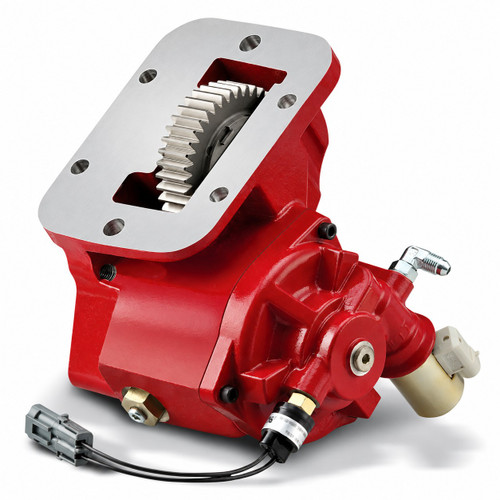

The Chelsea 249HMLLX-B226 or 249HMLLXB226 is a Power Take-Off assembly from Parker Chelsea's 249 Series, purpose-built for Ford Super Duty trucks equipped with the Ford 6R140 TorqShift 6 automatic transmission. The 249 Series mounts via a 6-bolt Ford pattern and uses hydraulic PowerShift actuation with a single hose connection and an integrated cartridge valve and pressure switch, which simplifies installation and reduces leak paths. The series is rated for up to 200 lb-ft of intermittent torque and delivers shaft power of 57 HP at 1,488 RPM. Parker Chelsea's patented noise-reduction design makes this the only quiet PTO available for this transmission platform. Typical applications include tow and recovery, service trucks, small dump trucks, and fire and rescue equipment. Call us to confirm proper fit for your specific truck configuration.
Features
Chelsea 249 Series PTO, part number 249HMLLX-B226 or 249HMLLXB226
Designed for Ford Super Duty trucks with the Ford 6R140 TorqShift 6 automatic transmission
6-bolt Ford mounting pattern
Hydraulic PowerShift actuation with single hose connection and integrated cartridge valve
Up to 200 lb-ft intermittent torque; 57 HP shaft power at 1,488 RPM
Patented noise-suppression system, the only quiet PTO solution for this Ford transmission platform
Suited for aerial, tow and recovery, service truck, small dump truck, and fire and rescue applications
Tech Specs
- Mounting Type: 6-Bolt Ford Pattern
- Shift Type: Hydraulic PowerShift
- Intermittent Torque Rating: Up to 200 lb-ft (271 Nm)
- Shaft Power: 57 HP at 1,488 RPM (42 kW)
- Output Options (Series): Round Shaft 1-1/4" with 5/16" key; 3/4"-11T pump spline; SAE B 7/8"-13T pump spline
- Lubricant System: Internal pressure lube
- Continuous Operation: Yes, with 30% de-rating
- Transmission Application: Ford 6R140 TorqShift 6 Automatic
- Compatible Vehicles: Ford Super Duty (2WD and 4WD)
Additional Information
The Chelsea 249 Series is documented in the Parker Chelsea 247/249/249V/272-F Series Owner's Manual and the 249 Series Parts List (HY25-2249-M1_US). Installation requires no special tools. The integrated actuation valve and single hose connection reduce installation time compared to conventional PTO setups. The series also supports the Chelsea Smart Start option for added control flexibility. For application-specific torque ratings and output shaft selection, consult the 249 Series application pages or call Pro Gear and Transmission to confirm the correct configuration for your equipment.Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
