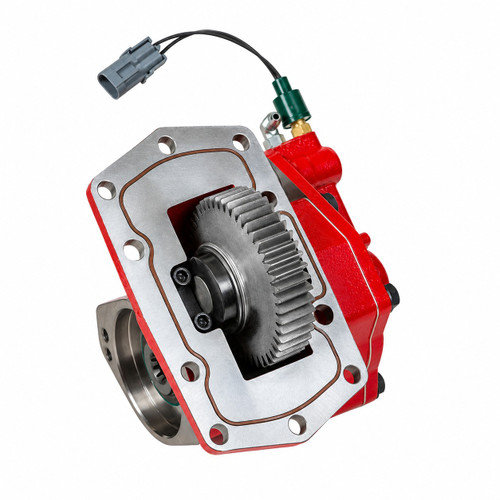

The Chelsea 249HMLLX-B4XP or 249HMLLXB4XP is a Power Take-Off assembly from the Chelsea 249 Series, engineered specifically for Ford Super Duty trucks equipped with the Ford 6R140 TorqShift 6 automatic transmission. The 249 Series uses a 6-bolt Ford mounting pattern and carries an intermittent torque rating of 200 lb-ft (271 Nm). Output power reaches 56+ HP, with shaft power measured at 57 HP at 1488 RPM. The series features an integrated actuation valve and single hose connection, simplifying installation and reducing potential leak paths. Shift type is hydraulic. The 249 Series is available for both 2WD and 4WD applications and is noted as the only PTO in its class with a patented noise-reduction system for the TorqShift 6 platform. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your specific truck configuration.
Features
Chelsea 249 Series PTO, designed for Ford 6R140 TorqShift 6 automatic transmission
Hydraulic PowerShift actuation with integrated cartridge valve and pressure switch
6-bolt Ford mounting pattern, fits 2WD and 4WD applications
Intermittent torque rating: 200 lb-ft (271 Nm); output shaft power: 57 HP at 1488 RPM
Single hose connection simplifies installation and eliminates additional leak paths
Patented noise-suppression system, the only quiet PTO solution for this Ford platform
Tech Specs
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic (PowerShift)
- Intermittent Torque: 200 lb-ft (271 Nm)
- Output Power: 56+ HP (41+ kW)
- Shaft Power: 57 HP at 1488 RPM (42 kW at 1488 RPM)
- Transmission Application: Ford 6R140 TorqShift 6
- Available For: 2WD and 4WD
- Lubricant: Internal Pressure Lube
- Continuous Operation: Yes, with 30% de-rating
Additional Information
Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
