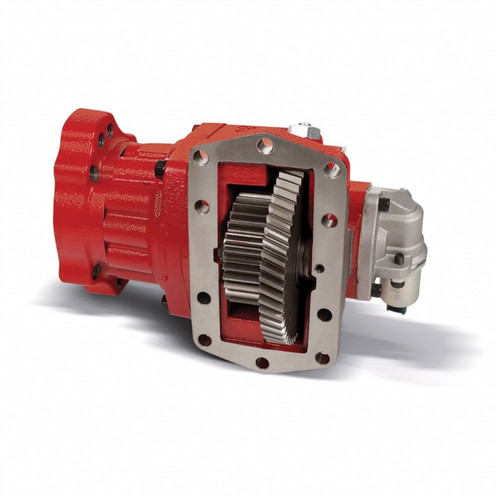

The Chelsea 272FMLLP-B8RZ or 272FMLLPB8RZ is a 272 Series hot shift power take-off assembly featuring a 6-bolt mounting configuration. The 272 Series supports up to 300 lb-ft of intermittent torque and is available in hydraulic or pneumatic shift options. The "P" in this part number designates pressure lube, which contributes to extended PTO and pump shaft service life. Rotatable flanges and an integral air control valve are standard to the series. Common applications include aerial, construction equipment, water trucks, and towing and recovery. Pro Gear and Transmission carries this genuine Chelsea part. Call us to confirm proper fit for your application.
Features
Chelsea 272 Series hot shift PTO, 6-bolt mounting
Up to 300 lb-ft intermittent torque capacity
Pressure lube configuration ("P" designation)
Integral air control valve included
Rotatable flanges for flexible installation
Suited for aerial, construction, water truck, and towing and recovery applications
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Hot Shift (Hydraulic or Pneumatic)
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Output Power: 56+ HP (41-50 kW)
- Lubricant Configuration: Pressure Lube
- Series: Chelsea 272
Additional Information
Parts Manual: Chelsea 272 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
