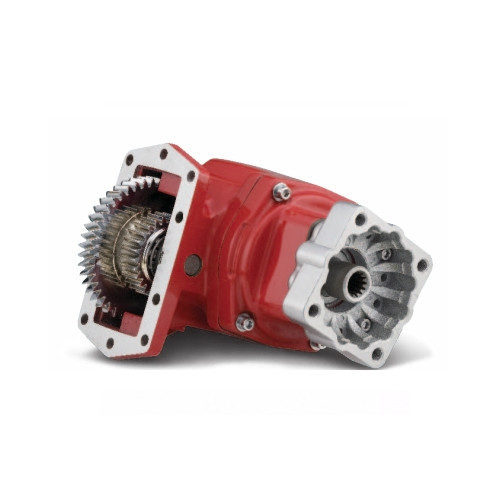

The Chelsea 272NAAJP-B5RK or 272NAAJPB5RK is a 272 Series 6-bolt hot shift power take-off assembly designed for medium-duty applications in aerial, construction, towing and recovery, and water truck equipment. Part of Chelsea's reinvented 272 Series, this PTO supports intermittent torque ratings of 201 to 300 lb-ft (401 to 500 Nm) with shift options in either pneumatic (air) or hydraulic. The 272 Series consolidates the earlier 230, 231, 236, 238, 270, and 271 series into a single platform featuring nine speed ratios and eighteen shift configurations. An integral air control valve is included, and the series supports rotatable flanges plus the Smart Start option for high-torque start-up conditions. Call us to confirm proper fit for your application.
Features
272 Series 6-Bolt hot shift mounting
Intermittent torque: 201 to 300 lb-ft (401 to 500 Nm)
Available with pneumatic (air) or hydraulic shift; includes integral air control valve
Nine speed ratios and eighteen shift configurations within the 272 Series platform
Smart Start option supports high-torque start-up conditions
Suited for aerial, construction, towing and recovery, and water truck applications
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Pneumatic (Air) or Hydraulic
- Intermittent Torque: 201 to 300 lb-ft (401 to 500 Nm)
- Output Power: 56+ HP (41 to 50 kW)
- Speed Ratios Available (Series): 9
- Shift Configurations Available (Series): 18
- Integral Air Control Valve: Included
- Output Shaft Options (Series): Round Shaft 1 in. with 1/4 in. key; Round Shaft 1-1/4 in. with 5/16 in. key
Additional Information
The Chelsea 272 Series consolidates several earlier medium-duty PTO lines, including the 230, 231, 236, 238, 270, and 271 series, into one updated platform. Direct mount outputs are available with optional Wet-Spline technology for extended PTO and pump shaft service life. Driveshaft outputs support the Smart Start option designed for demanding high-torque engagement conditions. The series is referenced under NMFC code 128520 (Hydraulic PTOs, Pumps, Motors, etc.). Also referenced as SP272NAAJP-B5RK.Parts Manual: Chelsea 272 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
