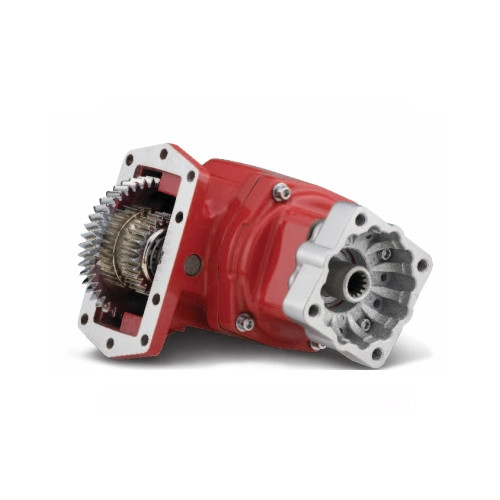

The Chelsea 272NBHVW-B5RF is a 272 Series hot shift power take-off assembly featuring a 6-bolt mounting configuration. The 272 Series consolidates multiple earlier Chelsea PTO lines into one medium-duty platform, offering up to 300 lb-ft of intermittent torque and continuous-duty torque capability. Shift options in the 272 family include pneumatic and hydraulic operation, and the series integrates an air control valve. Output shaft options across the series include round shaft configurations, and the 272 line supports direct-mount and driveshaft outputs. Common application markets include aerial, towing and recovery, construction equipment, and water trucks. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 272 Series 6-bolt hot shift PTO assembly
Up to 300 lb-ft intermittent torque capacity
Pneumatic or hydraulic shift with integral air control valve
Continuous-duty torque rating
Wet-spline option available within the 272 Series for extended PTO and pump shaft life
Suitable for aerial, towing and recovery, construction, and water truck applications
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Hot Shift (Pneumatic or Hydraulic)
- Intermittent Torque (Series): 201 to 300 lb-ft (401 to 500 Nm)
- Output Power (Series): 56+ HP (41 to 50 kW)
- Integral Air Control Valve: Yes
Additional Information
Parts Manual: Chelsea 272 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
