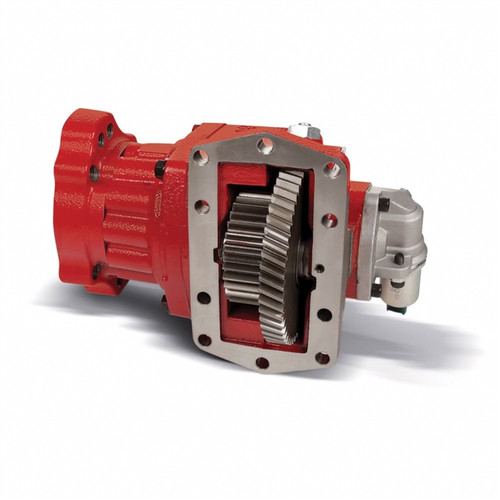

281GBFJP-S3XV Chelsea PTO Assembly

The Chelsea 281 Series Power Take-Off, part number 281GBFJP-S3XV or 281GBFJPS3XV, is a hydraulically shifted hot-shift PTO engineered for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar applications. An evolution of the 280 Series, the 281 features a ductile iron bearing cap rated 117% stronger than gray iron and an o-ring sealing configuration between the housing and bearing cap to improve clamp load and resist vibrational effects from modern engine designs. The clutch pack uses steel discs that are 80% thicker to reduce premature tooth wear. Nine speed ratios cover both low and high-speed applications, and the wet spline lubrication option extends shaft life by 7 to 10 times. Electronic Overspeed Control (EOC) and SmartStart are available to protect downstream equipment and reduce start-up shock loads. Call us to confirm proper fit for your transmission and application.

Features

Hydraulic PowerShift (hot-shift) operation designed for 10-bolt automatic transmission apertures including Allison and Caterpillar
Ductile iron bearing cap - 117% stronger than gray iron for increased durability
O-ring sealing configuration between housing and bearing cap to improve clamp load and reduce vibrational effects
Enhanced clutch pack with steel discs 80% thicker than predecessor to resist premature tooth wear
Nine speed ratios including low and high-speed ranges
Wet spline lubrication option provides 7 to 10 times greater shaft life
SmartStart reduces shock load at engagement; Electronic Overspeed Control (EOC) protects driven equipment
Rotatable cast iron flanges reduce pump clearance interference; positive stop for driveline outputs eliminates oil seal damage

Tech Specs

• Mounting Type: 10-Bolt aperture (Allison and Caterpillar automatic transmissions)
• Shift Type: PowerShift - Hydraulic (hot-shift)
• Speed Ratios: Nine ratios including low and high speeds
• Continuous Operation: Yes
• Output Types: SAE B pump flange, SAE C pump flange, ISO 7652 pump flange, driveline
• Lubricant System: Pressure lube or wet spline options
• Bearing Cap Material: Ductile iron (117% stronger than gray iron)
• Electronic Overspeed Control (EOC): Available
• SmartStart: Available for shock load reduction at start-up
• Part Number: 281GBFJP-S3XV or 281GBFJPS3XV

Additional Information

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
