Chelsea PTO Assembly P/N: 281GCFJP-B8BD or 281GCFJPB8BD

281GCFJP-B8BD Chelsea PTO Assembly

Chelsea

Listing Price: $7,194.42
Sale Price: $3,956.93

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GCFJPB8BD
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added

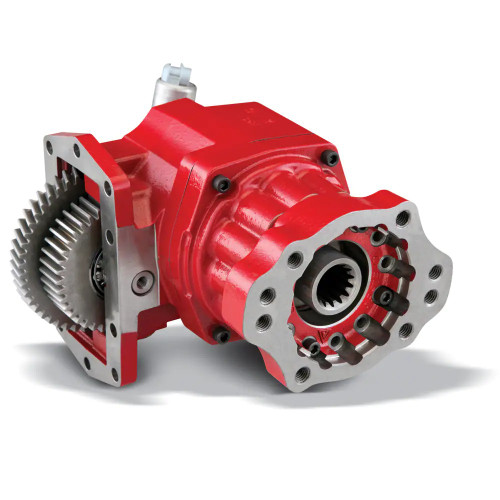

The Chelsea 281 Series Power Take-Off, part number 281GCFJP-B8BD or 281GCFJPB8BD, is a hydraulically shifted, hot-shift PTO built for 10-bolt automatic transmissions, including Allison applications. This unit carries a single, continuous duty torque rating and offers nine speed ratios covering both low and high ranges. The ductile iron bearing cap is 117% stronger than gray iron, and an O-ring sealing configuration between the housing and bearing cap improves clamp load while reducing the vibrational effects of modern engine designs. Rotatable cast-iron flanges reduce interference fitment issues, and the Positive Stop feature on driveline outputs eliminates oil seal damage from coupling. Electronic Overspeed Control (EOC) is included to protect driven equipment. Call us to confirm proper fit for your application.

Features

10-bolt hydraulic PowerShift (hot-shift) designed for Allison automatic transmissions
Ductile iron bearing cap rated 117% stronger than gray iron for extended service life
O-ring sealing configuration between housing and bearing cap reduces vibrational effects and improves clamp load
Rotatable cast-iron flanges reduce pump clearance interference issues
Nine speed ratios available, including low and high-speed selections
Electronic Overspeed Control (EOC) protects driven equipment; SmartStart option reduces shock load at engagement
Wet Spline Lubrication option provides 7 to 10 times greater output shaft life; hose included

Tech Specs

  • Mounting Type: 10-Bolt
  • Shift Type: PowerShift (Hydraulic), hot-shift
  • Compatible Transmissions: Allison automatic (10-bolt aperture)
  • Continuous Torque Rating: 390 lb-ft (529 Nm) - see application pages for actual ratings
  • Speed Ratios: Nine, including low and high speeds
  • Output Types: SAE B pump flange, SAE C pump flange, ISO 7652 pump flange, driveline
  • Lubrication: Pressure lube (P) or Wet Spline (W) option
  • Continuous Operation: Yes
  • Optional Features: SmartStart, Electronic Overspeed Control (EOC)

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
