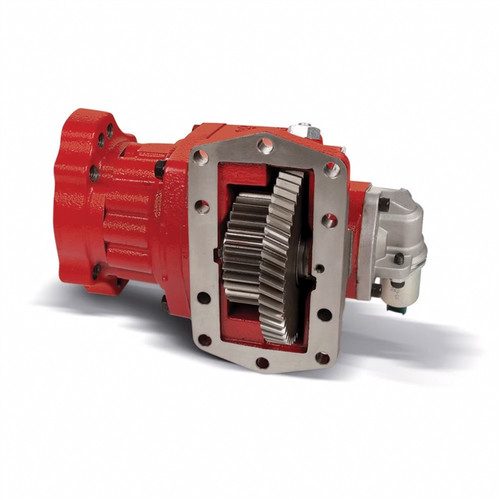

281GCFJW-N5RY Chelsea PTO Assembly

The Chelsea 281 Series Power Take-Off, part number 281GCFJW-N5RY or 281GCFJWN5RY, is a hydraulically shifted hot-shift PTO designed for automatic transmissions with a 10-bolt aperture, commonly found on Allison transmissions. It is an evolution of the Chelsea 280 Series, incorporating a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap for improved clamp load, and an enhanced clutch pack with steel discs 80% thicker than the previous design. The 281 Series offers nine speed ratios covering low and high ranges, a Wet Spline Lubrication option for 7 to 10 times greater shaft life, and Electronic Overspeed Control (EOC) to protect driven equipment. Markets served include fire and rescue, truck cranes, pumper/cleaner, and refuse applications. A genuine Chelsea part from Pro Gear and Transmission. Call us to confirm proper fit for your application.

Features

Ductile Iron Bearing Cap - 117% stronger than gray iron for greater durability
Enhanced Clutch Pack - steel discs are 80% thicker than the predecessor 280 Series design
Improved Seal - O-ring sealing configuration between housing and bearing cap reduces vibrational effects and improves clamp load
Nine Speed Ratios - covers low and high speed ranges
Wet Spline Lubrication Option - provides 7 to 10 times greater shaft life
Electronic Overspeed Control (EOC) - protects driven equipment from overspeed damage
SmartStart - reduces shock load at engagement for compatible applications
Positive Stop for Driveline Outputs - eliminates oil seal damage from coupling

Tech Specs

• Mounting Type: 10-Bolt
• Shift Type: PowerShift (Hydraulic Hot-Shift)
• Compatible Transmission: Allison automatic transmissions (10-bolt aperture)
• Continuous Torque Rating: 390 lb-ft (529 Nm) - see application pages for actual ratings
• Intermittent Torque Range: 301 to 400 lb-ft (501+ Nm)
• Output Power: 56+ HP (51+ kW)
• Shaft Power: 37 HP at 500 RPM, 74 HP at 1000 RPM (28 kW at 500 RPM, 55 kW at 1000 RPM)
• Output Types Available: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
• Output Shaft Types Available: SmartStart Round Shaft 1-1/4 in. with 5/16 in. key, 3/4 in. 11-tooth pump spline, SAE B 7/8 in. 13-tooth pump spline, SAE C 1-1/4 in. 14-tooth pump spline, DIN 5462 pump spline, 1410 companion flange, DIN 120 flange, DIN 100 flange
• Lubrication Options: Pressure Lube, Wet Spline
• Speed Ratios: Nine ratios including low and high speeds
• Continuous Operation: Yes
• NMFC Code: 125820 - Hydraulic PTOs, Pumps, Motors

Additional Information

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
