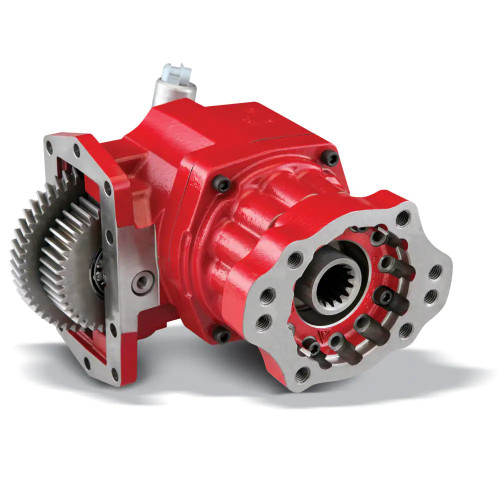

The Chelsea 281GGFJP-B5XD or 281GGFJPB5XD is a 281 Series Power Take Off assembly built for continuous-duty applications. It delivers nine speed ratios covering both low and high ranges, giving operators flexibility across a wide range of driven equipment. Ductile iron bearing caps provide 117% greater strength versus gray iron caps. An O-ring sealing configuration reduces the effects of vibration and improves clamp load retention. Rotatable, cast-iron flanges cut interference clearance issues, and positive-stop driveline outputs protect oil seals from coupling damage. Wet Spline Lubrication extends shaft service life by 7 to 10 times. Electronic Overspeed Control (EOC) guards driven equipment, while SmartStart reduces shock load at engagement. A hydraulic hose is included. Call us to confirm proper fit for your application.
Features
Nine speed ratios including low and high range selections
Ductile iron bearing caps rated 117% stronger than gray iron
O-ring seal configuration reduces vibration effects and improves clamp load
Rotatable cast-iron flanges reduce interference clearance issues
Electronic Overspeed Control (EOC) protects driven equipment from overspeed damage
Wet Spline Lubrication option extends shaft life 7 to 10 times versus standard
SmartStart feature reduces shock load at start-up
Positive-stop driveline outputs eliminate oil seal damage from coupling
Hydraulic hose included
Additional Information
Parts manual and diagrams: Chelsea 281 Series PTO parts list with prices
