Chelsea PTO Assembly P/N: 281GKFJP-B5RB or 281GKFJPB5RB

281GKFJP-B5RB Chelsea PTO Assembly

Chelsea

Listing Price: $6,654.00
Sale Price: $3,659.70

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GKFJPB5RB
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added

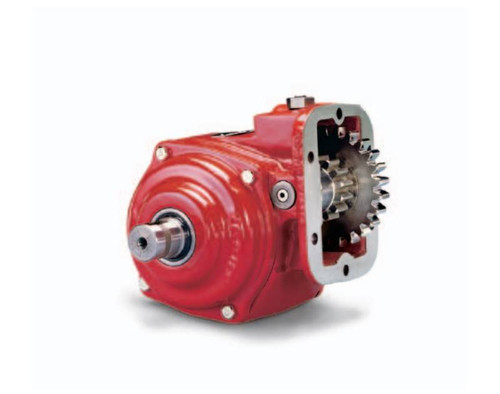

The Chelsea 281 Series Power Take-Off, part number 281GKFJP-B5RB or 281GKFJPB5RB, is a hydraulically shifted hot-shift PTO designed for automatic transmissions with a 10-bolt aperture, commonly used on Allison transmissions. An evolution of the 280 Series, the 281 Series features a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring sealing configuration between the housing and bearing cap for improved clamp load, and an enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear. Nine speed ratios cover both low and high ranges. Rotatable cast-iron flanges reduce interference fit issues, and the wet spline lubrication option extends shaft life by 7 to 10 times. Applications span fire and rescue, refuse, truck cranes, and pumper-cleaner equipment. Call us to confirm proper fit for your application.

Features

Hydraulic PowerShift (hot-shift) operation for use with automatic transmissions
10-bolt mounting aperture, commonly fitted to Allison transmissions
Ductile iron bearing cap, 117% stronger than gray iron predecessor
O-ring seal between housing and bearing cap improves clamp load and reduces vibrational effects
Enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear
Nine speed ratios including low and high speeds
Wet spline lubrication option provides 7 to 10 times greater shaft life
SmartStart feature reduces shock load at start-up for applicable configurations
Electronic Overspeed Control (EOC) protects driven equipment
Positive stop for driveline outputs eliminates oil seal damage from coupling

Tech Specs

  • Mounting Type: 10-Bolt
  • Shift Type: PowerShift (Hydraulic) - Hot Shift
  • Compatible Transmission: Allison automatic transmissions
  • Continuous Torque Rating: 390 lb-ft (529 Nm) - verify actual rating on application pages
  • Speed Ratios: Nine ratios, including low and high speeds
  • Lubricant Options: Pressure Lube or Wet Spline
  • Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
  • Continuous Operation: Yes

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
