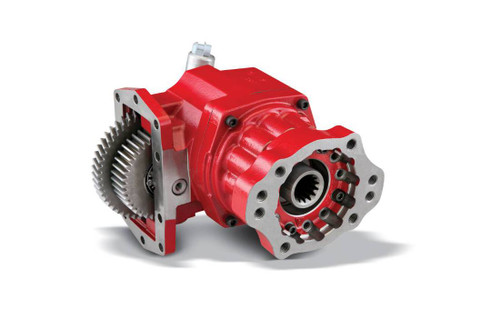

The Chelsea 281 Series Power Take-Off, part number 281GMFJP-B8RS or 281GMFJPB8RS, is a hydraulically shifted (PowerShift) PTO designed for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar applications. Built as an evolution of the 280 Series, the 281 features a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring sealing configuration between the housing and bearing cap, and an 80% thicker clutch pack to resist premature tooth wear. Nine speed ratios cover both low- and high-speed applications. Optional Wet Spline Lubrication delivers 7 to 10 times greater shaft life. Electronic Overspeed Control (EOC) protects driven equipment, and the SmartStart feature reduces shock load at engagement. Common markets include fire and rescue, refuse, truck cranes, and pumper-cleaner trucks. Call us to confirm proper fit for your transmission and application.
Features
Ductile iron bearing cap, 117% stronger than gray iron predecessor
O-ring sealing between housing and bearing cap improves clamp load and reduces vibrational effects
80% thicker steel discs in the clutch pack resist premature tooth wear
Nine speed ratios, including low- and high-speed options
Wet Spline Lubrication option provides 7 to 10 times greater shaft life
Electronic Overspeed Control (EOC) and SmartStart shock-load reduction included
Tech Specs
- Mounting Type: 10-Bolt aperture (Allison and Caterpillar automatic transmissions)
- Shift Type: PowerShift (Hydraulic)
- Continuous Operation: Yes
- Continuous Torque Rating: 390 lb-ft (529 Nm) - see application pages for actual ratings
- Intermittent Torque Range: 301 to 400 lb-ft (501+ Nm)
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 37 HP at 500 RPM, 74 HP at 1000 RPM
- Output Types Available: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
- Lubricant Options: Pressure Lube (P), Wet Spline (W)
- Series: Chelsea 281 Series (evolution of the 280 Series)
Additional Information
Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
