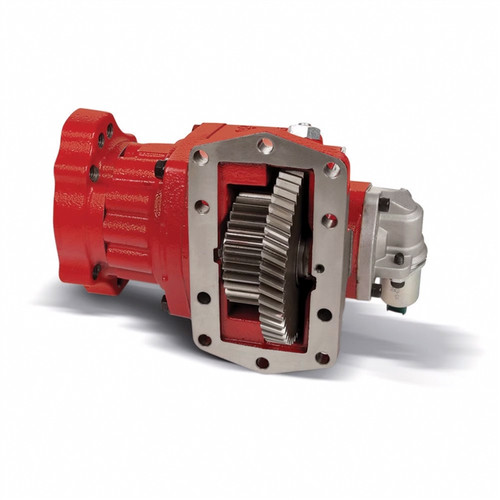

281GTFJP-D5AC Chelsea PTO Assembly

The Chelsea 281 Series Power Take-Off, part number 281GTFJP-D5AC or 281GTFJPD5AC, is a hydraulically shifted hot-shift PTO engineered for automatic transmissions with a 10-bolt aperture, commonly used on Allison and Caterpillar transmissions. The 281 Series is an evolution of the 280 Series, featuring a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap to improve clamp load, and an enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear. Nine speed ratios cover both low and high ranges. Rotatable cast iron flanges reduce pump clearance interference, and a Wet Spline lubrication option extends shaft life by 7 to 10 times. The series carries a single, continuous duty torque rating and supports Electronic Overspeed Control (EOC) for driven-equipment protection. Call us to confirm proper fit for your application.

Features

Hydraulic PowerShift (hot-shift) operation for use with automatic transmissions
Ductile iron bearing cap, 117% stronger than gray iron predecessor
O-ring seal between housing and bearing cap improves clamp load and resists vibrational effects
Enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear
Nine speed ratios including low and high speeds
Wet Spline lubrication option provides 7 to 10 times greater shaft life
Positive Stop for driveline outputs eliminates oil seal damage from coupling
SmartStart reduces shock load at start-up for applicable installations
Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

• Mounting: 10-Bolt aperture (Allison and Caterpillar automatic transmissions)
• Shift Type: Hydraulic PowerShift (hot-shift)
• Continuous Duty: Single, continuous duty torque rating
• Series Continuous Torque: 390 lb-ft (529 Nm) - check application pages for actual rating
• Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
• Speed Ratios: Nine ratios including low and high speeds
• Lubrication: Pressure Lube (P) or Wet Spline (W) option available
• Markets: Fire and Rescue, Truck Cranes, Pumper Cleaner, Refuse

Additional Information

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
