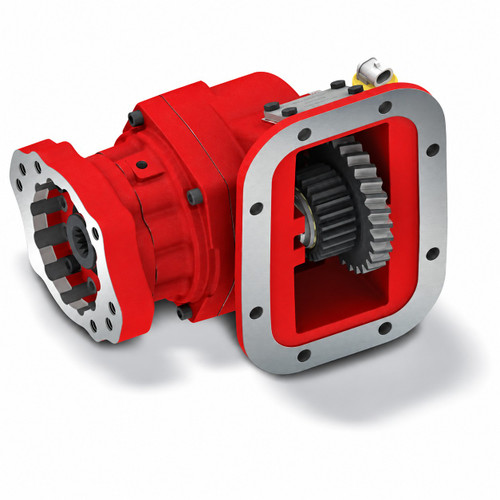

The Chelsea 282GCAJX-P3XD or 282GCAJXP3XD is a medium-duty hot shift power take-off assembly from the Chelsea 282 Series. This 8-bolt mount PTO supports both pneumatic and PowerShift (pneumatic/hydraulic) shift options, with intermittent torque ratings of 201 to 300 lb-ft (401 to 500 Nm). The 282 Series delivers up to 57 HP at 1,000 RPM and carries a continuous-duty torque rating with a 30% de-rate factor. Output shaft options within the series include a 1-1/4 in. round shaft with 5/16 in. key and a 1 in. round shaft with 1/4 in. key. Common applications span aerial equipment, towing and recovery, water trucks, construction equipment, and fuel oil delivery trucks. Call us to confirm proper fit for your specific transmission and chassis.
Features
Chelsea 282 Series medium-duty hot shift PTO assembly
8-bolt mounting configuration
Pneumatic and PowerShift (pneumatic/hydraulic) shift options
Intermittent torque rating: 201 to 300 lb-ft (401 to 500 Nm)
Shaft power output: up to 57 HP at 1,000 RPM
Compatible with aerial, towing and recovery, water truck, construction, and fuel oil delivery applications
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
