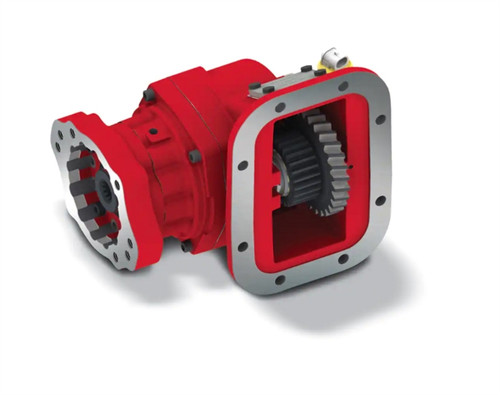

The Chelsea 282 Series PTO Assembly, part number 282GDAJP-A3XD or 282GDAJPA3XD, is an 8-bolt medium-duty hot-shift power take-off designed for demanding work cycles. It supports pneumatic or PowerShift (pneumatic/hydraulic) engagement and fits transmissions from Allison, Volvo/Mack, Eaton/Fuller, and other manufacturers. The 1-1/4" round output shaft with 5/16" keyway delivers up to 300 lb-ft (407 Nm) of continuous torque and 57 HP (43 kW) at 1,000 RPM. Intermittent torque capacity reaches 201-300 lb-ft (401-500 Nm). The 282 Series serves aerial, construction, water truck, towing and recovery, and fuel oil delivery applications. Call us to confirm proper fit for your application.
Features
8-bolt mounting, compatible with Allison, Volvo/Mack, Eaton/Fuller, and other transmission manufacturers
Air (pneumatic) or PowerShift (pneumatic/hydraulic) shift with integral air valve
1-1/4" round output shaft with 5/16" keyway
Continuous torque rating up to 300 lb-ft (407 Nm); intermittent torque 201-300 lb-ft (401-500 Nm)
Shaft power output: 29 HP (21 kW) at 500 RPM, 57 HP (43 kW) at 1,000 RPM
Rotatable flanges, wet-spline option, and Smart Start option for high-torque engagement
Tech Specs
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Continuous Torque: 300 lb-ft (407 Nm) - check application pages for actual torque ratings
- Output Shaft Type: 1-1/4" Round with 5/16" Key
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic, PowerShift (Pneumatic/Hydraulic)
- Output Power: 41-50 kW, 56+ HP
- Shaft Power: 29 HP (21 kW) at 500 RPM; 57 HP (43 kW) at 1,000 RPM
- Compatible Transmissions: Allison, Volvo/Mack, Eaton/Fuller, Other
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
