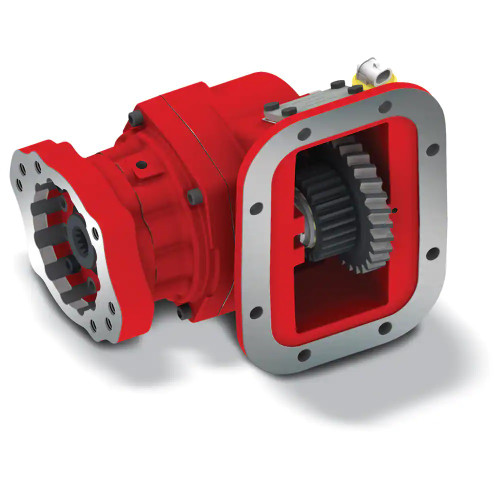

The Chelsea 282GDAJX-A3RB or 282GDAJXA3RB is a medium-duty hot shift power take-off assembly from Parker Chelsea's 282 Series. The 282 Series supports both pneumatic and hydraulic (PowerShift) shift options and mounts via an 8-bolt pattern. The series is rated for intermittent torque of 201-300 lb-ft (401-500 Nm), with shaft power outputs ranging from 29 HP at 500 RPM to 57 HP at 1,000 RPM. Applications across the 282 Series include fuel oil delivery, towing and recovery, aerial work platforms, construction equipment, and water trucks. Call us to confirm proper fit for your application.
Features
Chelsea 282 Series medium-duty hot shift PTO assembly
8-bolt mounting pattern
Pneumatic or hydraulic (PowerShift) shift options
Intermittent torque rating: 201-300 lb-ft (401-500 Nm)
Shaft power: 29 HP at 500 RPM, 57 HP at 1,000 RPM
Suitable for aerial, construction, towing and recovery, fuel oil delivery, and water truck applications
Tech Specs
- Series: Chelsea 282 Series
- Shift Type: Pneumatic or Hydraulic (PowerShift)
- Mounting: 8-Bolt
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Shaft Power: 29 HP (500 RPM), 57 HP (1,000 RPM)
- Output Shaft Options (series): Round Shaft 1-1/4 in. with 5/16 in. key; Round Shaft 1 in. with 1/4 in. key
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
