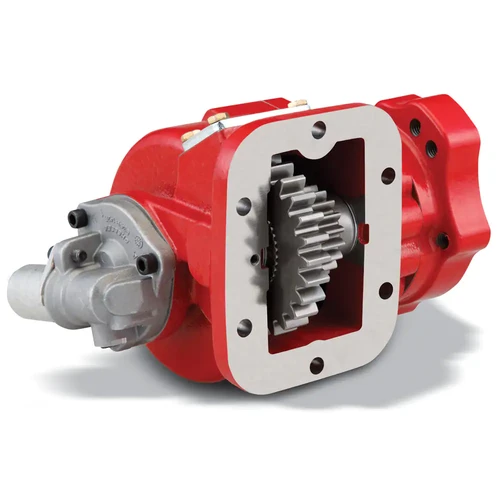

The Chelsea 282GKAJX-13RK or 282GKAJX13RK is a medium-duty hot shift Power Take-Off (PTO) assembly from the Chelsea 282 Series. The 282 Series mounts via an 8-bolt pattern and supports both pneumatic and PowerShift (pneumatic/hydraulic) shift operation. Intermittent torque capability for the series reaches 300 lb-ft (401-500 Nm), with shaft power ratings of 29 HP at 500 RPM and 57 HP at 1000 RPM. Output shaft options across the series include a 1-1/4 in. round shaft with 5/16 in. key and a 1 in. round shaft with 1/4 in. key. The 282 Series is applied in aerial, construction, towing and recovery, water truck, and fuel oil delivery markets. Call us to confirm proper fit for your application.
Features
Chelsea 282 Series medium-duty hot shift PTO assembly
8-bolt mounting pattern
Pneumatic or PowerShift (pneumatic/hydraulic) shift operation
Intermittent torque capability up to 300 lb-ft (401-500 Nm) for the series
Shaft power: 29 HP at 500 RPM, 57 HP at 1000 RPM
Integral air valve with rotatable flanges; Wet-Spline option for extended pump shaft life
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
