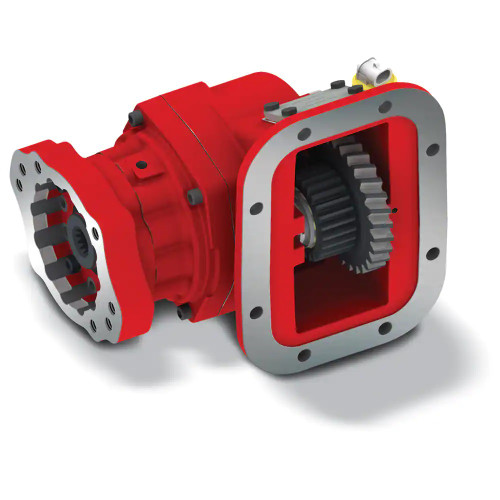

The Chelsea 282 Series Power Take-Off Assembly, part number 282GKAJX-A3RY or 282GKAJXA3RY, is an 8-bolt, medium-duty hot-shift PTO compatible with Allison, Eaton/Fuller, Volvo/Mack, and other transmission platforms. It ships with a 1-1/4" round output shaft featuring a 5/16" key and supports both pneumatic and PowerShift (pneumatic/hydraulic) engagement. The 282 Series carries a continuous-duty torque rating up to 300 lb-ft (407 Nm) and an intermittent rating in the 201-300 lb-ft range. Shaft power output is rated at 29 HP (500 RPM) and 57 HP (1,000 RPM). The integral air valve, rotatable flanges, and optional Wet-Spline technology suit aerial, towing and recovery, construction, water truck, and fuel oil delivery applications. Call Pro Gear and Transmission to confirm proper fit for your specific transmission and application.
Features
8-Bolt mounting, compatible with Allison, Eaton/Fuller, Volvo/Mack, and other transmissions
Pneumatic or PowerShift (pneumatic/hydraulic) engagement with integral air valve
1-1/4" round output shaft with 5/16" key
Continuous-duty torque rating up to 300 lb-ft (407 Nm); intermittent range 201-300 lb-ft
Shaft power: 29 HP at 500 RPM, 57 HP at 1,000 RPM
Rotatable flanges; optional Wet-Spline for extended PTO and pump shaft service life
Smart Start option available for high-torque start-up conditions
Tech Specs
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Continuous Torque: Up to 300 lb-ft (407 Nm) - check application pages for actual torque ratings
- Output Shaft Type: 1-1/4" Round with 5/16" Key
- Shift Type: Pneumatic or PowerShift (Pneumatic/Hydraulic)
- Mounting Type: 8-Bolt
- Output Power: 56+ HP (41-50 kW)
- Shaft Power: 29 HP / 21 kW at 500 RPM; 57 HP / 43 kW at 1,000 RPM
- Transmission Compatibility: Allison, Eaton/Fuller, Volvo/Mack, Other
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
