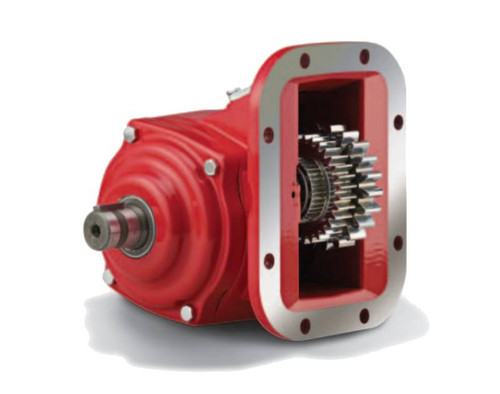

The Chelsea 282GKAJX-P3RB or 282GKAJXP3RB is a medium-duty hot shift power take-off from the Chelsea 282 Series, designed for demanding mobile equipment applications. The 282 Series supports pneumatic or hydraulic shift operation and uses an 8-bolt mounting configuration. Output shaft options within the series include a 1-1/4 in. round shaft with 5/16 in. key and a 1 in. round shaft with 1/4 in. key. Intermittent torque capability for the series reaches up to 300 lb-ft. Common applications for the 282 Series include aerial equipment, construction equipment, towing and recovery vehicles, water trucks, and fuel oil delivery trucks. Call us to confirm proper fit for your application.
Features
Chelsea 282 Series medium-duty hot shift PTO
8-bolt mounting configuration
Pneumatic or hydraulic (PowerShift) shift operation
Intermittent torque up to 300 lb-ft (series rating)
Output shaft options: 1-1/4 in. round with 5/16 in. key or 1 in. round with 1/4 in. key
Suited for aerial, construction, towing and recovery, water truck, and fuel oil delivery applications
Tech Specs
- Part Number: 282GKAJX-P3RB or 282GKAJXP3RB
- Brand: Chelsea (Parker)
- Series: 282 Series
- Shift Type: Pneumatic or Hydraulic (PowerShift)
- Mounting Type: 8-Bolt
- Intermittent Torque (Series): Up to 300 lb-ft
- Output Shaft Options (Series): 1-1/4 in. round shaft with 5/16 in. key; 1 in. round shaft with 1/4 in. key
- Dimensions (H x W x L): 15.75 in. x 12.5 in. x 14 in.
- NMFC Code: 121875-70
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
