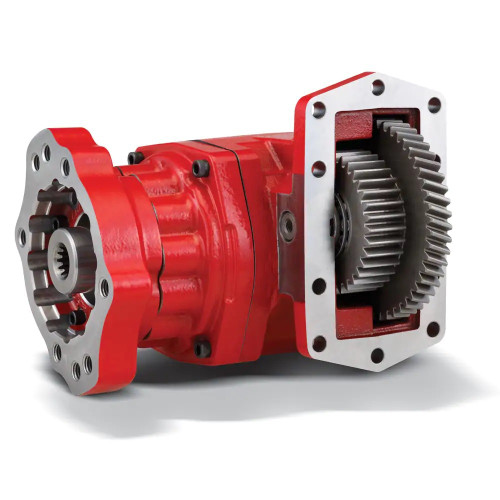

Chelsea PTO P/N: 287GDFJP-M3XV or 287GDFJPM3XV, expert help when you need it! Call us for any questions on this part or availability!
Features
Rotatable Flanges to improve clearance
Continuous-Duty Torque Rating up to 390 ft-lbs
Wet-Spline Option to extend PTO/Pump shaft life
Positive Stop for driveline options to prevent seal damage
Tech Specs
- Weight: 20 kg, 44 lb
- Intermittent Torque: 201-300 lb-ft, 401-500 Nm, 340 (Check Application Pages for Actual Torque Ratings) lb-ft, 461 (Check Application Pages for Actual Torque Ratings) Nm
- Mounting Type: 8-Bolt, 10-Bolt
- Shift Type: Pneumatic, Constant Mesh
- Output Power: 41-50 kW, 56+ HP
- Transmission Manufacturer: Allison, Other
- Output Shaft Type: 1-1/4" Round, 1-1/4" Round w/key
- Shaft Power: 500 RPM: 32, 1000 RPM: 65 HP, 500 RPM: 24, 1000 RPM: 48 kW
Additional Information
Parts Manual: Chelsea 287 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
