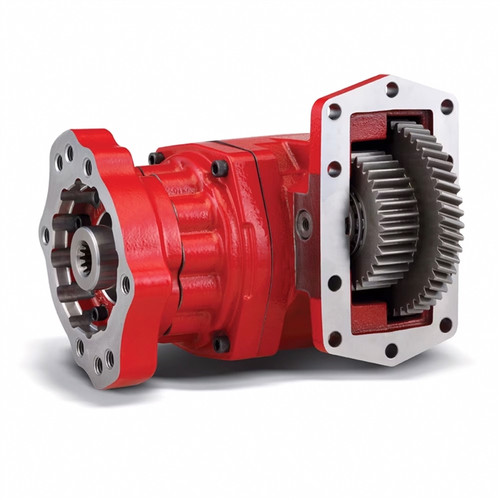

The Chelsea 288GBFJP-M3AC or 288GBFJPM3AC is a heavy-duty 288 Series Power Take-Off built on a 10-bolt, constant mesh platform. It delivers a single continuous duty torque rating of up to 390 lb-ft, using wider gears and larger-capacity bearings compared to the 281 Series it was developed from. The cast iron housing provides durability for demanding vocational applications including snow and ice, vacuum, aerial, and refuse trucks. Ductile iron bearing caps are 117% stronger than gray iron, and an O-ring sealing configuration between the housing and bearing cap improves clamp load while reducing vibrational effects from modern engine designs. The standard output is a round shaft with a 1-1/4" key, and the positive stop feature protects oil seals from driveline coupling damage. Nine speed ratios cover both low and high speed requirements. Call us to confirm proper fit for your application.
Features
10-Bolt constant mesh mounting on a cast iron housing
Ductile iron bearing caps rated 117% stronger than gray iron
O-ring sealing configuration between housing and bearing cap reduces vibration effects and improves clamp load
Single continuous duty torque rating up to 390 lb-ft
Nine speed ratios including low and high speeds
Wet Spline Lubrication option extends pump shaft life 7 to 10 times over standard
Positive stop on driveline output eliminates oil seal damage from shaft coupling
Hydraulic hose included
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh
- Output Shaft Type: Round shaft, 1-1/4" key
- Continuous Duty Torque: Up to 390 lb-ft
- Speed Ratios: Nine (includes low and high)
- Lubrication Options: Pressure lube (P) or Wet Spline (W)
- Housing Material: Cast iron
- Bearing Caps: Ductile iron
Additional Information
Parts Manual: Chelsea 288 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
