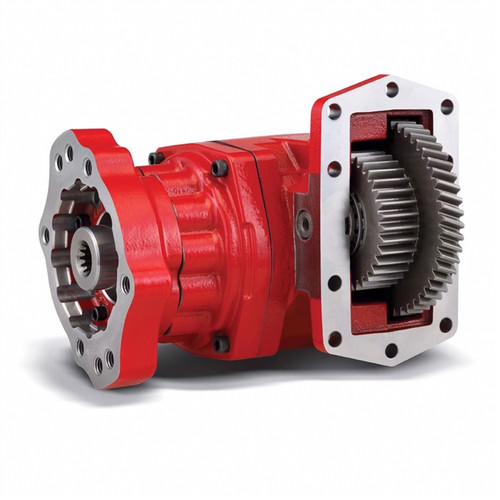

The Chelsea 288 Series Power Take-Off, part number 288GCFJP-M3XD or 288GCFJPM3XD, is a heavy-duty constant mesh PTO built for 10-bolt transmission applications. It delivers a single continuous duty torque rating of up to 390 lb-ft and draws from nine speed ratios covering both low and high ranges. The cast iron housing and ductile iron bearing caps - 117% stronger than gray iron - address the vibrational demands of modern engine designs. An O-ring sealing configuration between the housing and bearing cap improves clamp load. The standard output shaft uses a positive stop design to eliminate oil seal damage from shaft couplings. The optional Wet Spline Lubrication configuration extends pump shaft life by 7 to 10 times over dry-spline operation. A lube hose is included. Common markets include refuse, vacuum, aerial, and snow-and-ice equipment. Call us to confirm proper fit for your application.
Features
10-Bolt mounting, constant mesh design built on the proven 281 Series platform
Continuous duty torque rating up to 390 lb-ft; single unified rating (no separate intermittent de-rate)
Ductile iron bearing caps rated 117% stronger than gray iron predecessors
O-ring sealing between housing and bearing cap reduces vibrational effects and improves clamp load
Positive stop driveline output shaft prevents oil seal damage from shaft couplings
Wet Spline Lubrication option extends pump shaft life 7 to 10 times; lube hose included
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh
- Output Shaft Type: Round shaft with 1-1/4" key
- Continuous Duty Torque: Up to 390 lb-ft
- Speed Ratios: Nine ratios available, including low and high speeds
- Lubrication Options: Pressure lube (P) or Wet Spline (W)
- Housing Material: Cast iron
- Bearing Caps: Ductile iron
