Chelsea PTO 288 Series Parts Manual

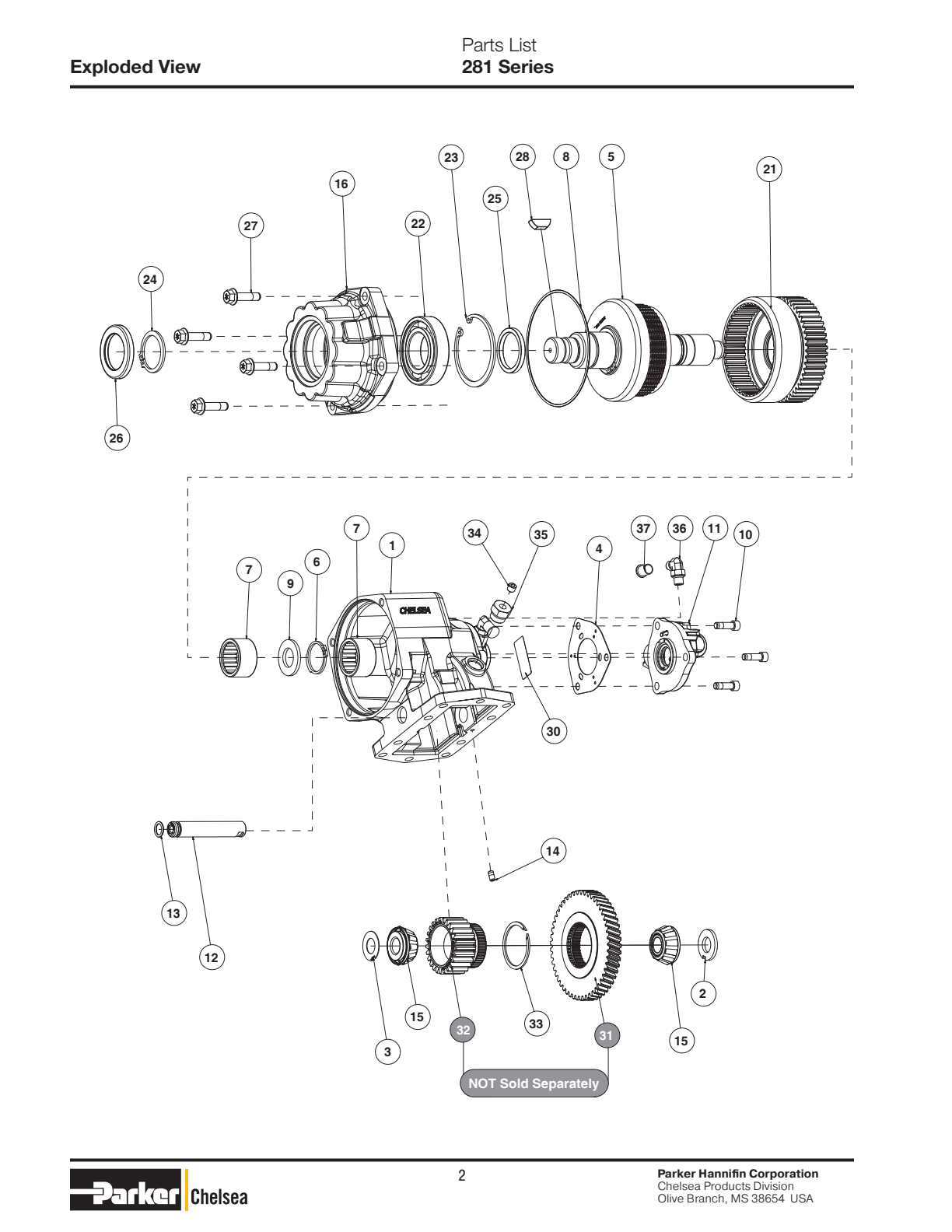

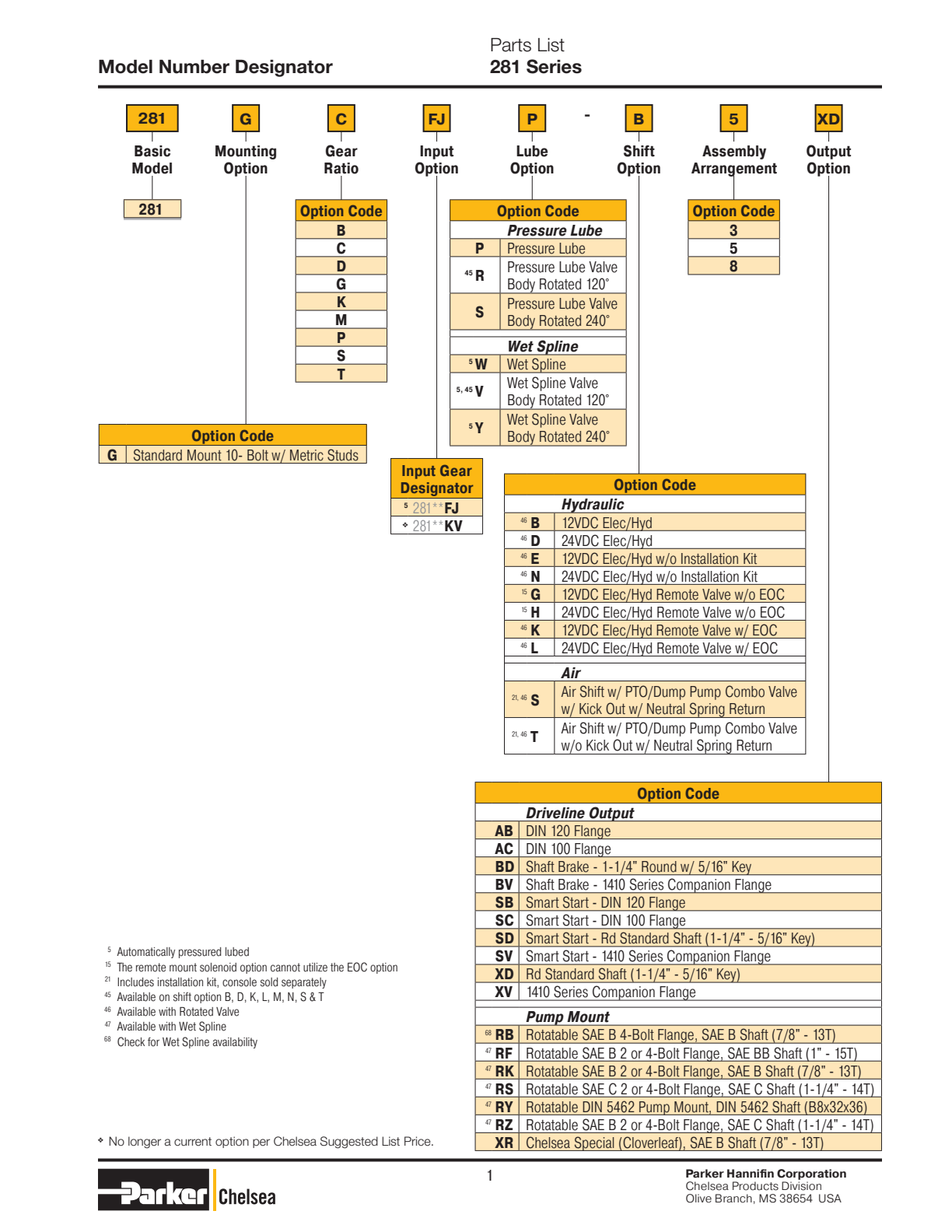

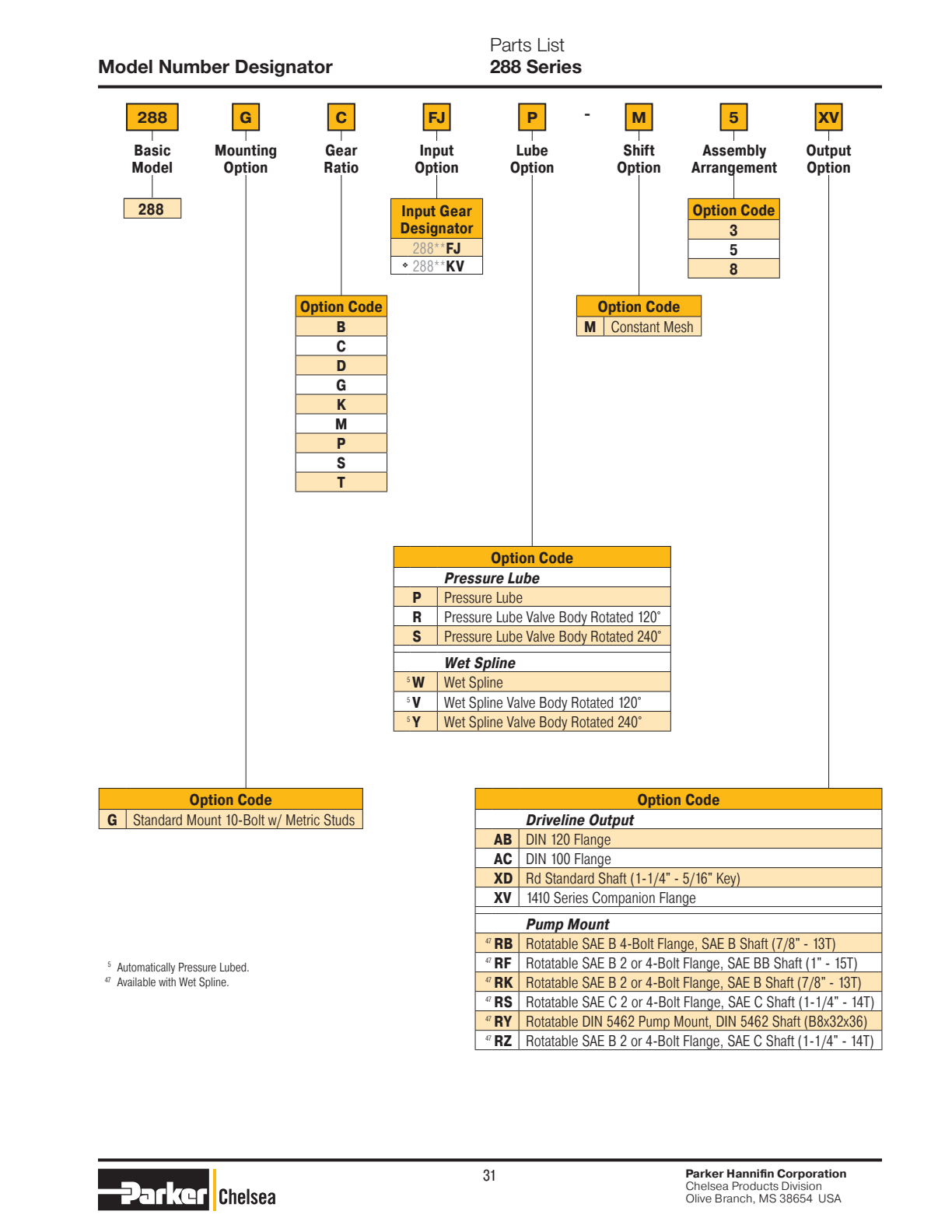

Model Number Designation
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price |
|---|

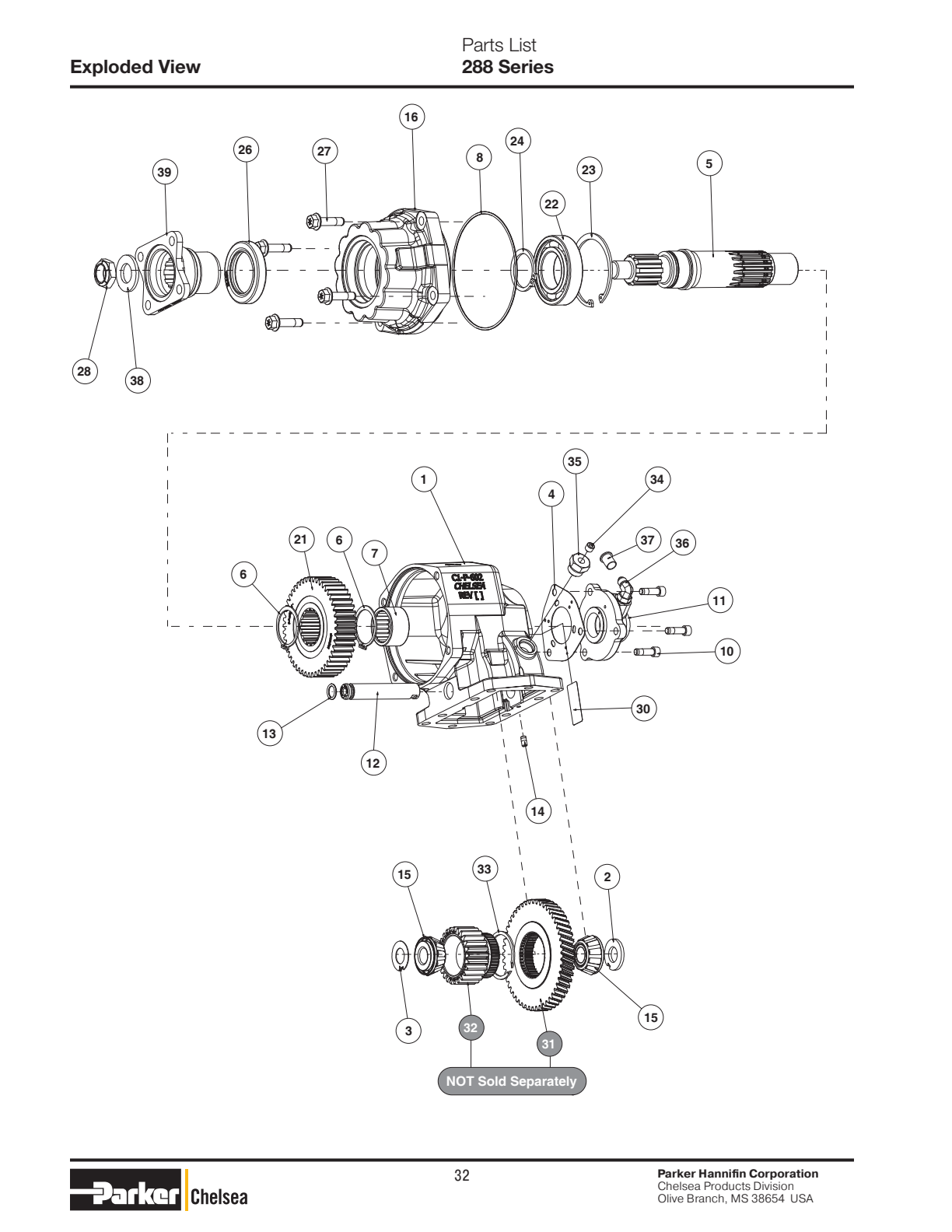

Parts List Bill Of Materials 281 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P813 | Housing (3 Arrangement With O-ring Groove) | 1 or | $582.66 | Add to Cart | |
| 1P814 | Housing (5 Arrangement With O-ring Groove) | 1 or | $650.60 | Add to Cart | ||
| 1P815 | Housing (8 Arrangement With O-ring Groove) | 1 | $650.60 | Add to Cart | ||
| 2 | 14P731 | Spacer (.762 " X 1 .500" X .150") (thickness As Required) | 1 | $10.38 | Add to Cart | |
| 14P732 | Spacer (.762 " X 1 .500" X .153") | 1 | $11.01 | Add to Cart | ||
| 14P733 | Spacer (.762 " X 1 .500" X .156") | 1 | $10.38 | Add to Cart | ||
| 3 | 31P102 | Thrust Washer (.754" X .440" X .030") | 1 | $3.72 | Add to Cart | |
| 4 | 22P112 | Valve Cap Gasket | 1 | $20.18 | Add to Cart | |
| 5 | 3301556X | Drive Shaft & Clutch Assembly (xd) | 1 or | $680.34 | Add to Cart | |
| 3301559X | Drive Shaft & Clutch Assembly W/ Smartstart (sd) | 1 or | $680.34 | Add to Cart | ||
| 330155X | Drive Shaft & Clutch Assembly For All Other Output Options (see Page 13) | 1 | — | Call for availability | ||
| 6 | 379746 | Lockring | 1 | $5.06 | Add to Cart | |
| 7 | 560972 | Bearing Needle Roller Assembly (1 .500" X 1 .875" X 1 .000") | 2 | $32.22 | Add to Cart | |
| 8 | 28P329 | O-ring (5 .487 " X .103") | 1 | $44.96 | Add to Cart | |
| 9 | 31P70 | Thrust Washer (1 .507 " X 2 .167 " X .094") | 1 | $13.66 | Add to Cart | |
| 10 | 3784476 | Socket Head Cap Screw (.312 " -18 X 1 .000") | 3 | $4.33 | Add to Cart | |
| 33017512X | 12VDC Valve Cap Assembly (fj Input Option) | 1 or | $419.56 | Add to Cart | ||
| 33017524X | 24VDC Valve Cap Assembly (fj Input Option) | 1 or | — | Call for availability | ||
| 32944212X | 12VDC Valve Cap Assembly (kv Input Option) | 1 or | $838.17 | Add to Cart | ||
| 32944224X | 24VDC Valve Cap Assembly (kv Input Option) | 1 or | $1,403.57 | Add to Cart | ||
| 329403X | Remote Valve Cap Assembly | 1 | $490.07 | Add to Cart | ||
| 12 | 9P106 | Idler Shaft (.750") | 1 | $127.66 | Add to Cart | |
| 13 | 28P191 | O-ring (.549" X .103") | 1 | $3.59 | Add to Cart | |
| 14 | 3784527 | Socket Head Set Screw (.250" -20 X .500") | 1 | $4.37 | Add to Cart | |
| 15 | 550439 | Bearing Tapered Cone (.750" X .598") | 2 or | $51.63 | Add to Cart | |
| 561006 | Bearing Tapered Cone (.750" X .655") (b Ratio Only) | 2 | $28.12 | Add to Cart | ||
| 16 | 21P932 | Bearing Cap (sd, Xd, Xv, Sv Only) | 1 or | $253.94 | Add to Cart | |
| SEEPAGES1221 | Output Options (all Other Outputs) | 1 | — | Call for availability | ||
| 21 | SEEPAGE6 | Output Gear | 1 | — | Call for availability | |
| 22 | 550311 | Ball Bearing (1 .770" X 3 .346" X .748") | 1 | $81.15 | Add to Cart | |
| 23 | 378263 | Internal Lockring | 1 | $19.87 | Add to Cart | |
| 24 | 379555 | Lockring | 1 | $23.13 | Add to Cart | |
| 25 | 4P187 | Spacer (1 .776" X 2 .200" X .239") | 1 | $53.28 | Add to Cart | |
| 26 | 28P267 | Oil Seal (2 .627 " X 1 .750" X .312 ") | 1 | $66.05 | Add to Cart | |
| 27 | 38056314 | Hex Flange Head Cap Screw (.375" -16 X 1 .500") (w/ 3/8" Bearing Cap Bolts) | 4 | $7.14 | Add to Cart | |
| 28 | 50000729 | Woodruff Key (sd & Xd Output Only) | 1 | $3.11 | Add to Cart | |
| 30 | 68P511 | Adhesive Label Not Sold Separately | 1 | — | Call for availability | |
| 31 | SEEPAGE6 | Input Gear | 1 | — | Call for availability | |
| 32 | SEEPAGE6 | Ratio Gear | 1 | — | Call for availability | |
| 33 | 379522 | Lockring | 1 | $5.76 | Add to Cart | |
| 34 | 379231 | Pipe Plug (.125" -27) (w/o Eoc Only) | 1 | $1.50 | Add to Cart | |
| 35 | 379242 | Straight Adapter (.125" -27 X .750" -16) (w/o Eco Only) Continued On Next 3 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | 1 | $22.23 | Add to Cart | |
| 36 | 379486 | 90° Elbow (.438" -20) | 1 | $28.97 | Add to Cart | |
| 37 | 3795642 | Thread Cap (.438") | 1 | $1.23 | Add to Cart | |
| 38 | 379243 | Speed Sensor (w/ Eoc Only) | 1 | $229.65 | Add to Cart | |
| 39 | 28P171 | O-ring (.644" X .087 ") (w/ Eoc Only) | 1 | $4.88 | Add to Cart | |
| SEEPAGES4453 | For Bill Of Materials For The Below Loose Parts. Service Kits | — | Call for availability | |||
| 32907164X | Bearing Kit (bv) | $419.23 | Add to Cart | |||
| 32907163X | Bearing Kit (ac, Xd, Xv, Rf, Rk, Rs, Ry, Rz) | $263.32 | Add to Cart | |||
| 32907180X | Gasket & Seal Kit | $216.89 | Add to Cart | |||
| 32907182X | Gasket & Seal Kit (bv) | $139.10 | Add to Cart | |||
| 330154X | Gear & Clutch Plates Kit (7-8 Clutch Pack) | $474.29 | Add to Cart | |||
| 32907183X | Hydraulic Valve O-ring Kit (bd, Bv) Stud Kits | $135.56 | Add to Cart | |||
| 717086X | Mounting Kit (fj Input Option 3 & 5 Arrangement) , | 1 or | $84.46 | Add to Cart | ||
| 7170107X | Mounting Kit (fj Input Option 8 Arrangement) , | 1 or | $122.41 | Add to Cart | ||
| 7170117X | Mounting Kit (kv Input Option 3 & 5 Arrangement) , | 1 or | $78.00 | Add to Cart | ||
| 7170118X | Mounting Kit (kv Input Option 8 Arrangement) , Installation Instruction Kit | 1 | $70.57 | Add to Cart | ||
| 3289489X | Gasket & Installation Instructions Kit Hydraulic Installation Kits | 1 | $42.19 | Add to Cart | ||
| 32902412X | 12VDC Installation Kit (fj Input Option B Shift) , | $272.23 | Add to Cart | |||
| 32902424X | 24VDC Installation Kit (fj Input Option D Shift) , | $304.69 | Add to Cart | |||
| 329076X | 12VDC W/ Eoc Installation Kit (fj Input Option K & L Shift) , | $152.30 | Add to Cart | |||
| 32907624X | 24VDC W/ Eoc Installation Kit (fj Input Option K & L Shift) , | — | Call for availability | |||
| 32923712X | 12VDC Remote Valve W/o Eoc Installation Kit (fj Input Option G Shift) , | $763.42 | Add to Cart | |||
| 32923724X | 24VDC Remote Valve W/o Eoc Installation Kit (fj Input Option H Shift) , | $763.42 | Add to Cart | |||
| 32944312X | 12VDC Installation Kit (kv Input Option B Shift) , | $320.03 | Add to Cart | |||
| 32944324X | 24VDC Installation Kit (kv Input Option D Shift) , | $291.36 | Add to Cart | |||
| 329444X | 12VDC & 24VDC W/ Eoc Installation Kit (kv Input Option K & L Shift) , | — | No longer available — call for replacement | |||
| 32944512X | 12VDC Remote Valve W/o Eoc Installation Kit (kv Input Option G Shift) , | $904.45 | Add to Cart | |||
| 32944524X | 24VDC Remote Valve W/o Eoc Installation Kit (kv Input Option H Shift) , | $1,555.39 | Add to Cart | |||
| 329650X | Electronic Overspeed Controls (k & L Shift) Continued On Next 4 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | Page | $1,358.05 | Add to Cart | ||
| 32838885X | Air Shift Installation Kit (s Shift) | $1,540.29 | Add to Cart | |||
| 32838886X | Air Shift Installation Kit (t Shift) Shifter Conversion Kits | — | No longer available — call for replacement | |||
| 32917512X | 12VDC Eoc Conversion Kit (fj Input Option) | $1,568.56 | Add to Cart | |||
| 32917524X | 24VDC Eoc Conversion Kit (fj Input Option) | $675.81 | Add to Cart | |||
| 32935412X | 12VDC Remote Valve Conversion Kit (all) | $930.53 | Add to Cart | |||
| 32935424X | 24VDC Remote Valve Conversion Kit (all) | $473.86 | Add to Cart | |||
| 32944812X | 12VDC Eoc Conversion Kit (kv Input Option) | — | No longer available — call for replacement | |||
| 32944824X | 24VDC Eoc Conversion Kit (kv Input Option) Hose Assemblies | — | No longer available — call for replacement | |||
| 3290573X | Lube Hose Assembly (g & H Shift) | 1 | $52.55 | Add to Cart | ||
| 3290574X | Lube & Clutch Hose Assembly (g & H Shift) | 1 | $45.49 | Add to Cart | ||
| 328075X | Exhaust Hose Assembly (g & H Shift) | 1 | $150.56 | Add to Cart | ||
| 3290755X | Pressure Hose Assembly (kv Input Option) | $167.36 | Add to Cart | |||
| 3291411X | Pressure Hose Assembly (fj Input Option) Output Conversion Kits | $156.32 | Add to Cart | |||
| SEEPAGE49 | Output Conversion Kits Bill Of Materials 5 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | — | Call for availability |
Gear Ratio Options 281 Series 3 And 5 Assembly 8 Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P14911X | 5-P-1491 50 5-P-1478 22 2-P-926 50 | $921.16 | Add to Cart | |||
| 5P14912X | 5-P-1491 50 5-P-1495 25 2-P-927 47 | $1,033.81 | Add to Cart | |||
| 5P14913X | 5-P-1491 50 5-P-1479 28 2-P-928 44 | $1,018.56 | Add to Cart | |||
| 5P14914X | 5-P-1491 50 5-P-1480 31 2-P-929 41 | $1,033.81 | Add to Cart | |||
| 5P14915X | 5-P-1491 50 5-P-1481 33 2-P-931 39 | $1,033.84 | Add to Cart | |||
| 5P14916X | 5-P-1491 50 5-P-1482 35 2-P-933 37 | $881.31 | Add to Cart | |||
| 5P14917X | 5-P-1491 50 5-P-1483 37 2-P-935 35 | $1,018.56 | Add to Cart | |||
| 5P14918X | 5-P-1491 50 5-P-1484 39 2-P-936 33 | $942.58 | Add to Cart | |||
| 5P14919X | 5-P-1491 50 5-P-1497 41 2-P-937 31 | $921.13 | Add to Cart | |||
| 5P14931X | 5-P-1493 45 5-P-1478 22 2-P-926 50 | $921.10 | Add to Cart | |||
| 5P14932X | 5-P-1493 45 5-P-1495 25 2-P-927 47 | $921.13 | Add to Cart | |||
| 5P14933X | 5-P-1493 45 5-P-1479 28 2-P-928 44 | $934.92 | Add to Cart | |||
| 5P14934X | 5-P-1493 45 5-P-1480 31 2-P-929 41 | $934.96 | Add to Cart | |||
| 5P14935X | 5-P-1493 45 5-P-1481 33 2-P-931 39 | $921.13 | Add to Cart | |||
| 5P14936X | 5-P-1493 45 5-P-1482 35 2-P-933 37 | $921.13 | Add to Cart | |||
| 5P14937X | 5-P-1493 45 5-P-1483 37 2-P-935 35 | $921.10 | Add to Cart | |||
| 5P14938X | 5-P-1493 45 5-P-1484 39 2-P-936 33 | $921.13 | Add to Cart | |||
| 5P14939X | 5-P-1493 45 5-P-1497 41 2-P-937 31 Not Sold Separately No. Output No. No. Input Ratio Teeth Teeth Teeth Gear (21) Gear (31) Gear (32) C A B | $1,018.56 | Add to Cart | |||
| 5P149110X | 5-P-1491 50 5-P-1485 42 2-P-936 33 | $921.13 | Add to Cart | |||
| 5P149310X | 5-P-1493 45 5-P-1485 42 2-P-936 33 6 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | $921.10 | Add to Cart |

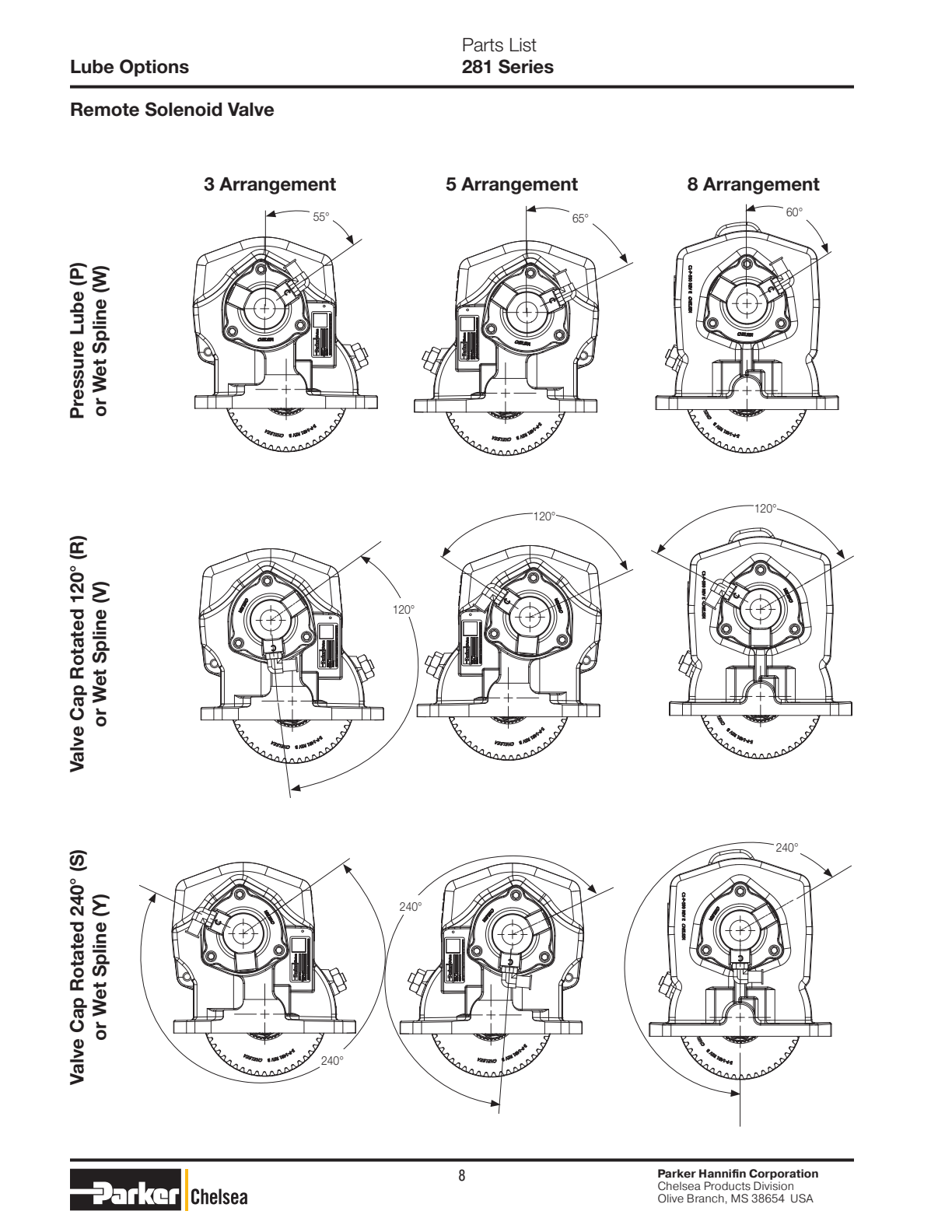

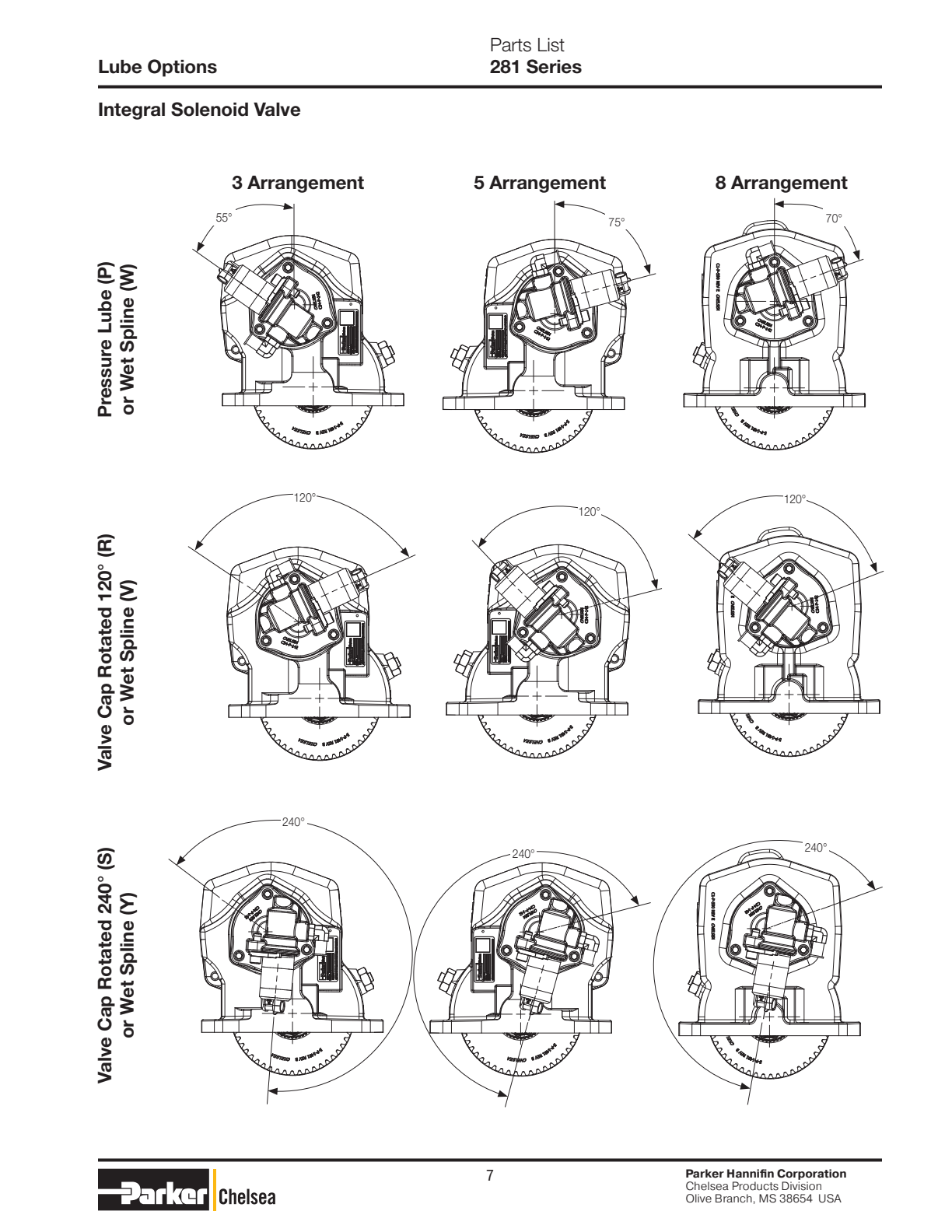

Lube Options 281 Series Wet Spline Installation Rb, Rf, Rk, Rs, Ry & Rz Output Options (Sk-508 Rev C)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 385004 | 385004 (.438" -20) Transmission 36.00" Fitting 385006 (33 .50") | $10.91 | Add to Cart | |||
| 385003 | 385004 (.438" -20) 329057-3X 26.00" - 329057-4X 16.75" - 329057-5X 13 .00" - 385006 (15 .25") | $12.24 | Add to Cart | |||
| 379627 | Male Branch Tee Wet Spline Installation Kits Output Kit Number Connect To 379627 Rb 329959X Rk 329700X Rf 329700X Rs 329744X Ry 329742X Rz 329700X | $20.06 | Add to Cart | |||
| 3296991X | Hose Assembly Note: Not All Output Options May Be Available On Series Listed Above Flange Rb 21 -P-894 Rf/rk/rz 21 -P-731 35-P-101 Gasket Rs 21 -P-769 Ry 21 -P-771 | $85.54 | Add to Cart | |||
| 35P104 | $33.17 | Add to Cart | ||||
| 35P102 | $22.65 | Add to Cart | ||||
| 28P245 | $45.00 | Add to Cart | ||||
| 35P111 | 4 X 378447-8 Bearing Cap Socket Head Cap Screw 21 -P-934 (3/8" Bearing Cap Bolt Holes Used W/ O-ring ) Torque 24-28 Lb-ft [33-39 N-m] 9 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | $114.76 | Add to Cart |
Shift Options 281 Series Hydraulic Valve Cap Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 33017512X | Valve & Cap Assembly (12VDC) (fj Gear Only) | 1 or | $419.56 | Add to Cart | ||
| 33017524X | Valve & Cap Assembly (24VDC) (fj Gear Only) | 1 or | — | Call for availability | ||
| 32944212X | Valve & Cap Assembly (12VDC) (kv Gear Only) | 1 or | $838.17 | Add to Cart | ||
| 32944224X | Valve & Cap Assembly (24VDC) (kv Gear Only) | 1 | $1,403.57 | Add to Cart | ||
| 34P357 | Valve Cap (330175-12X & 330175-24X) | 1 or | — | Call for availability | ||
| 34P143 | Valve Cap (329442-12X & 329442-24X) | 1 | $114.96 | Add to Cart | ||
| 28P119 | Oil Seal (high Pressure) | 1 | $26.61 | Add to Cart | ||
| 378811 | Washer | 1 | $5.21 | Add to Cart | ||
| 378849 | Snap Ring | 1 | $2.12 | Add to Cart | ||
| 3784476 | Socket Head Cap Screw (.312 " -18 X 1 .000") | 1 | $4.33 | Add to Cart | ||
| 379995 | Clamp (kv) Included With 379993 Valve | 1 or | — | Call for availability | ||
| 380012 | Clamp (fj) Used W/ 38001 1 Valve | 1 | — | Call for availability | ||
| 380124 | Clamp (fj) Used W/ 380123 Valve | 1 | — | Call for availability | ||
| 38012312 | Hydraulic Valve (12VDC) (fj) (white Connector Top) (new Style) | 1 or | $222.19 | Add to Cart | ||
| 38012324 | Hydraulic Valve (24VDC) (fj) (black Connector Top) (new Style) | 1 or | $213.64 | Add to Cart | ||
| 38001112 | Hydraulic Valve (12VDC) (fj) (white Side Connector) N .l.a. Use 330175-12 | 1 or | $222.19 | Superseded by 38012312Add to Cart | ||
| 38001124 | Hydraulic Valve (24VDC) (fj) (black Side Connector) N .l.a. Use 330175-24 | 1 or | $213.64 | Superseded by 38012324Add to Cart | ||
| 37999312 | Hydraulic Valve (12VDC) (kv) (white Connector) | 1 or | $1,051.13 | Add to Cart | ||
| 37999324 | Hydraulic Valve (24VDC) (kv) (black Connector) | 1 | $1,322.81 | Add to Cart | ||
| 32907183X | Hydraulic Solenoid Valve O-ring Service Kit. 329403X - Description | 1 | $135.56 | Add to Cart | ||
| 1 | 21P701 | Cap Seal | 1 or | $421.99 | Add to Cart | |
| 2 | 28P119 | Oil Seal (1 .379" X .875" X .250") | 1 | $26.61 | Add to Cart | |
| 3 | 378811 | Washer | 1 | $5.21 | Add to Cart | |
| 4 | 378849 | Lockring | 1 | $2.12 | Add to Cart | |
| 5 | 5008976 | Shipping Plug 10 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | 2 | — | Call for availability |

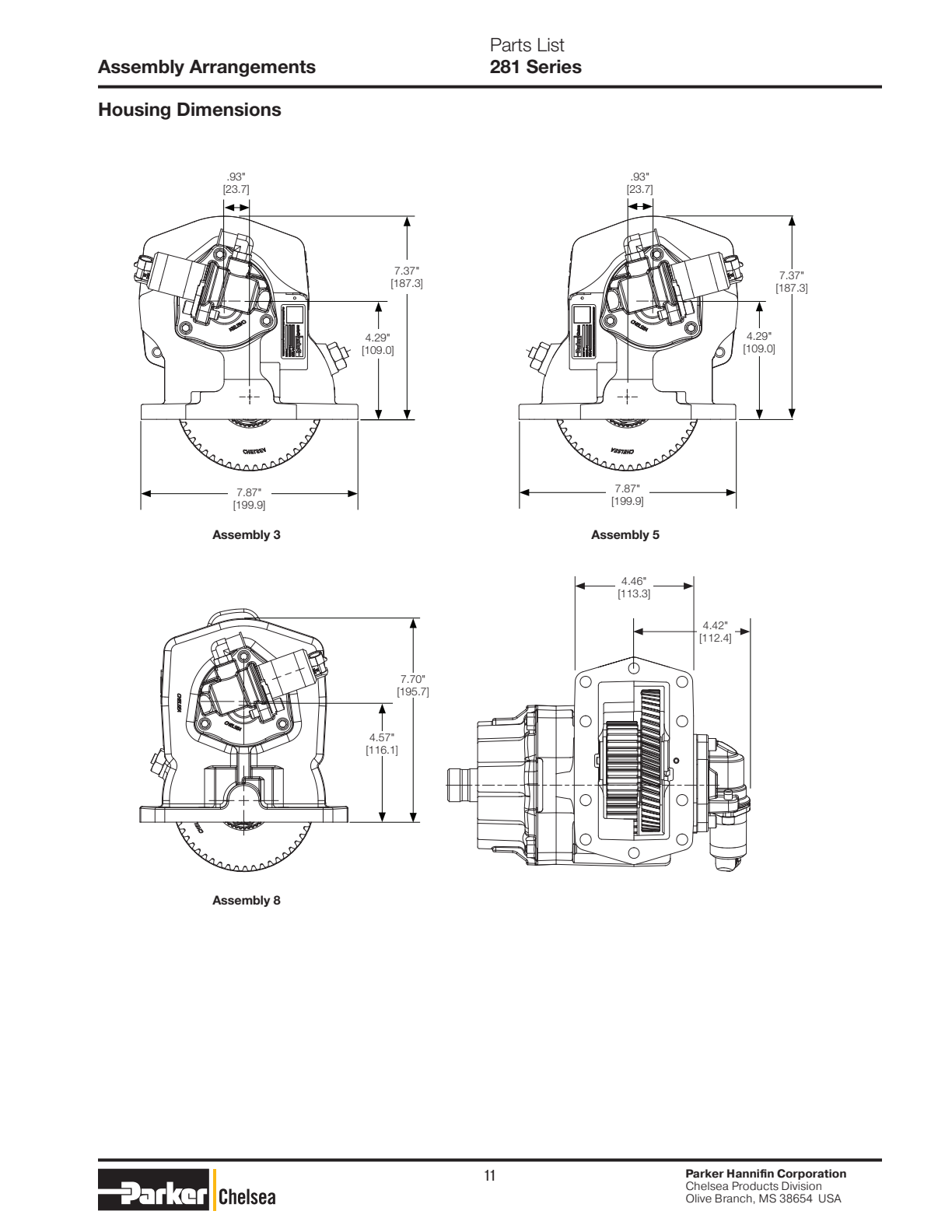

Output Options 281 Series Direct Mount Pump Flange & Shaft Dimensions Companion Flange Mount & Shaft Dimensions
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 50001213 | Unc 4 4 .000" .406" .497 " 1 .872 " 7 .643 " 7/8 " 13T Spline - 2 Unc 4 .000" .406" .592 " 2 .060" 7 .643 " 1 " 15T Spline 4 - 2 Unc 4 .000" .406" .497 " 1 .872 " 7 .643 " 7/8 " 13T Spline 4 - | — | Call for availability | |||
| 7125581 | 1 Unc 2 5 .003 " .531 " .730" 2 .700" 7 .671 " 1 -1/4 " 14T Spline | — | Call for availability | |||
| 63751213 | Unc 4 - | — | Call for availability | |||
| 4454M121 | .75 4 3 .152 " .700" .581 " 2 .281 " 7 .266" B8x32x36 2 Unc 4 .000" .406" .730" 2 .700" 7 .643 " 1 -1/4 " 14T Spline 4 - Mount & Shaft Dimensions Holes Fc Fd Fe Ff Fh Output Shaft No. Male/female Pilot Face To Face Face To Equally Pilot Depth End Dimensions Thru Center Spaced Of Flange Hole Of Pto | — | Call for availability | |||
| 39960404 | " 8 2 .952 " .093 " 8 .009 " 1 -1/2 " 10T Spline | — | Call for availability | |||
| 33070323 | " 6 2 .243 " .080" 7 .978 " 1 -1/4 " Rd – – 9 .058 " 1 -1/4 " Rd Keyed (5/16") | — | Call for availability | |||
| 37500440 | 4 2 .751 " .083 " 8 .986" 1 -1/2 " 10T Spline 6.570" 1 -1/4 " Keyed | — | Call for availability |
Output Options 281 Series Drive Shaft & Clutch Assembly 330155-*X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3P1065 | Output Shaft 10T Straight (330155-1X) | 1 or | $761.33 | Add to Cart | ||
| 3P1066 | Output Shaft (1 -1/4" 14T) (330155-2X) | 1 or | $750.06 | Add to Cart | ||
| 3P1067 | Output Shaft Din 8T (330155-3X) | 1 or | $761.33 | Add to Cart | ||
| 3P1126 | Output Shaft (7/8" 13T) (330155-4X) | 1 or | $790.98 | Add to Cart | ||
| 3P1127 | Output Shaft (1 " 13T) (330155-5X) | 1 or | $962.89 | Add to Cart | ||
| 3P1125 | Output Shaft (1 .250") Keyed (330155-6X) | 1 or | $420.57 | Add to Cart | ||
| 3P1161 | Output Shaft Straight W/ Smartstart 10T (330155-8X) | 1 or | $1,043.30 | Add to Cart | ||
| 3P1156 | Output Shaft (1 .250") Keyed W/ Smartstart (330155-9X) | 1 or | $1,054.66 | Add to Cart | ||
| 3P1216 | Output Shaft (.875" 13T) Xk Us Military Special (330155-10X) | 1 | — | Call for availability | ||
| 2 | 28P285 | O-ring (1 .597 " X .103") | 2 | $12.64 | Add to Cart | |
| 3 | 28P178 | O-ring (4.359" X .138") | 1 | $41.94 | Add to Cart | |
| 4 | 380051 | Back Up Cylinder Clutch | 1 | — | No longer available — call for replacement | |
| 5 | 3801101 | Clutch Piston | 1 | $392.01 | Add to Cart | |
| 6 | 379555 | Lockring | 1 | $23.13 | Add to Cart | |
| 7 | 380069 | Lockring | 1 | $6.90 | Add to Cart | |
| 8 | 330154X | Gear & Plates Kit | 1 | $474.29 | Add to Cart | |
| 379485 | Friction Disc. | 8 | $14.45 | Add to Cart | ||
| 379595 | Clutch Plate | 7 | $14.47 | Add to Cart | ||
| 2P1038 | Inner Gear Clutch 36T | 1 | — | Call for availability | ||
| 9 | 37P72 | Spring (2 .140" X .941 ") | 1 | $26.96 | Add to Cart | |
| 10 | 4P213 | Spacer (1 .800" X 2 .070" X .330") 13 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | 1 | $3.54 | Add to Cart |
Output Options 281 Series Drive Shaft & Clutch Assembly 330156X Shaft Brake Output Bd, Bv
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3P1072 | Output Shaft 10T Straight (330156X) (bd, Bv) | 1 or | $647.72 | Add to Cart | |
| 3P1141 | Output Shaft (1 -1/4" Keyed) (330156-1X) (bd, Bv) | 1 | $475.51 | Add to Cart | ||
| 2 | 28P244 | O-ring (1 .174" X .103") | 2 | $5.03 | Add to Cart | |
| 3 | 380069 | Lockring | 1 | $6.90 | Add to Cart | |
| 4 | 378576 | Lockring | 1 | $3.16 | Add to Cart | |
| 5 | 3291791X | Piston & Back-up Cylinder Assembly | 1 | $268.17 | Add to Cart | |
| 3793231 | Cylinder Clutch Back-up | 1 | $102.10 | Add to Cart | ||
| 3800571 | Piston Clutch Hydraulic. | 1 | $85.93 | Add to Cart | ||
| 28P178 | O-ring (4.359" X .138") | 1 | $41.94 | Add to Cart | ||
| 6 | 330154X | Gear & Plates Kit | 1 | $474.29 | Add to Cart | |
| 379485 | Friction Disc. | 8 | $14.45 | Add to Cart | ||
| 379595 | Clutch Plate | 7 | $14.47 | Add to Cart | ||
| 2P1038 | Output Gear | 1 | — | Call for availability | ||
| 7 | 37P39 | Spring (2 .552 " X 1 .985") 14 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | 1 | $6.55 | Add to Cart |
Output Options 281 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 329723X | Bv Assembly Drive Shaft & Clutch (3-P-1072 Shaft) | 1 | $996.04 | Add to Cart | |
| 2 | 22P151 | Gasket. | 1 | $15.38 | Add to Cart | |
| 3 | 21P884 | Bearing Cap (w/ 3/8" Bearing Cap Bolts) | 1 | $1,216.03 | Add to Cart | |
| 4 | 550010 | Bearing Ball (1 .378" X 2 .834" X .669") | 1 | $47.93 | Add to Cart | |
| 5 | 378895 | Lockring | 1 | $7.41 | Add to Cart | |
| 6 | 378576 | Lockring | 1 | $3.16 | Add to Cart | |
| 7 | 38056328 | Hex Flange Head Cap Screw (.375" -16 X 3 .500") (w/ 3/8" Bearing Cap Bolts) | 4 | $11.07 | Add to Cart | |
| 8 | 380081 | 1410 Series Companion Flange (bv) | 1 | $558.76 | Add to Cart | |
| 9 | 23P73 | Drag Brake Bearing Cap Spacer (w/ 3/8" Bearing Cap Bolts W/ O-ring) | 1 | $582.70 | Add to Cart | |
| 10 | 28P212 | Oil Seal (2 .506" X 1 .750" X .315") | 1 | $24.02 | Add to Cart | |
| 1 | 131P113 | Thrust Washer (1 .385" X 3 .125" X .125") | 1 | — | Call for availability | |
| 12 | 329410X | Brake Assembly | 1 | $387.98 | Add to Cart | |
| 13 | 379977 | Spring Pin | 1 | $3.85 | Add to Cart | |
| 14 | 4P130 | Washer | 1 | $67.32 | Add to Cart | |
| 15 | 4P186 | Spacer (1 .385" X 1 .750" X .365") | 1 | $31.43 | Add to Cart | |
| 16 | 3784357 | Hex Head Cap Screw (.625" -1 1 X 1 .250") | 1 | $11.93 | Add to Cart | |
| 17 | 28P244 | O-ring (1 .174" X .103") | 2 | $5.03 | Add to Cart | |
| 18 | 37P60 | Spring (2 .531 " X 2 .130" X .172 ") | 1 | $36.98 | Add to Cart | |
| 19 | 28P329 | O-ring (5 .487 " X .103 ") | 1 | $44.96 | Add to Cart | |
| 1 | 3297231X | Bd Assembly Drive Shaft & Clutch (3-P-1141 Shaft) | 1 | $996.04 | Add to Cart | |
| 3 | 21P888 | Bearing Cap (w/ 3/8" Bearing Cap Bolts) | 1 | $212.98 | Add to Cart | |
| 10 | 28P225 | Oil Seal (2 .004" X 1 .375" X .315") | 1 | $19.01 | Add to Cart |
Output Options 281 Series Bill Of Materials Driveline Output
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 8X40 | — | Call for availability | ||||
| 103089 | Part Number Description 330155-1X Drive Shaft & Clutch Assembly (3-P-1065 Shaft) 21 -P-932 Bearing Cap 28-P-211 Oil Seal (3 .001 " X 2 .000" X .375") 379558 Companion Flange Din 120 380076-13 Hardened Flat Washer (.950" X 1 .762 " X .157 ") " 380486 Thin Nylon Lock Nut (.875" -14) 329160-130X Conversion Kit (converts Xd To Ab) Ac Output Options 7.95" [201 .9] Din 100 Flange | Qty. | — | Call for availability | ||
| 6X32 | — | Call for availability | ||||
| 82082 | Part Number Description 330155-1X Drive Shaft & Clutch Assembly (3-P-1065 Shaft) 21 -P-932 Bearing Cap 28-P-211 Oil Seal (3 .001 " X 2 .000" X .375") 379742 Companion Flange Din 100 380076-13 Hardened Flat Washer (.950" X 1 .762 " X .157 ") 380486 Thin Nylon Lock Nut (.875" -14) 329160-134X Conversion Kit (converts Xd To Ac) Bd Output Option Drag Brake Rd Standard Shaft (1 -1/4" Dia W/ 5/16" Key) - Part Number Description 330156-1X Drive Shaft & Clutch Assembly. | Qty. | — | Call for availability | ||
| TO3540LBFT | 9.06" 22-P-151 Shim Gasket [230.1] 21 -P-888 Drag Brake Bearing Cap 550010 Ball Bearing (1 .378" X 2 .834" X .669") | 1 | — | Call for availability | ||
| 35357 | 378895 Lockring | 1 | — | Call for availability | ||
| 35103 | 378576 Lockring 23-P-73 Bearing Cap Drag Brake Spacer. 28-P-225 Oil Seal (2 .004" X 1 .375" X .315") 31 -P-113 Thrust Washer (1 .385" X 3 .125" X .125") | 2 | — | Call for availability | ||
| 31725 | — | Call for availability | ||||
| 31712 | 329410X Brake Assembly 379977 Spring Pin (.187 " X .625") 4-P-186 Spacer (1 .385" X 1 .750" X .365") 28-P-244 O-ring (1 .174" X .103") 37-P-60 Spring (2 .531 " X 2 .130" X .172 ") 28-P-329 O-ring (5 .487 " X .103") 329160-136X Conversion Kit (converts Xd To Bd) 16 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | 1 | — | Call for availability |
Output Options 281 Series Bill Of Materials Pump Mount (Cont’D)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| RS713 | [18.5] (3-P-1066 Shaft) 21 -P-934 Bearing Cap (wet Spline Only) 21 -P-933 Bearing Cap 28-P-267 Oil Seal (2 .627 " X 1 .750" X .312 ") 5.004" 5.002" 328170-216X Cap Screw Bag Kit (378447-8 Qty. 4) | 1 | — | Call for availability | ||
| 12710 | — | Call for availability | ||||
| 12705 | 35-P-101 Wet Spline Bearing Cap Gasket (ships W/ Kit) Pilot 21 -P-769 Pump Flange (ship Loose W/ Unit) Wet Spline Loose Parts 329699-1X Hose Assembly | 1 | — | Call for availability | ||
| RS1619 | 329744X Wet Spline Loose Parts Kit .53" [13.5] 329654X Cover Kit | 1 | — | Call for availability | ||
| 2X5811UNC2B | 329160-158X Conversion Kit (converts Xd To Rs Wet Spline) 329160-159X Conversion Kit (converts Xd To Rs) Ry Output Option Rotatable Din 5462 Pump Mount, Din 5462 Shaft (B8x32x36) Part Number Description 330155-3X Drive Shaft & Clutch Assembly 7.24" | Qty. | — | Call for availability | ||
| 4XM12X1756H | [183.9] (3-P-1067 Shaft) 21 -P-933 Bearing Cap 21 -P-934 Bearing Cap (wet Spline Only) 28-P-267 Oil Seal (2 .627 " X 1 .750" X .312 ") 328170-216X Cap Screw Bag Kit (378447-8 Qty. 4) | 1 | — | Call for availability | ||
| 8003153 | 35-P-101 Wet Spline Bearing Cap Gasket (ships W/ Kit) " 21 -P-771 Pump Flange (ship Loose W/ Unit) Pilot Wet Spline Loose Parts 329699-1X Assembly Hose 329742X Wet Spline Loose Parts Kit 329659X Cover Kit 329160-160X Conversion Kit (converts Xd To Ry) 329160-161X Conversion Kit (converts Xd To Ry Wet Spline) 20 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | 1 | — | Call for availability | ||
| RZ1461 | 330155-2X Drive Shaft & Clutch Assembly .73" [18.5] (3-P-1066 Shaft) 21 -P-933 Bearing Cap 21 -P-934 Bearing Cap (wet Spline Only) 4.004" 28-P-267 Oil Seal (2 .627 " X 1 .750" X .312 ") 4.002" [101 .70] 328170-216X Cap Screw Bag Kit (378447-8 Qty. 4) [101 .65] Pilot 35-P-101 Wet Spline Bearing Cap Gasket (ships W/ Kit) 21 -P-731 Pump Flange (ship Loose W/ Unit) Wet Spline Loose Parts .41 " 329699-1X Hose Assembly [10.3] 329700X Wet Spline Loose Parts Kit 329658X Cover Kit | 1 | — | Call for availability | ||
| 2X15 | 329160-162X Conversion Kit (converts Xd To Rz Wet 329160-163X Conversion Kit (converts Xd To Rz) 7.15" Xr Output Option [181 .5] 1 .38" Parker P16 S Flange, Sae B Shaft (7/8" 13T) - [34.9] | Spline) | — | Call for availability | ||
| XR66 | .20" Part Number Description [5.0] 330155-4X Drive Shaft & Clutch Assembly (3-P-1 126 Shaft) 21 -P-933 Bearing Cap 28-P-267 Oil Seal (2 .627 " X 1 .750" X .312 ") 380563-14 Cap Screw (.375" -16 X 1 .500") 4-P-209 Spacer (xr) (included In Kit) 2.753" 2.751 " 329906X Pump Installation Kit (xr) [69.93] [69.88] Pilot 1 .18" [29.9] All Parts Listed Above. See Page 49 For Conversion Kit Boms. 21 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 , | Qty. | — | Call for availability |

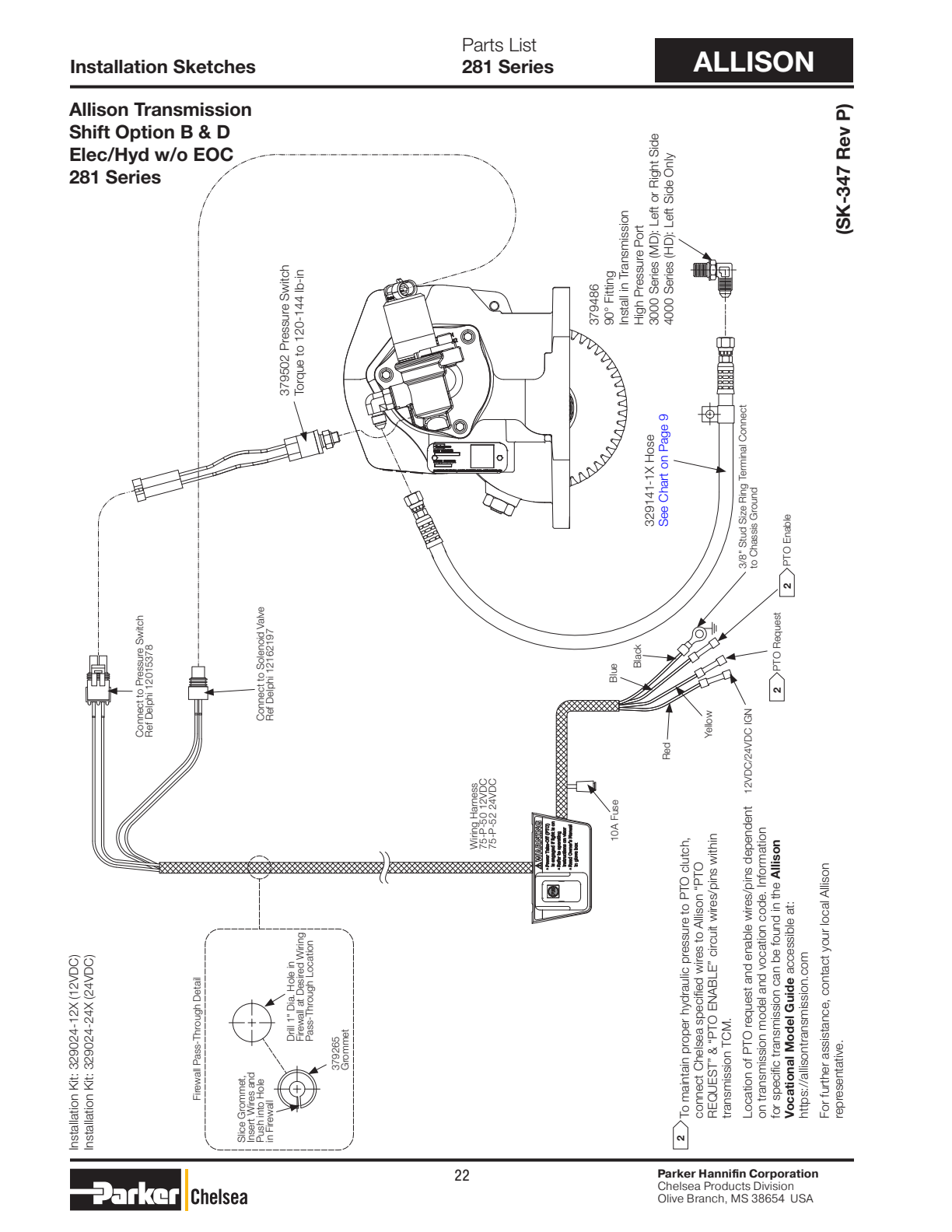

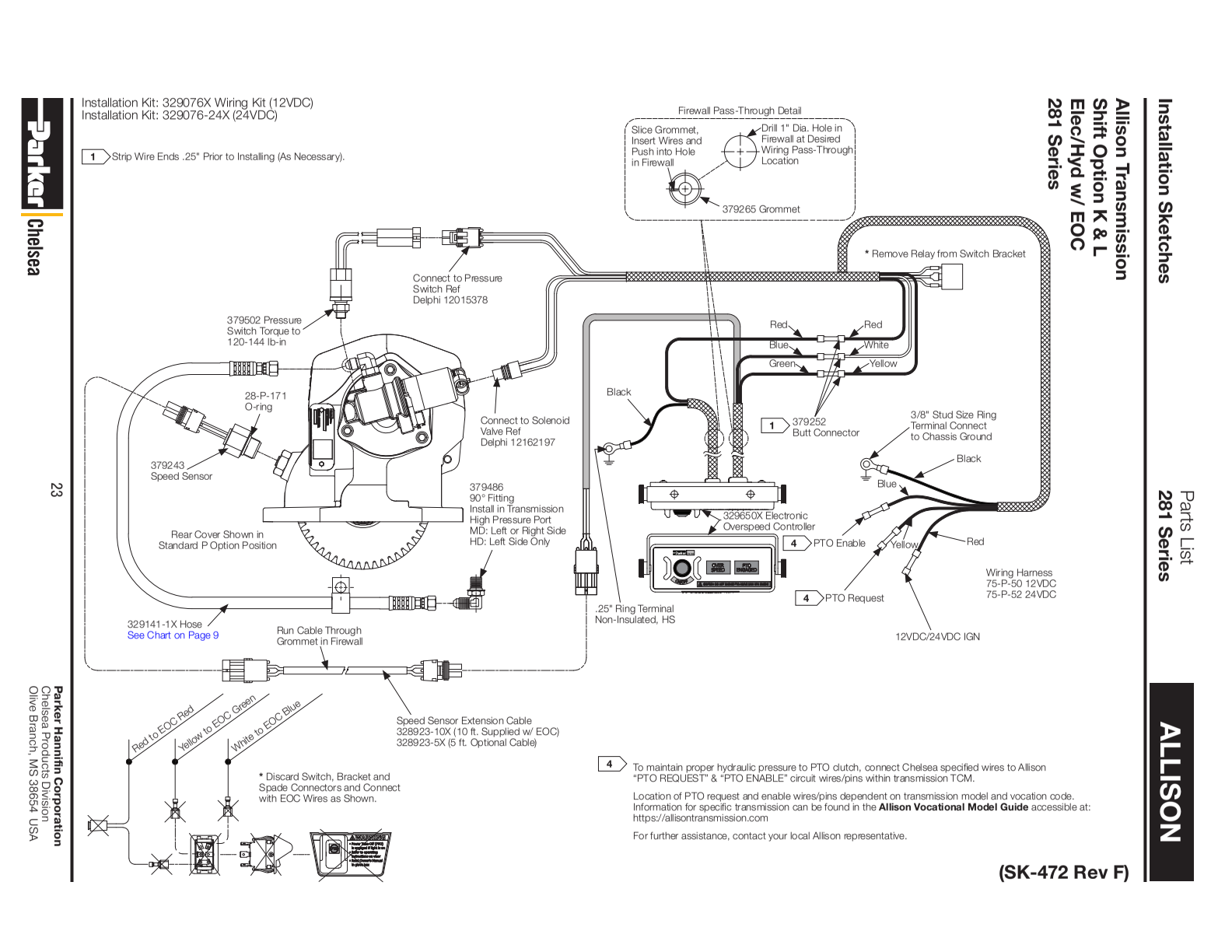

Allison
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5EMO | N I D P - P - L L Ye / 5 6 B L 6 I R O - - C T 8 4 L E 5 I W M 5 5 D U 9 1 7 7 V N 7 ° 0 - | — | Call for availability | |||
| 7GRSS | 2 L E 3 9 0 2 1 V 1 E I W O E 2 0 R U H 0 S T S U 5 S S C 1 N E U F 4 9 E I T W 0 0 O Q A 3 7 P R S 8 I N To R 0 3 U E 1 G R 1 N U 7 I T S 8 9 I F T S 7 7 E 3 3 E P R 5 Te O F E 0 T R 2 T C 1 E H I N C H N I T P O W L E C S D R T O X L Y Y C 4 B L B E 7 - M M N N 5 E S E 2 O 0 S X S 5 C 9 2 A 5 A S 2 9 T 3 E 7 7 T U H S 0 E 3 B C O 8 S T U H 2 O L 3 H C O 2 T . P | — | Call for availability | |||
| CSE2 | S O | — | Call for availability | |||
| NC25 | D A T | — | Call for availability | |||
| OCA9 | E O L I S N D E | — | Call for availability | |||
| ITA7 | L G F O Y S W O I E N S 1 7 R E I S T R S Y I W R I T T T A R S 1 - E R 7 - H E 6 C R I S P O H T L N I F P A 3 T 5 S 7 - S M G O E E S E 9 1 P A 3 Wa 5 G S N E R I R E L V A R A S O 7 D 0 0 4 N A U R D Va L F D H 3 A 5 K 0 0 I T G Tr S S O S I D 0 E X X C O 5 N U 6 I N N E R Ft Ft I O 8 D U 5 2 L X O 8 I T T I P L E L E N 2 9 L C 7 2 M 4 F L L A H E 7 N 0 9 ° T S G D : D : L O 3 ( I 8 2 3 7 0 9 N I H M H | — | Call for availability | |||
| NISIO7N | S 3 I | — | Call for availability | |||
| OSTA9NO | O | s | — | Call for availability | ||
| ISIMC1C | T | n o | — | Call for availability | ||
| ISMSVO26 | ) S R | i t | — | Call for availability | ||
| SA21SE | O | c | — | Call for availability | ||
| NATRNO1N | T C B E E N U N L O O E S C T O T P H T U 8 G N T O X ( B E 2 E 5 I T K E T 1 1 - V - V R 2 N U C O L I - 6 L Va 6 L Va 9 E 9 O A 1 4 8 6 8 6 4 4 T P 7 M B R 1 9 D 9 D 9 A 3 9 7 I O 7 I O 7 D 2 3 T 3 N 3 N 3 A S U E E A L O L O H S S E X C C D D E V V V Y L Va 2 4 L B 1 2 T U X M 0 N E S N 3 E S 0 L E Te A - S 7 V Tr 7 5 A 9 I W N 0 E 7 S R U M 9 S 3 O 2 O F R 3 H L I O 24 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | i l p | — | Call for availability | ||
| KIT32838885XSSHIFTER | Grommet In Firewall | — | Call for availability | |||
| KIT32838886XTSHIFTER | Slice Grommet Insert In Hole In Firewall 379254-17 14 Awg Wire, Blue Of Cab 8 1 Butt Connector Black Wire Red Wire 379257 | — | Call for availability | |||
| ACCEPTS10 | Screw Splice Connector 3X Fork Connector 379504 Valve Black Wire Red Wire Connector And Wire Assembly Red Wire Pressure Switch Red Wire Female Connector 379900 Fuse Holder Assy W/ 10A Fuse To Pto Port Positive Terminal Of Air Control Ignition Or Battery Valve 379257 379664 Red Led Splice Connector 12VDC Indicator Light Assembly 379486 379664 Red Led 90° Fitting 12VDC Indicator Install In Transmission Light Assembly Connect Black High Pressure Port Cab Wire From 379504 Md: Left Or Right Side Hd: Left Side Only Air Shifter Valve (bottom View) 329214X Or 329316X Red Red Wire From 378414 379900 Harness Pressure Protection Valve With Fuse Opens At 70 Psi Per Chart 379042 On Page 9 Male Connector 379305 Hex Nipple Pressure Air Supply Female 5 379044-6 379044-6 1/4" Nylon Tubing 1/4" Nylon Tubing | Wire to Blue | — | Call for availability | ||
| WIREENDS25PRIOR | To Installing (as Necessary). 379042 379042 Must Be Maintained Torque To 120-144 Lb-in Male Connector Male Connector To Exhaust Outside Of The Cab. Nylon Tubing Avoid Sharp Angles, Exhaust And Manifold Pressure To Pto Clutch, Connect Chelsea Specified Wire To Allison With Transmission Tcm. Cut Off Crimped On Fork If Not Needed. To Dump Pump Wire/pin Is Dependent On Transmission Vocation Code. Shifter Raise Port Local Allison Representative Or Contact Allison To Dump Pump Shifter Lower Port Terminal And Crimp. Pressure Switch As Shown. To Protect From An Electrical Short. Fitted Inside A Waterproof Housing When Installed Outside The Driver’s Cab. To The Air Supply. Do Not Use Tubing Between The Air Supply And The Pressure Protection Valve. 25 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 , | USA | — | Call for availability |

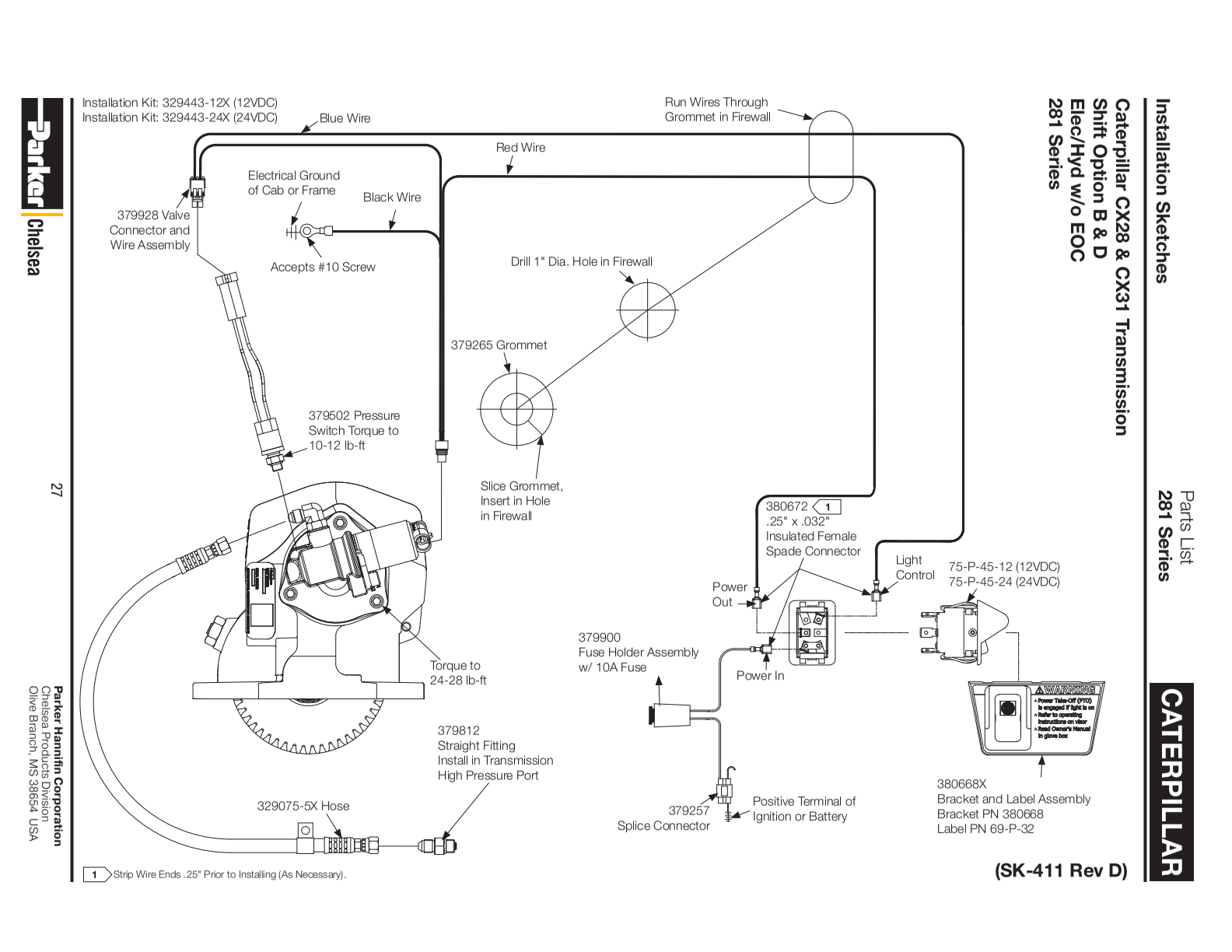

Caterpillar
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| CX31 | CX28 For Clarity) High Pressure Connections Are -4 O-ring Boss Hose Chart High Oil Pto Valve Pto Trans. Trans.-pto Pto Location Pressure Location Fitting Fitting Valve Hose Location Driver (lhs) Lhs 329075-1X Driver (lhs) Rear 379812 329075-5X Attached 379486 Pass (rhs) Lhs 329075-2X . Pass (rhs) Rear 379486 329075-5X . Driver (lhs) Lhs 329130-6X Driver (lhs) Rear 329130-6X Remote 379486 379812 Pass (rhs) Lhs 329130-6X . Pass (rhs) Rear 329130-6X . 8 O ’clock Position , Transmission 1 O ’clock Position , | — | Call for availability | |||
| FITTING379486 | And One Transmission Fitting 379812 Are Included With The Pto Unit . | — | Call for availability | |||
| 379486INTRANSMISSION | It Must Be Purchased Separately. On Left Hand (driver) Side Oil Port Due To Transmission Interference . Fitting For Rear Location Route Hose Along Right Hand , And Under Transmission Output Yoke . 26 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | — | Call for availability | |||
| CX28CX31 | Transmission E H B C T T I W S U S M E 2 R S N . 0 U E 5 S U I - 9 S N L Va B E O W L 7 R I S T E 4 3 P S O R R E 4 I M P C U 1 S Q - G S E R 0 N N R To 2 I T A U 1 I F T Tr S S N : D E E E 2 H T N R R O N 1 G I P I W I I A 8 I L L A H T T 9 A T G K U N 7 T R S I C A I A 3 S N H | — | Call for availability | |||
| 8CIR | A C M I L B | — | Call for availability | |||
| 7LVAN | Ft O - T B E L U 8 Q 2 H R - To 4 2 I H T O R S N E S D E E 1 E P 7 R S 1 G I W P - N - I R D 8 - E 2 O R L L A W E R E I W R I F E N U I L B E U O R L B T ) C C , E ) " ) O E N N 0 " 8 E I W R N E . D X . ) E O E R ( 1 E E 0 1 E L B C R O 5 ( L G G T P 6 B D A | S | — | Call for availability | ||
| E2IMT | Aw T T C E S 9 A E C | l a | — | Call for availability | ||
| R1IU | U E , N E R 2 C I L L B R N V 3 N P A | t s | — | Call for availability | ||
| KT5IR | 6 I W O O O P N C - I U O 1 G C E R S S I T T I N N P Aw T U O L L O E T . O B R R T X F | I | — | Call for availability | ||
| ERG6O4IN | T C T N E 0 T . | P | — | Call for availability | ||
| IWO1C2G | 6 E O R 1 F 1 L E C ) O ( 5 " S X ( 9 N 0 X 4 . E 1 5 ( S - - H L L A 3 3 D 2 2 G W E 9 9 U E E 8 8 O R P 2 2 H R I F D S 3 3 T N E E E I " R D E L B T E 5 I W L E L B A M 2 I A C . - H M S 2 S C N O T P W U R E E R G C R C C A S 28 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | 5 | — | Call for availability |

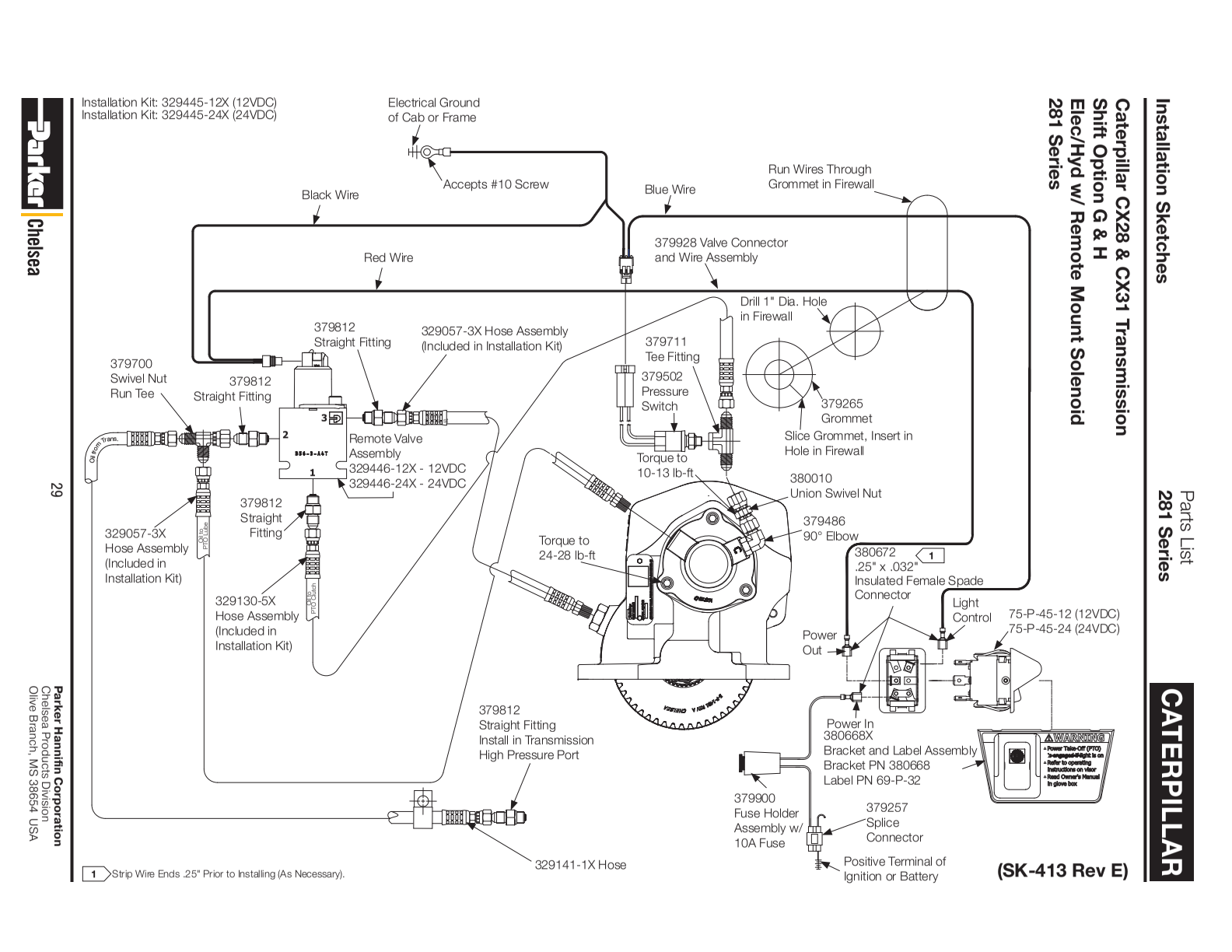

Parts List Bill Of Materials 288 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P813 | Housing (3 Arrangement With O-ring Groove) | 1 or | $582.66 | Add to Cart | |
| 1P814 | Housing (5 Arrangement With O-ring Groove) | 1 or | $650.60 | Add to Cart | ||
| 1P815 | Housing (8 Arrangement With O-ring Groove) | 1 | $650.60 | Add to Cart | ||
| 2 | 14P731 | Spacer (.762 " X 1 .500" X .150") (thickness As Required) | 1 or | $10.38 | Add to Cart | |
| 14P732 | Spacer (.762 " X 1 .500" X .153") | 1 | $11.01 | Add to Cart | ||
| 14P733 | Spacer (.762 " X 1 .500" X .156") | 1 | $10.38 | Add to Cart | ||
| 3 | 31P102 | Thrust Washer (.754" X .440" X .030") | 1 | $3.72 | Add to Cart | |
| 4 | 22P112 | Valve Cap Gasket | 1 | $20.18 | Add to Cart | |
| 5 | 3P1068 | 10T Straight Output Shaft | 1 | $688.51 | Add to Cart | |
| 6 | 379668 | Lockring | 2 | $3.21 | Add to Cart | |
| 7 | 560972 | Needle Roller Bearing Assembly (1 .500" X 1 .875" X 1 .000") | 1 | $32.22 | Add to Cart | |
| 8 | 28P329 | O-ring (5 .487 " X .103") | 1 | $44.96 | Add to Cart | |
| 10 | 3784476 | Socket Head Cap Screw (.312 " -18 X 1 .000") | 3 | $4.33 | Add to Cart | |
| 21P690 | Seal Cap | 3 | $498.30 | Add to Cart | ||
| 12 | 9P106 | Idler Shaft (.750") | 1 | $127.66 | Add to Cart | |
| 13 | 28P191 | O-ring (.549" X .103") | 1 | $3.59 | Add to Cart | |
| 14 | 3784527 | Socket Head Set Screw (.250" -20 X .500") | 1 | $4.37 | Add to Cart | |
| 15 | 550439 | Tapered Bearing Cone (.750" X .859") | 2 or | $51.63 | Add to Cart | |
| 15 | 561006 | Tapered Bearing Cone (.750" X .655") | 2 | $28.12 | Add to Cart | |
| 16 | 21P932 | Bearing Cap (xd, Xv) | 1 | $253.94 | Add to Cart | |
| 21 | SEEPAGE35 | Output Gear | 1 | — | Call for availability | |
| 22 | 550311 | Ball Bearing (1 .770" X 3 .346" X .748") | 1 | $81.15 | Add to Cart | |
| 23 | 378263 | Internal Lockring | 1 | $19.87 | Add to Cart | |
| 24 | 379555 | Lockring | 1 | $23.13 | Add to Cart | |
| 26 | 28P211 | Oil Seal (3 .001 " X 2 .000" X .375") | 1 | $35.18 | Add to Cart | |
| 27 | 38056314 | Hex Flange Head Cap Screw (3/8" -16 X 1 .500") | 4 | $7.14 | Add to Cart | |
| 28 | 380486 | Thin Nylon Lock Nut (.875" -14) | 1 | $60.21 | Add to Cart | |
| 30 | 68P511 | Adhesive Label Not Sold Separately | 1 | — | Call for availability | |
| 31 | SEEPAGE35 | Input Gear | 1 | — | Call for availability | |
| 32 | SEEPAGE35 | Ratio Gear | 1 | — | Call for availability | |
| 33 | 379522 | Lockring | 1 | $5.76 | Add to Cart | |
| 34 | 379231 | Pipe Plug (.125" -27) | 1 | $1.50 | Add to Cart | |
| 35 | 379242 | Straight Adapter (.125" -27 X .750" -16) | 1 | $22.23 | Add to Cart | |
| 36 | 379486 | 90° Elbow (.438" -20) | 1 | $28.97 | Add to Cart | |
| 37 | 3795642 | Thread Cap (.438") | 1 | $1.23 | Add to Cart | |
| 38 | 38007613 | Hardened Flat Washer (.950" X 1 .762 " X .157 ") | 1 | $3.51 | Add to Cart | |
| 39 | 380503 | 1410 Companion Flange (xv) Continued On Next 33 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | 1 | $754.86 | Add to Cart | |
| 32907166X | Bearing Kit | $215.23 | Add to Cart | |||
| 32907180X | Gasket & Seal Kit Stud Kits | $216.89 | Add to Cart | |||
| 717086X | Mounting Kit (fj Input Option 3 & 5 Arrangement) , | 1 | $84.46 | Add to Cart | ||
| 7170117X | Mounting Kit (kv Input Option 3 & 5 Arrangement) , Installation Instructions Kit | 1 | $78.00 | Add to Cart | ||
| 32894847X | Gasket & Installation Instructions Kit Hose Assemblies | 1 | — | Call for availability | ||
| 3290755X | Pressure Hose Assembly (kv Input Option) | 1 | $167.36 | Add to Cart | ||
| 3291411X | Pressure Hose Assembly (fj Input Option) | 1 | $156.32 | Add to Cart | ||
| 3296991X | Wet Spline Lube Hose Assembly (w, V, Y Shift Option) 34 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 Usa , | 1 | $85.54 | Add to Cart |
Gear Ratio Options 288 Series 3 And 5 Assembly 8 Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5ASSEMBLY | Not Sold Separately Gear Output No. No. Input Ratio Teeth Teeth Gear (21) Gear (31) Gear (32) A B 5-P-1491 -1X 5-P-1491 50 5-P-1478 22 2-P-944 5-P-1491 -2X 5-P-1491 50 5-P-1495 25 2-P-945 5-P-1491 -3X 5-P-1491 50 5-P-1479 28 2-P-946 5-P-1491 -4X 5-P-1491 50 5-P-1480 31 2-P-947 5-P-1491 -5X 5-P-1491 50 5-P-1481 33 2-P-949 5-P-1491 -6X 5-P-1491 50 5-P-1482 35 2-P-951 5-P-1491 -7X 5-P-1491 50 5-P-1483 37 2-P-953 5-P-1491 -8X 5-P-1491 50 5-P-1484 39 2-P-954 5-P-1491 -9X 5-P-1491 50 5-P-1497 41 2-P-955 | TEETH | — | Call for availability | ||
| 5P14931X | 5-P-1493 45 5-P-1478 22 2-P-944 | 50 | $921.10 | Add to Cart | ||
| 5P14932X | 5-P-1493 45 5-P-1495 25 2-P-945 | 47 | $921.13 | Add to Cart | ||
| 5P14933X | 5-P-1493 45 5-P-1479 28 2-P-946 | 44 | $934.92 | Add to Cart | ||
| 5P14934X | 5-P-1493 45 5-P-1480 31 2-P-947 | 41 | $934.96 | Add to Cart | ||
| 5P14935X | 5-P-1493 45 5-P-1481 33 2-P-949 | 39 | $921.13 | Add to Cart | ||
| 5P14936X | 5-P-1493 45 5-P-1482 35 2-P-951 | 37 | $921.13 | Add to Cart | ||
| 5P14937X | 5-P-1493 45 5-P-1483 37 2-P-953 | 35 | $921.10 | Add to Cart | ||
| 5P14938X | 5-P-1493 45 5-P-1484 39 2-P-954 | 33 | $921.13 | Add to Cart | ||
| 5P14939X | 5-P-1493 45 5-P-1497 41 2-P-955 Not Sold Separately Gear Output No. No. Input Ratio Teeth Teeth Gear (21) Gear (31) Gear (32) A B | 31 | $1,018.56 | Add to Cart | ||
| 5P1491 | -1X 5-P-1491 50 5-P-1478 22 2-P-943 | 53 | — | Call for availability | ||
| 5P149310X | 5-P-1493 45 5-P-1485 42 2-P-954 35 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 , | 33 | $921.10 | Add to Cart |

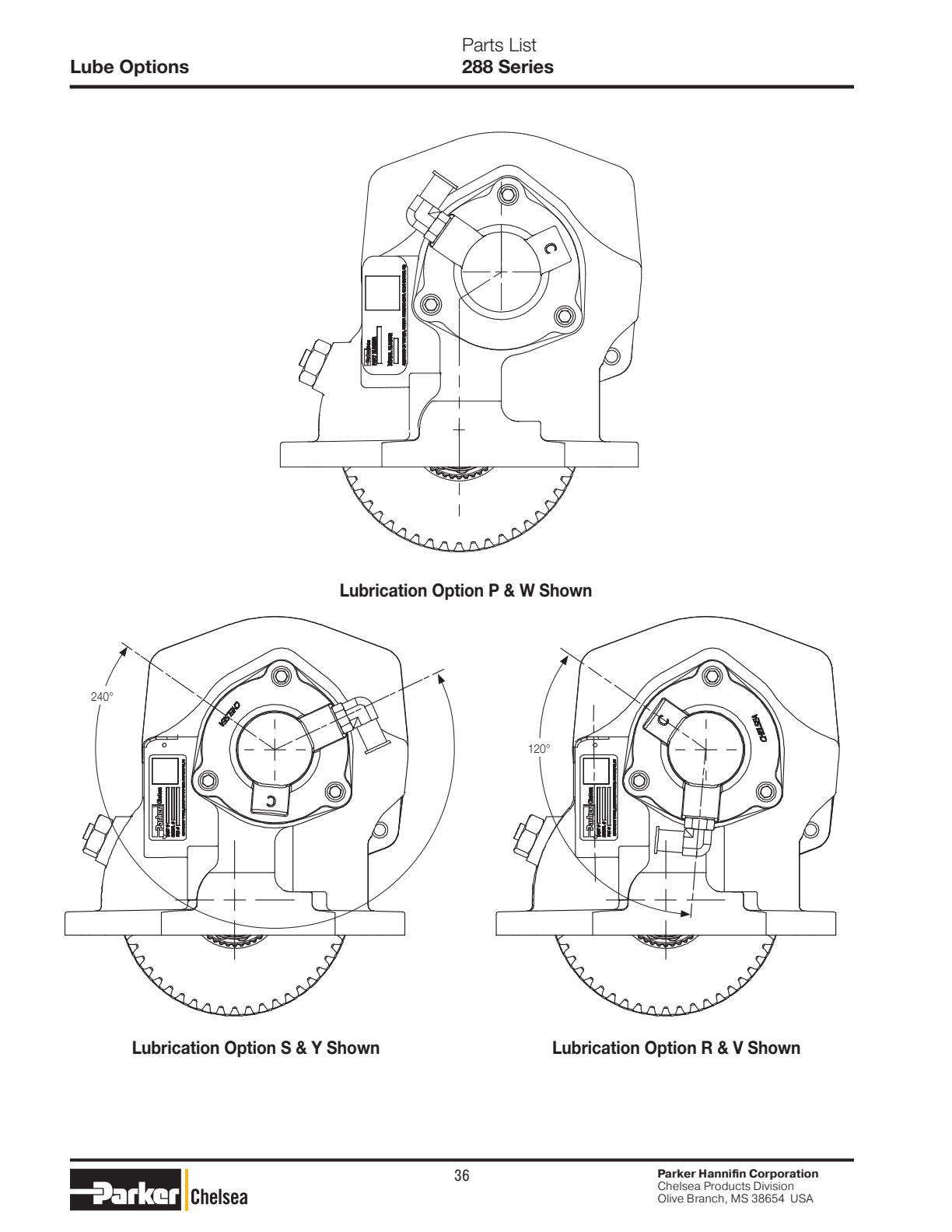

Lube Options 288 Series Pressure Lube (Cont’D) Wet Spline Installation Rb, Rf, Rk, Rs, Ry & Rz Output Options (Sk-508 Rev C)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 385004 | 385004 (.438" -20) 13 .00" 385006 (1 1 .50") | 379486 | $10.91 | Add to Cart | ||
| 385002 | 385002 (.438" -20) Rb, Rf, Rk, Rs, Ry & Rz Output Options (SK-508 Pressure Port. Connect To 379486 On Valve Cover 379627 Male Branch Tee Wet Spline Installation Output Kit Number Connect To 379627 Rb 329959X Rk 329700X Rf 329700X Rs 329744X Ry 329742X Rz 329700X 329699-1X Hose Assembly Note: Not All Output Options May Available On Series Listed Above Flange Rb 21 -P-894 Rf/rk/rz 21 -P-731 35-P-101 Gasket Rs 21 -P-769 Ry 21 -P-771 | Rev C) | $21.12 | Add to Cart | ||
| RB35P104 | — | Call for availability | ||||
| 35P102 | $22.65 | Add to Cart | ||||
| RS28P245 | — | Call for availability | ||||
| RY35P1 | 1 1 4 X 378447-8 Bearing Cap Socket Head Cap Screw 21 -P-934 (3/8" Bearing Cap Bolt Holes Used W/ O-ring Torque 24-28 Lb-ft [33-39 N-m] 37 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 , | USA | — | Call for availability |
Output Options 288 Series Direct Mount Pump Flange & Shaft Dimensions Companion Flange Mounts & Shaft Dimensions
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 500012 | " -13 Unc 4 4 .000" .406" .500" 1 .872 " 7 .643 " 7/8 " 13T - 2 " -13 Unc 4 .000" .406" .610" 2 .080" 7 .670" 1 " 15T 4 - 2/2 " -13 Unc 4 .000" .406" .500" 1 .872 " 7 .670" 7/8 " 13T 4 - | Spline | — | Call for availability | ||
| 712558 | " -1 1 Unc 2 5 .003 " .531 " .610" 2 .580" 7 .670" 1 -1/4 " 14T | Spline | — | Call for availability | ||
| 637512 | " -13 Unc 4 - M12-1 .75 4 3 .152 " .700" .549 " 2 .250" 7 .270" B8x32x36 2 " -13 Unc 4 .000" .406" .610" 2 .580" 7 .670" 1 -1/4 " 14T 4 - Dimensions Shown Are Compiled To Conform To Sae/din Standards; However It Shall Be The Determine The Correct Fit At The Time The Pump Is Mounted To The Pto Therefore Carefully Spline Engagement. Mounts & Shaft Dimensions Bolt Holes Fc Fd Fe Ff Fh Output Shaft No. Female Pilot Face To Hole Face Face To Equally Pilot Depth End Dimensions Thru Center Spaced Of Flange Hole Of Pto .404 " 8 2 .952 " .093 " 8 .073 " 1 -1/2 " 10T .323 " 6 2 .243 " .080" 7 .950" 1 -1/2 " 10T 7 .090" 1 -1/4 " Rd Keyed 4 2 .751 " .083 " 7 .981 " 1 -1/2 " 10T In 30° Increments 14° Apart Dimensions Shown Are Compiled To Conform To Sae/din Standards; However It Shall Be The Determine The Correct Fit At The Time The Pump Is Mounted To The Pto Therefore Carefully Spline Engagement. 39 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 , | Spline | — | Call for availability |
Output Options 288 Series Bill Of Materials Pump Mount
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4X1213UNC | 2B 1 .87" [47.6] Part Number Description .497" [12.62] 3-P-1155 Output Shaft 4.06" 21 -P-933 Bearing Cap [103.2] 21 -P-934 Bearing Cap (wet Spline Only) 4.004" 328170-216X Cap Screw Bag Kit 4.002" [101 .70] 35-P-101 Rotatable Flange Gasket (wet Spline) [101 .65 Pilot (ships W/ Kit) 21 -P-894 Pump Flange (ships Loose W/ Unit) .41 Wet Spline Loose Parts [10.3] | Qty. | — | Call for availability | ||
| TORQUETO2428 | Lb-ft 329699-1X Hose Assembly | 1 | — | Call for availability | ||
| 32543796 | N-m] 329959X Wet Spline Loose Parts Kit 329658X Cover Kit Rf Output Option Rotatable Sae B 2 & 4-Bolt Flange, Sae Bb Shaft (1 | 1 | — | Call for availability | ||
| 2X15 | 7.67" [194.8] Part Number Description 2.08" [52.8] 35-P-101 Wet Spline Bearing Cap Gasket (ships W/ Kit) .61 " [15.5] 21 -P-933 Bearing Cap 21 -P-934 Bearing Cap (wet Spline Only) 28-P-267 Oil Seal (2 .627 " X 1 .750" X .312 ") 4.004" 3-P-1099 Output Shaft (1 " 15T) 4.002" 21 -P-731 Pump Flange (ship Loose W/ Unit) [101 .70] [101 .65] 328170-216X Cap Screw Bag Kit (378447-8 Qty. 4) Pilot 69-P-18 Tag (wet Spline Only) Wet Spline Loose Parts 329700X Wet Spline Loose Parts Kit .41 " [10.3] 329699-1X Hose Assembly | Qty. | — | Call for availability | ||
| 8X1213 | 2B 329658X Cover Kit Rk Output Option Rotatable Sae B 2 & 4-Bolt Flange, Sae B Shaft (7/8" 7.67" Part Number Description | 1 | — | Call for availability | ||
| 2X16 | [194.8] 35-P-101 Wet Spline Bearing Cap Gasket (ships W/ Kit) 1 .87" .50" [47.5] 21 -P-933 Bearing Cap [12.6] 21 -P-934 Bearing Cap (wet Spline Only) 5.00" [127.0] 28-P-267 Oil Seal (2 .627 " X 1 .750" X .312 ") 3-P-1155 Output Shaft 4.004" 21 -P-731 Pump Flange (ship Loose W/ Unit) 4.002" [101 .70] 328170-216X Cap Screw Bag Kit (378447-8 Qty. 4) [101 .65] Pilot 69-P-18 Tag (wet Spline Only) Wet Spline Loose Parts 329700X Wet Spline Loose Parts Kit .41 " 329699-1X Hose Assembly [10.3] 329658X Cover Kit | 1 | — | Call for availability |
Output Options 288 Series Bill Of Materials Pump Mount (Cont’D)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2X5811 | — | Call for availability | ||||
| RSUNC2B | .61 " 35-P-101 Wet Spline Bearing Cap Gasket (ships W/ Kit) [15.5] 21 -P-933 Bearing Cap 21 -P-934 Bearing Cap (wet Spline Only) 28-P-267 Oil Seal (2 .627 " X 1 .750" X .312 ") 5.004" 5.002" 3-P-1070 Output Shaft (1 -1/4" 14T) [127.10] [127.05] 21 -P-769 Pump Flange (ship Loose W/ Unit) Pilot 328170-216X Cap Screw Bag Kit (378447-8 Qty. 4) 69-P-18 Tag (wet Spline Only) Wet Spline Loose Parts .53" 329744X Wet Spline Loose Parts Kit [13.5] | 1 | — | Call for availability | ||
| 4X1213 | 329699-1X Hose Assembly | 1 | — | Call for availability | ||
| UNC2B | 329654X Cover Kit Ry Output Option Rotatable Din 5462 Pump Mount, Din 5462 Shaft (B8x32x36) Part Number Description 7.27" 35-P-101 Wet Spline Bearing Cap Gasket (ships W/ Kit) [184.6] .70" 21 -P-933 Bearing Cap [17.8] .55" 21 -P-934 Bearing Cap (wet Spline Only) [13.9] 28-P-267 Oil Seal (2 .627 " X 1 .750" X .312 ") 3-P-1071 Output Shaft Din 8T 21 -P-771 Pump Flange (ship Loose W/ Unit) 328170-216X Cap Screw Bag Kit (378447-8 Qty. 4) 69-P-18 Tag (wet Spline Only) Wet Spline Loose Parts 329742X Wet Spline Loose Parts Kit | 1 | — | Call for availability | ||
| RY800 | 2.25" [57.1] 329699-1X Hose Assembly 3.153" 329659X Cover Kit 3.151 " [80.09] [80.04] Pilot Rz Output Option Rotatable Sae B 2 & 4-Bolt Flange, Sae C Shaft (1 -1/4" - | 1 | — | Call for availability | ||
| 2X15 | 7.67" [194.8] Part Number Description 2.58" | Qty. | — | Call for availability | ||
| 8X1213 | [65.5] 35-P-101 Wet Spline Bearing Cap Gasket (ships W/ Kit) | 1 | — | Call for availability |
Parts List Kits Bill Of Materials 281/288 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 281SERIES | (all Outputs Except Bv & Bd) (281/288 Series) 1 28-P-21 1 Oil Seal (3 .001 " X 2 .000" X .375 ") 1 28-P-285 O-ring (1 .597 " X .103 ") 1 28-P-1 19 Oil Seal (1 .379" X .875 " X .250") Bearing Assembly 28-P-178 O-ring (4 .359" X .138") | 1 | — | Call for availability | ||
| 1500X | 1 .875 " X 1 .000") 2 35-P-101 Bearing Cap Gasket (wet Spline) (1 .770" X 3 .346" X .748") 1 28-P-191 O-ring (.549" X .103 ") Bearing (.750" X .859") 2 28-P-267 Oil Seal (2 .627 " X 1 .750" X .312 ") (.754" X .440" X .030") 1 22-P-151 Shim Gasket | 1 | — | Call for availability | ||
| SPACER762 | " X 1 .500" X .150") 1 22-P-1 12 Valve Cap Gasket | 1 | — | Call for availability | ||
| 288SERIES | 329071 -83X Solenoid Valve Seal Kit 1 (281 Series) 1 2016V-7 O-ring (.614" X .070") Bearing Assembly 2017V-7 O-ring (.676" X .070") | 1 | — | Call for availability | ||
| 281288 | Series) (281 288 Series) , (M10-1 .5 X .984") 2 328946X Caution Label Kit (fc) (M10-1 .5 X 1 .378") 8 35-P-74 Shim Gasket | 2 | — | Call for availability | ||
| 90ELBOW | (.438" -20) 1 379085-2 Instructions Label Card Mounting Kit 1 379624 Product Warranty Card Owner’s Manual HY25-1380-M1/US Kit (fj Input Option, 8 Arr.) Safety Guide HY25-1002-M1/US | 1 | — | Call for availability | ||
| M101 | .5 X 1 .181 ") 1 (M10-1 .5 X 1 .378") 8 1 1 Listed In Order Based On Part Number. 45 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 , | USA | — | Call for availability | ||
| 12VDCINSTALLATION | Kit 329237-12X 12VDC Remote Valve Kit B Shift) (281 Series) (fj Input Option, G Shift) (281 Series) Connector (.250") 3 329231X Valve Connector & Wire Label Assembly 1 75-P-45-12 12VDC Electrical Rocker Switch Tie 6 379131 -1 Pipe Reducer Bushing Connector 1 (.125 " -27 X .250" -18) 2 379257 Electrical Speed Limiter Connector 1 379252 Electrical Speed Limiter Butt Connector. | 1 | — | Call for availability | ||
| 12VDCELECTRICAL | Light Rocker Switch 1 379258 Mounting Bracket Sketch 1 379265 Grommet W/ Speed Control 1 380672 Female Spade Connector (.250") Connector 1 380668X Bracket & Label Assembly Assembly 1 379449 Male Connector (.438" -20 X .250" -18) | 1 | — | Call for availability | ||
| 14GELECTRICAL | Fork Wire 1 379502 Pressure Switch 379686-1 12VDC Hydraulic Shift Solenoid Valve | 1 | — | Call for availability | ||
| 24VDCINSTALLATION | Kit 379700 Swivel Nut Tee (.438" -20) D Shift) (281 Series) 37971 1 Tee (.375 " -24 X .438" -20 X .438" -20) | 1 | — | Call for availability | ||
| 24VDCELECTRICAL | Rocker Switch 1 379900 Fuse Holder Connector 1 380010 Female Sae Swivel Nut Union (.438" -20) . . Limiter Connector 2 500357-7 Lock Washer (.194" X .337 " X .047 ") 1 500457-6 Round Head Slotted Screw Connector (.250") 3 (.190" -32 X .438") Label Assembly 1 SK-432 Remote Valve Installation Sketch 1 379254-17 14G Electrical Fork Terminal Assembly 1 75-P-46X Wire & Connectors Kit Connector 1 | 1 | — | Call for availability | ||
| 12VDC | Installation Kit 329445-24X 24VDC Remote Valve Installation Kit Option, B Shift) (281 Series) (kv Input Option, H Shift) (281 Series) Switch 1 329446-24X 24VDC Remote Mount Valve Assembly | 1 | — | Call for availability | ||
| 24VDC | Installation Kit 380010 Female Sae Swivel Nut Union (.438" -20) Option, D Shift) (281 Series) 379700 Swivel Nut Tee (.438" -20) Switch 1 37971 1 Tee (.375 " -24 X .438" -20 X .438" -20) | 1 | — | Call for availability | ||
| 1TEE375 | " -24 X .438" -20 X .438" -20) 1 Listed In Order Based On Part Number. 47 Parker Hannifin Corporation Chelsea Products Division Olive Branch Ms 38654 , | USA | — | Call for availability | ||
| TUBING253 | " X .179" X 30 Ft) 1 28-P-171 O-ring (.644" .087 ") Tie 6 X 329650X 24VDC Speed Limiter Assembly Connector 1 329076X 12VDC & 24VDC W/ Eoc Installation Kit Limiter Connector 2 379243 Speed Sensor Speed Control 1 1 329354-12X 12VDC Remote Valve Conversion Kit Connector 1 (281 Series) 1 22-P-1 12 Valve Cap Gasket 1 329230X Electrical Wire & Butt Connector Assembly 1 329231X Valve Connector Wire Assembly 1 379258 Solenoid Valve Mounting Bracket Options 1 379449 Male Connector (.438" -20 X .250" -18) Connector. 3 379686-1 12VDC Hydraulic Shifter Solenoid Valve 500357-7 Lock Washer (.337 " X .190" X .047 ") Kit Air Shift (t Shift) 500457-6 Round Head Slotted Screw | 1 | — | Call for availability | ||
| DIN120 | 1 28-P-285 O-ring (1 .597 " X .103 ") 1 379555 Lockring 1 380069 Lockring Lock Nut (.875 " -14) 1 28-P-21 1 Oil Seal (3 .001 " X 2 .000" X .375 ") Gasket 1 379742 Din 100 | 2 | — | Call for availability | ||
| 1 | OILSEAL3001 | " X 2 .000" X .375 ") 1 380076-13 Hardened Flat Washer | — | Call for availability | ||
| ORING1597 | " X .103 ") 2 (.950" X 1 .762 " X .157 ") Head Cap Screw 380486 Thin Nylon Lock Nut (.875 " -14) X 1 .500") 4 22-P-151 Bearing Cap Gasket Flat Washer 380563-14 Hex Flange Head Cap Screw .762 " X .157 ") 1 (.375 " -16 X 1 .500") 10T Straight 1 379746 Lockring (1 .770" X 3 .346" X .748") 1 55031 1 Ball Bearing (1 .770" X 3 .346" X .748") 1 378263 Lockring | 1 | — | Call for availability | ||
| ORING5487 | " X .103 ") 1 28-P-329 O-ring (5 .487 " .103 ") X Kit (xd To Sb) 329160-136X Conversion Kit (xd To Bd) | 1 | — | Call for availability | ||
| DIN100 | 1 4-P-186 Spacer (1 .385 " X 1 .750" X .365 ") 1 28-P-329 O-ring (5 .487 " .103 ") 1 X Lock Nut (.875 " -14) 1 Continued On Next Gasket 1 | 1 | — | Call for availability | ||
| 1OILSEAL | (3 .001 " 2 .000" .375 ") 1 329700X Wet Spline Parts Kit X X 329658X Cover Kit Flat Washer 1 .762 " .157 ") 1 3-P-1 126 Output Shaft (7/8" 13T) X X Lock Nut (.875 " -14) 1 28-P-285 O-ring (1 .597 " X .103 ") Series Companion Flange 1 379555 Lockring Cap Gasket 1 380069 Lockring Head Cap Screw 28-P-329 O-ring (5 .487 " X .103 ") " -16 1 .500") 4 328170-216X Bag Kit X 1 380563-14 Hex Flange Head Cap Screw | 1 | — | Call for availability | ||
| 1BALLBEARING | (1 .770" 3 .346" .748") 1 (.375 " -16 X .312 ") X X 1 379746 Lockring (5 .487 " .103 ") 1 55031 1 Ball Bearing (1 .770" X 3 .346" X .748") X 378263 Internal Lockring Kit (xd To Rk Dry) 69-P-18 Wet Spline Tag | 4 | — | Call for availability | ||
| 126OUTPUT | Shaft (7/8" 13T) 1 - 28-P-329 O-ring (5 .487 " X .103 ") (1 .597 " .103 ") 2 X 28-P-267 Oil Seal (2 .627 " X 1 .750" X .312 ") 2 28-P-285 O-ring (1 .597 " X .103 ") 1 328170-216X Bag Kit (5 .487 " .103 ") 1 X 380563-14 Hex Flange Head Cap Screw 1 (.375 " -16 X .312 ") Head Cap Screw 379555 Lockring " -16 .312 ") 4 X 379746 Lockring 1 380069 Lockring Lubricant 1 21 -P-933 Bearing Cap | 1 | — | Call for availability | ||
| OILSEAL2627 | " X 1 .750" X .312 ") 1 28-P-285 O-ring (1 .597 " X .103 ") 1 379555 Lockring 1 380069 Lockring | 2 | — | Call for availability |
Additional Parts Listed In This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 385006 | (41.00") | $12.24 | Add to Cart | |||
| 329057-5X | 13.00" | — | Call for availability | |||
| 21-P-934 | (3/8" Bearing Cap Bolt Holes Used W/ O-ring ) | $259.36 | Add to Cart | |||
| 31-P-113 | Thrust Washer (1.385" X 3.125" X .125") | 1 | $44.53 | Add to Cart | ||
| 330155-1X | Drive Shaft & Clutch Assembly | $612.45 | Add to Cart | |||
| 379558 | Companion Flange Din 120 | 1 | $698.00 | Add to Cart | ||
| 379742 | Companion Flange Din 100 | 1 | $1,076.21 | Add to Cart | ||
| 329160-134X | Conversion Kit (converts Xd To Ac) | $1,123.68 | Add to Cart | |||
| 330156-1X | Drive Shaft & Clutch Assembly | 1 | — | Call for availability | ||
| 329160-136X | Conversion Kit (converts Xd To Bd) | $2,821.71 | Add to Cart | |||
| 330156X | Drive Shaft & Clutch Assembly | 1 | — | Call for availability | ||
| 329160-123X | Conversion Kit (converts Xd To Bv) | $3,547.90 | Add to Cart | |||
| 330155-4X | Drive Shaft & Clutch Assembly | $612.45 | Add to Cart | |||
| 21-P-933 | Bearing Cap 1 Or | $253.94 | Add to Cart | |||
| 329658X | Cover Kit | 1 | $157.74 | Add to Cart | ||
| 329160-164X | Conversion Kit (converts Xd To Rb) | $858.83 | Add to Cart | |||
| 329160-165X | Conversion Kit (converts Xd To Rb Wet Spline) | — | Call for availability | |||
| 328170-216X | Cap Screw Bag Kit (378447-8 Qty. 4) | 1 | $7.38 | Add to Cart | ||
| 21-P-731 | Pump Flange (ship Loose W/ Unit) | 1 | $196.99 | Add to Cart | ||
| 329700X | Wet Spline Loose Parts Kit | 1 | $84.79 | Add to Cart | ||
| 329160-156X | Conversion Kit (converts Xd To Rf) | $740.80 | Add to Cart | |||
| 329160-157X | Conversion Kit (converts Xd To Rf Wet Spline) | $1,043.49 | Add to Cart | |||
| 329160-154X | Conversion Kit (converts Xd To Rk) | $740.80 | Add to Cart | |||
| 329160-155X | Conversion Kit (converts Xd To Rk Wet Spline) | $1,030.08 | Add to Cart | |||
| 330155-2X | Drive Shaft & Clutch Assembly | $612.45 | Add to Cart | |||
| 21-P-769 | Pump Flange (ship Loose W/ Unit) | 1 | $477.36 | Add to Cart | ||
| 329654X | Cover Kit | 1 | $157.74 | Add to Cart | ||
| 329160-158X | Conversion Kit (converts Xd To Rs Wet Spline) | $858.83 | Add to Cart | |||
| 329160-159X | Conversion Kit (converts Xd To Rs) | $1,078.75 | Add to Cart | |||
| 330155-3X | Drive Shaft & Clutch Assembly | $612.45 | Add to Cart | |||
| 329742X | Wet Spline Loose Parts Kit | 1 | $177.31 | Add to Cart | ||
| 329160-160X | Conversion Kit (converts Xd To Ry) | $858.83 | Add to Cart | |||
| 329160-161X | Conversion Kit (converts Xd To Ry Wet Spline) | $1,202.19 | Add to Cart | |||
| 35-P-101 | Wet Spline Bearing Cap Gasket (ships W/ Kit) | 1 | $37.17 | Add to Cart | ||
| 329160-162X | Conversion Kit (converts Xd To Rz Wet Spline) | $740.80 | Add to Cart | |||
| 329160-163X | Conversion Kit (converts Xd To Rz) | $1,030.08 | Add to Cart | |||
| 4-P-209 | Spacer (xr) (included In Kit) | 1 | $239.00 | Add to Cart | ||
| 12015378 | 90° Md: Hd: | — | Call for availability | |||
| 379265 | / 5 379486 | $3.21 | Add to Cart | |||
| 379252 | To | $2.30 | Add to Cart | |||
| 379280 | 2X 379486 In | $7.49 | Add to Cart | |||
| 379258 | To On | $5.11 | Add to Cart | |||
| 379700 | Tee Trans | $13.33 | Add to Cart | |||
| 379504 | Valve Black Wire | $52.22 | Add to Cart | |||
| 379502 | 380009 | $93.06 | Add to Cart | |||
| 379900 | Fuse Holder | $5.99 | Add to Cart | |||
| 379257 | 379664 Red Led | $2.91 | Add to Cart | |||
| 329214X | Or 329316X Red Wire | $646.87 | Add to Cart | |||
| 378414 | Red Wire | $66.97 | Add to Cart | |||
| 379044-6 | 379044-6 | $41.17 | Add to Cart | |||
| 379042 | 379042 | $5.66 | Add to Cart | |||
| 380668X | Pn | $5.98 | Add to Cart | |||
| 3-P-1154 | Output Shaft | 1 | $368.82 | Add to Cart | ||
| 21-P-894 | Pump Flange (ships Loose W/ Unit) | 4 | $434.18 | Add to Cart | ||
| 329959X | Wet Spline Loose Parts Kit | 1 | $96.67 | Add to Cart | ||
| 69-P-18 | Tag (wet Spline Only) | 1 | $6.83 | Add to Cart | ||
| 3-P-1155 | Output Shaft | 1 | $368.82 | Add to Cart | ||
| 3-P-1071 | Output Shaft Din 8T | 1 | $688.51 | Add to Cart | ||
| 21-P-771 | Pump Flange (ship Loose W/ Unit) | 1 | $649.32 | Add to Cart | ||
| 329659X | Cover Kit | 1 | $61.45 | Add to Cart | ||
| 35-P-74 | Shim Gasket | 1 | $7.13 | Add to Cart | ||
| 561088 | Needle Roller Bearing Assembly | $41.81 | Add to Cart | |||
| 28-P-252 | Brake O-ring (2.674" .103") | 1 | $14.67 | Add to Cart | ||
| 379451 | Pilot Screw (M10-1 .5 X .984") | 2 | $7.23 | Add to Cart | ||
| 328946X | Caution Label Kit | 2 | — | No longer available — call for replacement | ||
| 379453-10 | Cap Screw (fc) (M10-1 .5 X 1 .378") | 8 | $6.86 | Add to Cart | ||
| 379085-2 | Instructions Label | 1 | $4.02 | Add to Cart | ||
| 379624 | Product Warranty Card | 1 | $3.72 | Add to Cart | ||
| 379453-8 | Cap Screw (M10-1 .5 X 1 .181") | 2 | $24.72 | Add to Cart | ||
| 379812 | Male Connector (.438"-20) | 1 | $16.73 | Add to Cart | ||
| 380672 | Female Spade Connector (.250") | 3 | — | Call for availability | ||
| 329231X | Valve Connector & Wire | 1 | $123.35 | Add to Cart | ||
| 379061 | Plastic Wire Tie | 6 | $1.46 | Add to Cart | ||
| 379131-1 | Pipe Reducer Bushing | $3.19 | Add to Cart | |||
| 379449 | Male Connector (.438"-20 X .250"-18) | 1 | $13.18 | Add to Cart | ||
| 379254-17 | 14G Electrical Fork Wire | 1 | $18.76 | Add to Cart | ||
| 379686-1 | 12VDC Hydraulic Shift Solenoid Valve | 1 | $473.29 | Add to Cart | ||
| 379711 | Tee (.375"-24 X .438"-20 X .438"-20) | 1 | $157.76 | Add to Cart | ||
| 380010 | Female Sae Swivel Nut Union (.438"-20) | 1 | $17.47 | Add to Cart | ||
| 500357-7 | Lock Washer (.194" X .337" X .047") | 2 | $1.07 | Add to Cart | ||
| 500457-6 | Round Head Slotted Screw | $1.12 | Add to Cart | |||
| 75-P-46X | Wire & Connectors Kit | 1 | $27.77 | Add to Cart | ||
| 379686-2 | 24VDC Hydraulic Shift Solenoid Valve | 1 | $466.27 | Add to Cart | ||
| 378881 | Rocker Switch | 1 | $111.97 | Add to Cart | ||
| 329446-24X | 24VDC Remote Mount Valve Assembly | 1 | $572.75 | Add to Cart | ||
| 378978 | 12VDC Indicator Light | 1 | $25.82 | Add to Cart | ||
| 379061X | Plastic Wire Tie | 1 | — | Call for availability | ||
| 379005 | 24VDC Indicator Light | 1 | — | No longer available — call for replacement | ||
| 379306 | Electrical Fork Terminal | 3 | $2.50 | Add to Cart | ||
| 379336 | Electrical/air Shifter Switch Bracket | 1 | $10.11 | Add to Cart | ||
| 379928 | Valve & Wire Connector | 1 | $47.11 | Add to Cart | ||
| 328923-10X | Speed Sensor Cable 10 Ft | 1 | — | No longer available — call for replacement | ||
| 20071-3 | Eoc Unit (nss) | 1 | — | Call for availability | ||
| 329446-12X | 12VDC Remote Mount Valve Assembly | 1 | $616.62 | Add to Cart | ||
| 75-P-53 | 24VDC Wire Harness Assembly | 1 | $207.54 | Add to Cart | ||
| 378416 | Hex Nipple (.250"-18) | 1 | $4.80 | Add to Cart | ||
| 379305 | Pressure Switch | 1 | $206.60 | Add to Cart | ||
| 379254-17X | Blue Wire | 1 | — | Call for availability | ||
| 329230X | Electrical Wire & Butt Connector | 1 | — | No longer available — call for replacement | ||
| 380009 | Female Connector | 1 | $11.19 | Add to Cart | ||
| 379665-1 | Decal S & T Options | 1 | — | Call for availability | ||
| 329316X | Valve T Shifter Air Shifter | 1 | $646.87 | Add to Cart | ||
| 329160-119X | Conversion Kit (xd To Sd) | $856.35 | Add to Cart | |||
| 329160-120X | Conversion Kit (xd To Sv) | $905.11 | Add to Cart | |||
| 28-P-151 | Oil Seal (3.001" X 2.000" X .375") | 1 | — | Call for availability | ||
| 329160-130X | Conversion Kit (xd To Ab) | $1,476.19 | Add to Cart | |||
| 329160-135X | Conversion Kit (xd To Sc) | — | No longer available — call for replacement | |||
| 329160-131X | Conversion Kit (xd To Sb) | — | No longer available — call for replacement | |||
| 329160-139X | Conversion Kit (xd To Xv) | $1,465.43 | Add to Cart | |||
| 379688 | Spline Lubricant | 1 | $8.98 | Add to Cart | ||
| 32916-162X | Conversion Kit (xd To Rz Dry) | — | Call for availability | |||
| 329744X | Wet Spline Parts Kit | 1 | $102.28 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO CHELSEA-PTO-281 — every part in the manual, matched to our live inventory. We stock 314 of the 474 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
