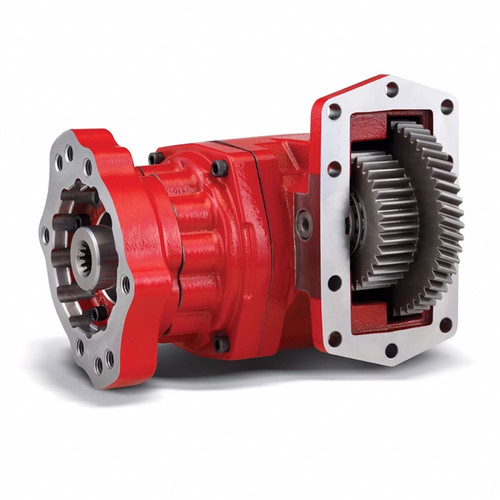

The Chelsea 288 Series Power Take-Off Assembly, part number 288GKFJP-M5RK or 288GKFJPM5RK, is a heavy-duty 10-bolt constant mesh PTO built on the proven 281 Series platform. It delivers a single continuous duty torque rating and features ductile iron bearing caps rated 117% stronger than gray iron. An O-ring sealing configuration between the housing and bearing cap reduces vibrational effects and improves clamp load. The standard output shaft is a 1-inch round shaft with a 1/4-inch key and includes positive stop to prevent oil seal damage at driveline couplings. Nine speed ratios cover both low and high range, and the Wet Spline Lubrication option extends pump shaft life by 7 to 10 times. Cast iron housing with rotatable flanges reduces interference clearance issues. The hose is included, so no separate order is needed. Typical markets include snow and ice, vacuum, aerial, and refuse applications. Call us to confirm proper fit for your specific transmission and application.
Features
10-Bolt constant mesh mounting on a cast iron housing
Ductile iron bearing caps, 117% stronger than gray iron
O-ring sealing configuration reduces vibrational effects and improves bearing cap clamp load
1-inch round output shaft with 1/4-inch key and positive stop to eliminate oil seal damage
Nine speed ratios including low and high speeds
Wet Spline Lubrication option extends pump shaft life 7 to 10 times; hose included
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh
- Output Shaft: 1" Round Shaft with 1/4" Key
- Speed Ratios: Nine ratios, including low and high speeds
- Bearing Cap Material: Ductile Iron (117% stronger than gray iron)
- Sealing: O-ring configuration between housing and bearing cap
- Lubrication Option: Wet Spline (W) or Pressure Lube (P)
- Housing Material: Cast Iron
- Positive Stop: Yes, standard on driveline output
- Hose: Included
- Series: Chelsea 288 (replaces Chelsea 287 Series)
Additional Information
Parts Manual: Chelsea 288 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
