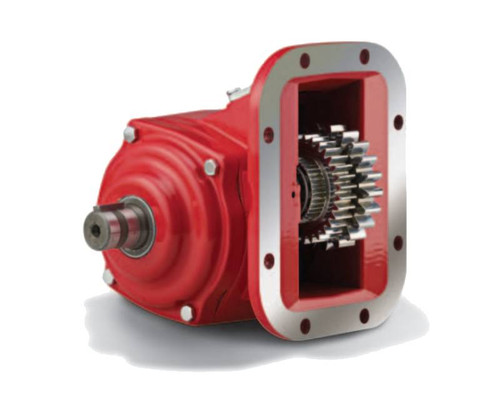

The Chelsea 340SFBGX-A4XD or 340SFBGXA4XD is a 340 Series Power Take-Off assembly built for vocational truck applications that require forward and reverse operation. It mounts to manual transmissions with a 6-bolt aperture from Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, and other manufacturers. The reversible 6-bolt mounting pattern lets you orient the unit for best clearance. Shift is mechanical lever-actuated. The 1-1/4" round output shaft with key delivers driveline power rated up to 200 lb-ft intermittent torque (check application pages for actual torque ratings), with shaft power of 19 HP at 500 RPM and 38 HP at 1,000 RPM. The cast iron housing and ball bearing output are characteristic of the 340 Series design. Call us to confirm proper fit for your transmission.
Features
Reversible 6-bolt mounting pattern fits most manual transmissions with 6-bolt aperture
Compatible transmission manufacturers include Eaton/Fuller, Volvo/Mack, ZF, Hino, and GM
Mechanical lever shift operation
1-1/4" round output shaft with key for driveline power delivery
Ball bearing output for extended service life
Removable cover plate allows backlash adjustment in the field
Rugged cast iron housing
Tech Specs
- Intermittent Torque: 101-200 lb-ft / 201-300 Nm; 200 lb-ft / 271 Nm (Check Application Pages for Actual Torque Ratings)
- Mounting Type: Reversible, 6-Bolt
- Output Shaft Type: 1-1/4" Round with 5/16" Key
- Output Power: 36-45 HP / 21-30 kW
- Shift Type: Lever, Mechanical
- Transmission Manufacturer: Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, Other
- Shaft Power: 19 HP (500 RPM) / 38 HP (1,000 RPM); 14 kW (500 RPM) / 28 kW (1,000 RPM)
- Continuous Operation: Yes, with 30% de-rating
