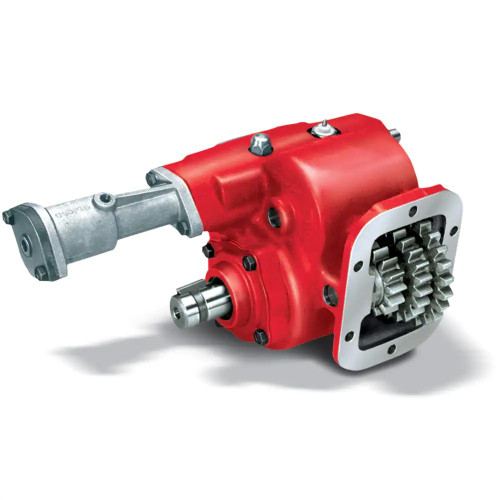

The Chelsea 340 Series Power Take-Off, part number 340SKITX-Y5XD or 340SKITXY5XD, is a mechanically lever-shifted PTO built for vocational truck applications that demand both forward and reverse rotation. It mounts to 6-bolt manual transmission apertures from Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, and other manufacturers using a reversible mounting configuration. The 1-1/4" round output shaft with keyway delivers driveline output power of 36-45 HP (21-30 kW), with shaft power rated at 19 HP at 500 RPM and 38 HP at 1,000 RPM. Intermittent torque capacity reaches up to 200 lb-ft (271 Nm) -- check application pages for actual torque ratings for your specific installation. The cast iron housing includes a removable cover plate for backlash adjustment. Common applications include oil field and logging service. Call us to confirm proper fit for your transmission.
Features
Reversible 6-bolt mounting fits most manual transmissions including Eaton/Fuller, Volvo/Mack, ZF, Hino, and GM
Mechanical lever shift with forward and reverse rotation capability
1-1/4" round output shaft with 5/16" key for driveline applications
Intermittent torque up to 200 lb-ft (271 Nm); shaft power 19 HP at 500 RPM, 38 HP at 1,000 RPM
Heavy-duty ball bearing on output shaft for extended service life
Rugged cast iron housing with removable cover plate for backlash adjustment
Tech Specs
- Intermittent Torque: Up to 200 lb-ft (271 Nm) -- check application pages for actual torque ratings
- Mounting Type: Reversible, 6-bolt
- Output Shaft Type: 1-1/4" round with 5/16" key
- Output Power: 36-45 HP (21-30 kW)
- Shift Type: Mechanical lever
- Shaft Power: 19 HP (500 RPM), 38 HP (1,000 RPM) / 14 kW (500 RPM), 28 kW (1,000 RPM)
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, and other 6-bolt manual transmissions
- Lubrication: No pressure lube required
- Continuous Operation: Supported with 30% de-rating
- Dimensions: 10.5" H x 10.25" W x 19.75" L
