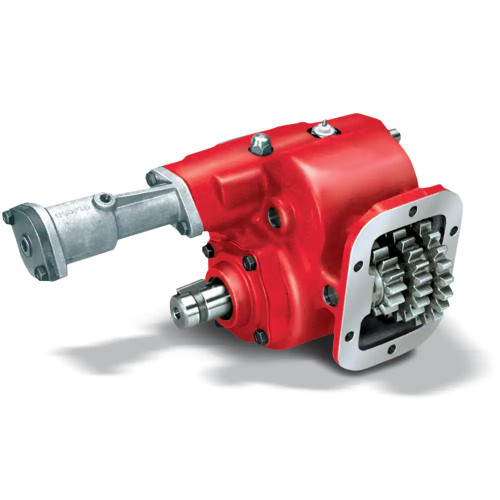

The Chelsea 340 Series Power Take-Off Assembly, part number 340XKITX-Y5XD or 340XKITXY5XD, is a reversible 6-bolt PTO designed for vocational truck applications that require both forward and reverse rotation. It mounts to manual transmissions from Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, and other manufacturers with a 6-bolt aperture. The 1-1/4" round output shaft with key delivers up to 200 lb-ft intermittent torque and 38 HP at 1000 RPM. Shift is mechanical lever-operated. The cast iron housing and ball bearing output support continuous operation with a 30% de-rating. Cross-referenced as 1450-340XKITXY5XD and CHL340XKITXY5XD. Call us to confirm proper fit for your transmission and application.
Features
Reversible 6-bolt mounting fits most manual transmissions with a 6-bolt aperture
Compatible with Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, and other transmission manufacturers
1-1/4" round output shaft with key
Mechanical lever shift operation
Ball bearing output for extended service life
Removable cover plate allows backlash adjustment in the field
Rugged cast iron housing
Tech Specs
- Intermittent Torque: 200 lb-ft / 271 Nm (check application pages for actual torque ratings)
- Mounting Type: Reversible, 6-Bolt
- Output Shaft Type: 1-1/4" Round with 5/16" key
- Output Power: 36-45 HP / 21-30 kW
- Shaft Power: 19 HP at 500 RPM, 38 HP at 1000 RPM / 14 kW at 500 RPM, 28 kW at 1000 RPM
- Shift Type: Mechanical Lever
- Transmission Manufacturer: Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, Other
- Continuous Operation: Yes, with 30% de-rating
- Lubrication: No pressure lube
- Dimensions (H x W x L): 10.5" x 10.25" x 19.75"
- Cross References: 1450-340XKITXY5XD, 1450340XKITXY5XD, CHL340XKITXY5XD
