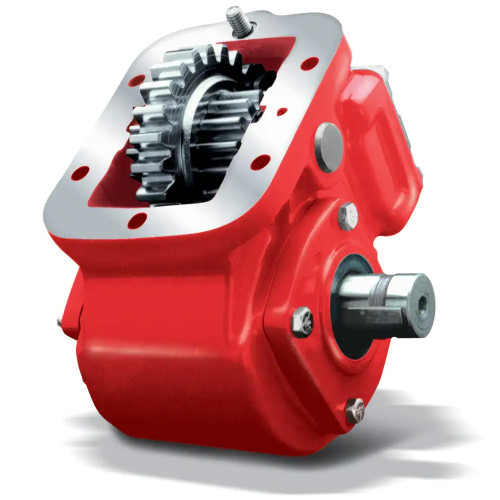

The Chelsea 442 Series Power Take-Off, part number 442KSBCX-A3XK or 442KSBCXA3XK, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, service trucks, tow trucks, and aerial units. This unit uses an air shift actuator and delivers power through an SAE B 2 or 4-bolt flange with a 7/8" 13-tooth SAE B shaft. Mounting uses a standard mount. The cast iron housing and tapered cone bearings on the output shaft give the 442 Series its class-leading torque capacity and service life. No pressure lube system; splash lubrication only. Call us to confirm proper fit for your specific transmission application.
Features
Chelsea 442 Series, 6-bolt transmission mount
Air shift actuation
SAE B 2 or 4-bolt flange with a 7/8" 13-tooth SAE B shaft
Cast iron housing with tapered cone bearings on output shaft
No pressure lube system required
Tech Specs
- Product Series: 442
- Mounting Option: Standard Mount without Stud Kit (K)
- Gear Ratio Code: S (24/22)
- Input Gear Designator: BC
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift (A)
- Assembly Arrangement: 3
- Output Option: SAE B 2 or 4-Bolt Flange, SAE B Shaft (7/8" 13T) (XK)
