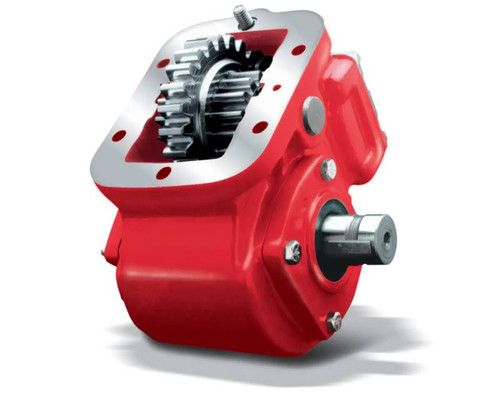

The Chelsea 442 Series Power Take-Off, part number 442XQGRP-W3XD or 442XQGRPW3XD, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit carries a 0.391:1 gear ratio, air shift actuation, and a 1-1/4" round standard output shaft. Mounting uses the standard configuration with metric studs. The output shaft runs without pressure lubrication, and the cast iron housing rides on tapered cone bearings for extended service life. The 442 Series supports a 360-degree rotatable output flange for tight clearance installations. Call us to confirm proper fit for your application.
Features
Product Series: Chelsea 442 Series, 6-bolt transmission mount
Gear Ratio: 0.391:1 (Input Gear Designator AH)
Shift Type: Air Shift
Output: 1-1/4" round standard shaft (no pressure lube)
Mounting: Standard mount with metric studs
Cast iron housing with tapered cone bearings on output shaft
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
