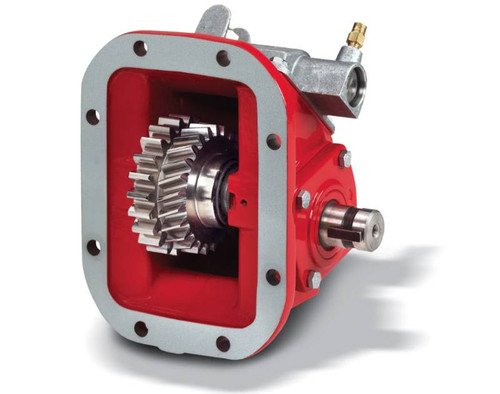

442XWESX-A5GF Chelsea PTO Assembly

The Chelsea 442 Series Power Take-Off Assembly, part number 442XWESX-A5GF or 442XWESXA5GF, is a 6-bolt mount PTO built for light-to-medium duty vocational truck applications including dump trucks, tow trucks, and service trucks. This unit runs an air shift actuation, a 0.391:1 gear ratio, and a 1-1/4" round standard output shaft. Mounting uses a standard configuration with metric studs. The no-pressure-lube design keeps the lubrication system straightforward. The cast iron housing pairs with tapered cone bearings on the output shaft, which is a defining characteristic of the 442 Series. Output flanges are rotatable for clearance flexibility. Call us to confirm proper fit for your specific transmission application.

Features

Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft
Standard 6-bolt mount with metric studs
No-pressure-lube design
Cast iron housing with tapered cone bearings on the output shaft
Rotatable output flanges for installation clearance flexibility
Greaseable output shafts

Tech Specs

• Product Series: 442
• Gear Ratio: 0.391:1
• Shift Type: Air Shift
• Mounting Option: Standard Mount with Metric Studs
• Output Shaft: 1-1/4" Round Standard Shaft
• Input Gear Designator: AH
• Assembly: 3
• Lubricant: No Pressure Lube

Additional Information

The Chelsea 442 Series is designed to work with virtually all 6-bolt transmission applications. Typical vocational uses include dump trucks, tow trucks, service trucks, and aerial trucks. Thirty-six output options and multiple internal speed ratios make the 442 Series a versatile platform across light-to-medium duty markets including construction, forestry, snow and ice control, and fire and rescue. The 442 Series intermittent torque range for the series runs 201-300 lb-ft; consult the application pages for the actual torque rating specific to this configuration. Output power for the series spans 46-55 HP. Parker Chelsea documents available for this series include the 442 Series Owner's Manual, the 442 Series Parts List (HY25-2442-M1_US), and the Chelsea Service Manual (HY25-6442-M1/US).
