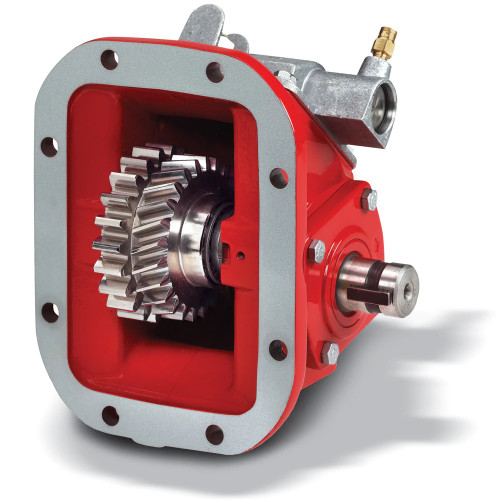

The Chelsea 442 Series Power Take-Off Assembly, part number 442KLJKX-A5GF or 442KLJKXA5GF, is a 6-bolt standard mount unit with metric studs, designed for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This assembly runs a 0.391:1 gear ratio with air shift actuation and a 1-1/4" round standard output shaft. The cast iron housing and tapered cone bearings on the output shaft deliver long service life under regular cycle loads. The greaseable output shaft and 360-degree rotatable output flange add service flexibility and clearance options at installation. The 442 Series intermittent torque range for the series runs 201-300 lb-ft; confirm the actual rating for your application before spec'ing. Call us to confirm proper fit for your transmission.
Features
Chelsea 442 Series, 6-bolt standard mount with metric studs
Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings on output shaft
Greaseable output shaft; 360-degree rotatable output flange for clearance adjustment
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
