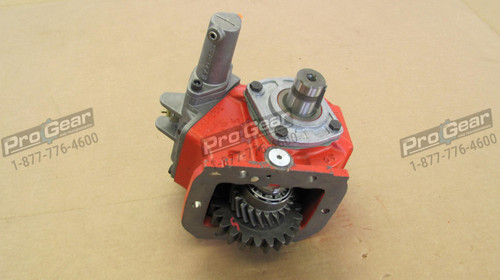

The Chelsea 442 Series Power Take-Off, part number 442ZFAHX-W3XK or 442ZFAHXW3XK, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, service trucks, tow trucks, and small aerial equipment. This unit runs a 0.391:1 gear ratio with air shift actuation, a standard mount with metric studs, and a 1-1/4" round standard output shaft. The cast iron housing and tapered cone bearings on the output shaft are characteristic of the 442 Series and contribute to extended service life under demanding cycles. No pressure lube is required for this configuration. Call us to confirm proper fit for your transmission and application.
Features
442 Series, 6-bolt transmission mounting with metric studs
Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings on output shaft
Greaseable output shafts; rotatable output flanges for improved clearance
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
