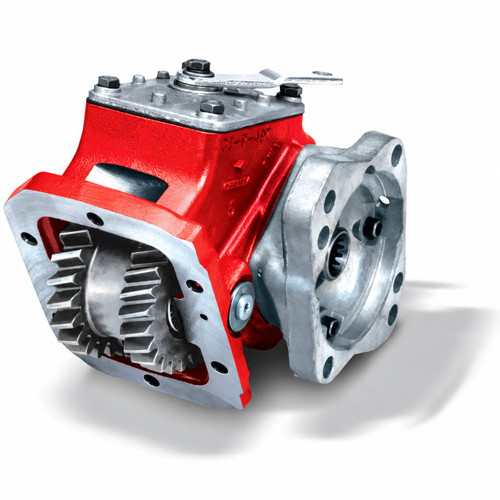

The Chelsea 447 Series Power Take-Off Assembly, part number 447XSESX-A5AF or 447XSESXA5AF, is built around a one-piece input gear with a space between its two sets of gear teeth. That design eliminates interference problems inside the transmission PTO opening on a wide range of transmissions, including Eaton/Fuller, ZF, and other manufacturers, without requiring an adapter plate. The 6-bolt mounting unit uses air shift; the 447 Series delivers up to 43 HP at 1,000 RPM. Intermittent torque ratings fall in the 201-300 lb-ft range; check the Chelsea 447 Series application pages for the actual rating confirmed to your specific installation. Call us to confirm proper fit for your application.
Features
Chelsea 447 Series, part number 447XSESX-A5AF or 447XSESXA5AF
6-bolt mounting, no adapter plate required
Shift type: air shift
Output shaft: SAE B 2 or 4-bolt flange with a 1" 15-tooth SAE BB shaft
Shaft power: 21 HP at 500 RPM, 43 HP at 1,000 RPM
Compatible transmissions include Eaton/Fuller, ZF, and other manufacturers
Tech Specs
- Intermittent Torque: 201-300 lb-ft (301-400 Nm); 225 lb-ft / 305 Nm - check application pages for actual torque rating
- Mounting Option: Standard Mount (X)
- Gear Ratio Code: S
- Input Gear Designator: ES
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift (A)
- Assembly Arrangement: 5
- Output Option: SAE B 2 or 4-Bolt Flange, SAE BB Shaft (1" 15T) (AF)
- Output Power: 36-45 HP (31-40 kW)
- Shaft Power: 21 HP at 500 RPM, 43 HP at 1,000 RPM (16 kW at 500 RPM, 32 kW at 1,000 RPM)
- Mounting Type: 6-Bolt
- Compatible Transmission Manufacturers: Eaton/Fuller, ZF, Other
