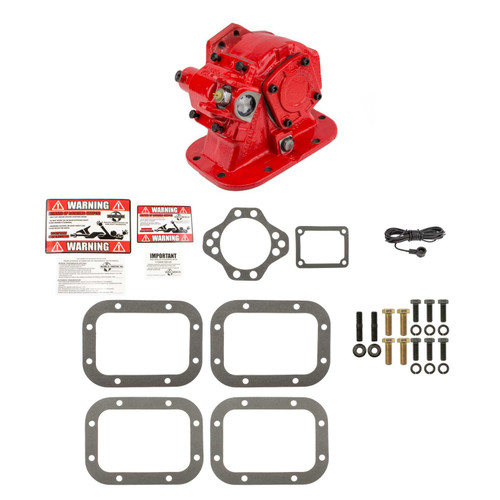

The Chelsea 489XHAHX-V5XK or 489XHAHXV5XK is a Series 489 Power Take-Off assembly built for 8-bolt manual transmission applications. It mounts directly to the transmission case using an integral 8-bolt housing that eliminates the need for an adapter plate, reducing potential leak paths. The wire/cable mechanical shift type gives direct, reliable engagement, and the 1-1/4" round output shaft (with keyed option) transfers power at up to 48 HP at 1,000 RPM. Intermittent torque rating is 250 lb-ft (339 Nm). Compatible with Eaton/Fuller, Volvo/Mack, and other transmissions with an 8-bolt PTO aperture. Internal parts are common to the Chelsea 442 Series, keeping service straightforward. Call us to confirm proper fit for your application.
Features
8-bolt integral housing mounts directly to transmission, eliminating the adapter plate and its associated leak path
Wire/cable mechanical shift type for direct, positive engagement
1-1/4" round output shaft (keyed option available)
Intermittent torque rating: 250 lb-ft (339 Nm)
Shaft power output: 24 HP at 500 RPM / 48 HP at 1,000 RPM
Internal parts common to Chelsea 442 Series for simplified servicing
Tech Specs
- PRODUCT SERIES: 489
- MOUNTING TYPE: 8-Bolt (integral housing, no adapter plate required)
- SHIFT TYPE: Wire/Cable Mechanical
- OUTPUT SHAFT TYPE: 1-1/4" Round / 1-1/4" Round with Key
- INTERMITTENT TORQUE: 250 lb-ft (339 Nm) - Check Application Pages for Actual Torque Ratings
- OUTPUT POWER: 46-55 HP (31-40 kW)
- SHAFT POWER: 500 RPM: 24 HP (18 kW) / 1,000 RPM: 48 HP (36 kW)
- TRANSMISSION MANUFACTURER: Eaton/Fuller, Volvo/Mack, Other (8-bolt PTO aperture)
- LUBRICANT: X = No Pressure Lube, P = Pressure Lube
