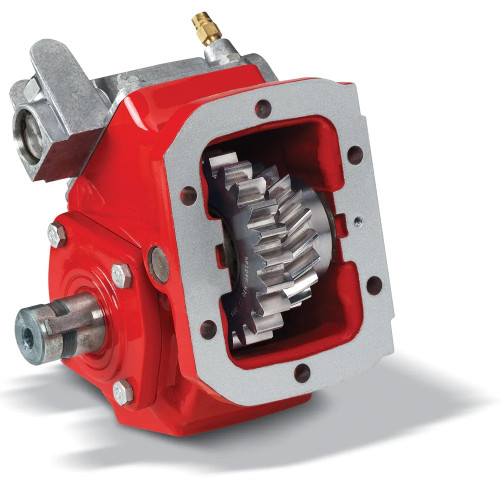

The Chelsea 489 Series Power Take-Off Assembly, part number 489XLAHX-V3GF or 489XLAHXV3GF, mounts directly to an 8-bolt transmission opening on most manual transmissions including Eaton Fuller, Eaton Endurant, Mack, and Tremec. The one-piece cast iron housing eliminates the need for an adapter plate, reducing both installation time and potential leak paths. Output is through a greaseable SAE B 2 or 4-bolt flange with a 1" 15-tooth SAE BB shaft. The series delivers intermittent torque in the 250 lb-ft (339 Nm) range and shaft power of 24 HP at 500 RPM and 48 HP at 1,000 RPM. Internal parts are common with the Chelsea 442 Series. Call Pro Gear and Transmission to confirm proper fit for your application.
Features
8-Bolt one-piece cast iron housing mounts directly to transmission opening, no adapter plate required
Air shift
Greaseable SAE B 2 or 4-bolt flange with a 1" 15-tooth SAE BB shaft; greaseable output options to reduce shaft spline fretting
Intermittent torque capacity in the 250 lb-ft (339 Nm) range; shaft power 24 HP at 500 RPM, 48 HP at 1,000 RPM
Internal parts common to the Chelsea 442 Series for broad parts availability
Kit-style design simplifies field service
Tech Specs
- PRODUCT SERIES: 489
- MOUNTING TYPE: 8-Bolt
- MOUNTING OPTION: Standard Mount (X)
- GEAR RATIO CODE: L (25/34)
- INPUT GEAR DESIGNATOR: AH
- LUBE OPTION: No Pressure Lube (X)
- SHIFT OPTION: Air Shift without Installation Kit (V)
- ASSEMBLY ARRANGEMENT: 3
- OUTPUT OPTION: Greaseable SAE B 2 or 4-Bolt Flange, SAE BB Shaft (1" 15T) (GF)
- INTERMITTENT TORQUE: 250 lb-ft (339 Nm) - Check Application Pages for Actual Torque Ratings
- OUTPUT POWER: 46-55 HP (31-40 kW)
- SHAFT POWER: 24 HP (18 kW) at 500 RPM; 48 HP (36 kW) at 1,000 RPM
- TRANSMISSION MANUFACTURER: Eaton/Fuller, Volvo/Mack, Other
