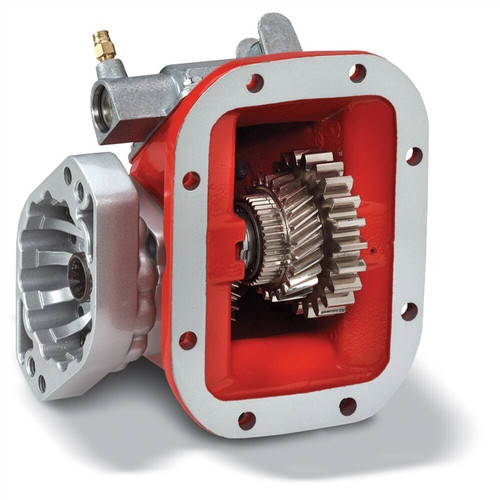

489ZHDAX-P5AF Chelsea PTO Assembly

The Chelsea 489 Series Power Take-Off Assembly, part number 489ZHDAX-P5AF or 489ZHDAXP5AF, mounts directly to an 8-bolt transmission opening with a one-piece cast iron housing that eliminates the adapter plate and reduces potential leak paths. This unit uses a 12V electric/air shift type and delivers up to 250 lb-ft intermittent torque, matching the torque capacity of the 442 Series. Output is through an SAE B 2 or 4-bolt flange with a 1" 15-tooth SAE BB shaft. The 489 Series is rated at 24 HP at 500 RPM and 48 HP at 1,000 RPM. Call us to confirm proper fit for your specific transmission.

Features

489 Series, 8-bolt direct-mount one-piece cast iron housing, no adapter plate required
12V electric/air shift type with electric over air shift option available in the series
SAE B 2 or 4-bolt flange with a 1" 15-tooth SAE BB shaft; no pressure lube configuration
Intermittent torque capacity: 250 lb-ft (339 Nm); shaft power 24 HP at 500 RPM, 48 HP at 1,000 RPM
Kit-style design with internal parts common to the Chelsea 442 Series simplifies service
Fits an 8-bolt PTO aperture

Tech Specs

• Product Series: 489
• Mounting Type: 8-Bolt (direct-mount, one-piece cast iron housing, no adapter plate)
• Mounting Option: Deep Mount (Z)
• Gear Ratio Code: H (23/35)
• Input Gear Designator: DA
• Lube Option: No Pressure Lube (X)
• Shift Option: 12V DC Electric/Air Shift (P)
• Assembly Arrangement: 5
• Output Option: SAE B 2 or 4-Bolt Flange, SAE BB Shaft (1" 15T) (AF)
• Intermittent Torque: 250 lb-ft (339 Nm), check application pages for actual torque ratings
• Output Power: 46-55 HP (31-40 kW)
• Shaft Power: 24 HP (18 kW) at 500 RPM; 48 HP (36 kW) at 1,000 RPM
• Transmission Compatibility: Eaton Fuller, Mack, Tremec, and other manual transmissions with 8-bolt aperture
