680GFAHX-A3GF Chelsea PTO Assembly

Chelsea

Listing Price: $5,192.28
Sale Price: $2,855.75
(No reviews yet) Write a Review
Product Code:
CHL680GFAHXA3GF
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added

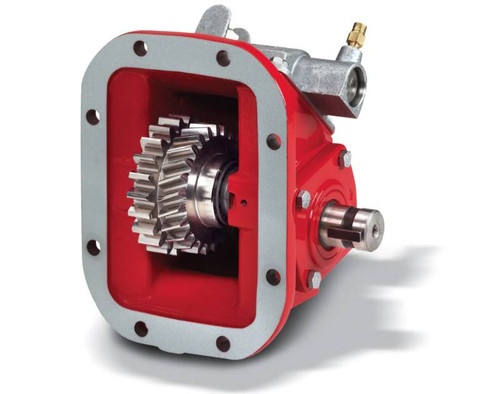

The Chelsea 680 Series Power Take-Off Assembly, part number 680GFAHX-A3GF or 680GFAHXA3GF, is a medium- to heavy-duty PTO built for 8-bolt transmission apertures. It operates with a wire/cable mechanical shift and delivers an intermittent torque rating of 375 lb-ft (508 Nm) - check application pages for actual torque ratings for your specific setup. The 1-1/4" round output shaft with key accommodates high-demand driven equipment. Shaft power output reaches 36 HP at 500 RPM, 71 HP at 1,000 RPM, and 107 HP at 1,500 RPM. The deep-mount housing option makes this a fit for Mack transmission applications, and the cast iron housing with tapered cone bearings on the output shaft contributes to its torque capacity and service life. Compatible with Eaton/Fuller and Volvo/Mack transmissions. A genuine Chelsea part from Pro Gear and Transmission. Call us to confirm proper fit for your application.

Features

8-bolt mounting type for broad manual transmission coverage
Wire/cable mechanical shift type
Intermittent torque rating: 375 lb-ft / 508 Nm (verify on application pages for your specific transmission)
Output shaft: 1-1/4" round with key
Shaft power: 36 HP at 500 RPM, 71 HP at 1,000 RPM, 107 HP at 1,500 RPM
Deep-mount housing option available for Mack transmission applications

Tech Specs

  • Intermittent Torque: 375 lb-ft / 508 Nm (Check Application Pages for Actual Torque Ratings)
  • Shift Type: Wire/Cable, Mechanical
  • Output Power: 56+ HP / 51+ kW
  • Transmission Manufacturer Compatibility: Eaton/Fuller, Volvo/Mack, Other
  • Output Shaft Type: 1-1/4" Round, 1-1/4" Round with Key
  • Mounting Type: 8-Bolt
  • Shaft Power: 36 HP (500 RPM), 71 HP (1,000 RPM), 107 HP (1,500 RPM) / 27 kW (500 RPM), 53 kW (1,000 RPM), 80 kW (1,500 RPM)

Additional Information

Chelsea 680 PTO model break down
Equivalent PTOs:

Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
