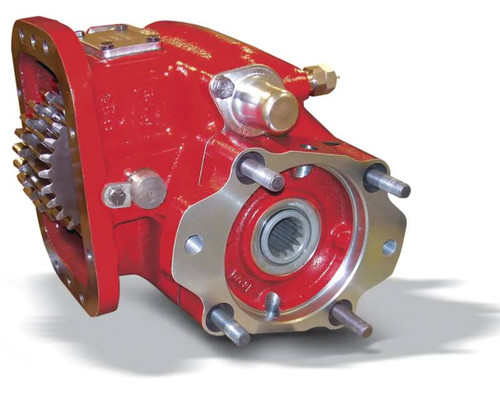

The Chelsea 823XJAHP-M3XV or 823XJAHPM3XV is a heavy-duty Power Take-Off assembly from the Chelsea 823 Series, engineered for high-torque applications including oil field service, logging, pumper/cleaner trucks, and mining equipment. It mounts via an 8-bolt pattern and fits automatic and manual transmissions from Allison, Eaton/Fuller, Volvo/Mack, and other manufacturers. Shift type is lever/mechanical. The output shaft is a 1-1/2" 10-tooth spline with a 1410 Series companion flange. Intermittent torque rating for this series reaches 500 lb-ft (678 Nm) -- verify actual rating on the Chelsea application pages for your specific installation. Shaft output is 48 HP at 500 RPM and 95 HP at 1000 RPM. Continuous operation is supported with a 30% de-rating. Available from Pro Gear and Transmission -- call us to confirm proper fit for your transmission and application.
Features
8-Bolt mounting pattern fits automatic and manual transmissions including Allison, Eaton/Fuller, and Volvo/Mack
Lever/mechanical shift type
1-1/2" 10-tooth spline output with 1410 Series companion flange
Intermittent torque up to 500 lb-ft (678 Nm) -- check application pages for actual rating
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Direct mount pump output; continuous operation supported with 30% de-rating
Tech Specs
- Intermittent Torque: 500 lb-ft / 678 Nm (Check Application Pages for Actual Torque Ratings)
- Shift Type: Lever, Mechanical
- Output Power: 56+ HP / 51+ kW
- Transmission Manufacturer: Allison, Eaton/Fuller, Volvo/Mack, Other
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Series Companion Flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP (500 RPM), 95 HP (1000 RPM) / 36 kW (500 RPM), 71 kW (1000 RPM)
- Continuous Operation: Yes, with 30% de-rating
Additional Information
Parts Manual: Chelsea 823 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
