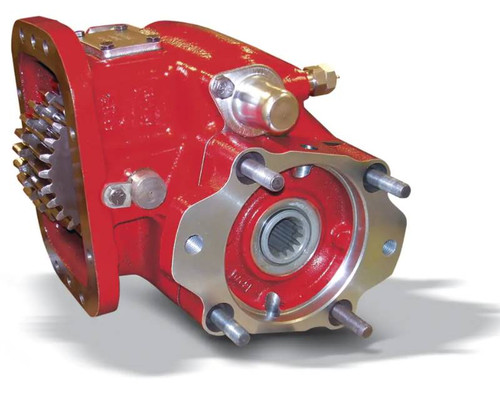

The Chelsea 823 Series Power Take-Off Assembly, part number 823XMAHX-V3XS or 823XMAHXV3XS, is a heavy-duty mechanical shift PTO built for the highest torque demands in the field. It mounts via an 8-bolt pattern and fits automatic and manual transmissions from Eaton/Fuller, Volvo/Mack, Allison, and other manufacturers. The output shaft is a 1-1/2"-10T spline with a 1410 Series companion flange for direct driveline connection. Intermittent torque rating reaches 500 lb-ft (678 Nm); shaft output is rated at 48 HP at 500 RPM and 95 HP at 1000 RPM. Both lever and air shift configurations are available in the 823 Series. Proven in oil field, logging, pumper/cleaner trucks, and mining applications. Call us to confirm proper fit for your specific transmission and application.
Features
Extra heavy-duty 8-bolt mounting pattern fits automatic and manual transmissions
Lever and mechanical shift type; air shift also available in the 823 Series
Intermittent torque rating: 500 lb-ft (678 Nm) - check application pages for actual torque ratings
Output shaft: 1-1/2" - 10T spline with 1410 Series companion flange
Shaft power output: 48 HP at 500 RPM, 95 HP at 1000 RPM
Compatible with Eaton/Fuller, Volvo/Mack, Allison, and other transmission manufacturers
Tech Specs
- Intermittent Torque: 500 lb-ft / 678 Nm (Check Application Pages for Actual Torque Ratings)
- Shift Type: Lever, Mechanical (Air Shift also available in series)
- Output Power: 56+ HP / 51+ kW
- Transmission Manufacturer: Eaton/Fuller, Volvo/Mack, Allison, Other
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Series Companion Flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP (500 RPM), 95 HP (1000 RPM) / 36 kW (500 RPM), 71 kW (1000 RPM)
- Continuous Operation: Yes, with 30% de-rating
