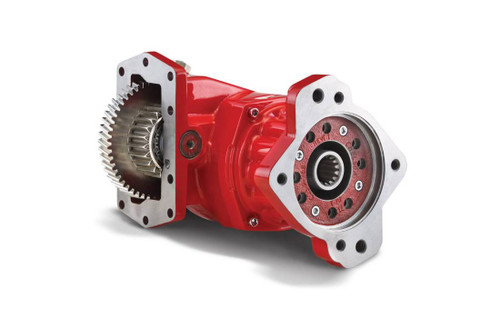

The Chelsea 871LCFJW-D5TF or 871LCFJWD5TF is a 10-bolt PowerShift (hydraulic shift) Power Take-Off from the Chelsea 871 Series, designed for Allison transmission applications. The 871 Series carries a continuous-duty torque rating up to 670 lb-ft (908 N-m) with no derating required for continuous operation. Nine speed ratios and thirteen output configurations give this unit broad installation flexibility, while the compact housing keeps clearance issues in check. A ductile iron bearing cap rated 117% stronger than gray iron, combined with an O-ring sealing configuration between the housing and bearing cap, addresses the vibrational loads common with modern engine designs. Optional Wet Spline pump flange, SmartStart, Quiet Gear input, and Electronic Overspeed Control (EOC) extend equipment protection across demanding vocational cycles including fire and rescue, refuse, truck cranes, and pumper-cleaner applications. Call us to confirm proper fit for your specific Allison transmission and application.
Features
10-bolt PowerShift (hydraulic) mounting for Allison transmission applications
Continuous-duty torque rating up to 670 lb-ft (908 N-m) - no derating required
Ductile iron bearing cap, 117% stronger than gray iron
O-ring sealing configuration between housing and bearing cap reduces vibrational effects and improves clamp load
Nine speed ratios and thirteen output options for broad installation flexibility
Optional Wet Spline pump flange, SmartStart shock-load reduction, Quiet Gear input, and Electronic Overspeed Control (EOC)
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: PowerShift (Hydraulic)
- Transmission Manufacturer: Allison
- Continuous Torque: 670 lb-ft (908 N-m)
- Speed Ratios: Nine
- Output Options: Thirteen
- Output Shaft Types: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Output Types: SAE B Pump Flange, SAE C Pump Flange
- Lubricant: Pressure Lube (P), Wet Spline (W)
- Continuous Operation: Yes
- Shaft Power: 64 HP (500 RPM), 128 HP (1000 RPM)
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
