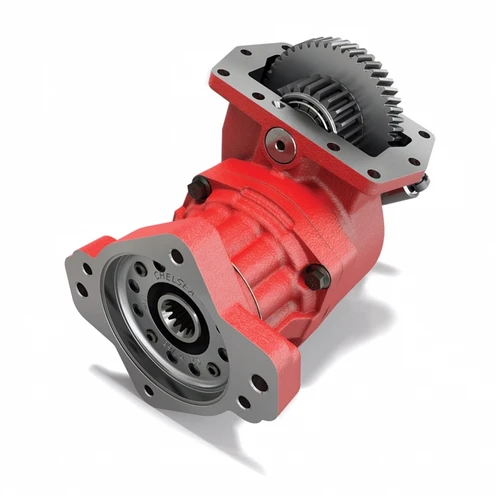

The Chelsea 871LDFJW-B5TZ or 871LDFJWB5TZ is a 10-bolt PowerShift (hydraulic) Power Take-Off from Chelsea's 871 Series, engineered for Allison transmission applications. The series delivers continuous torque capacity up to 670 lb-ft (908 N-m) with no derating required for continuous-duty operation. A ductile iron bearing cap rated 117% stronger than gray iron handles the vibrational stress common with modern engine designs, and an O-ring sealing configuration between the housing and bearing cap improves clamp load and sealing reliability. Nine gear ratios and thirteen output options give this PTO broad application flexibility across fire and rescue, refuse, truck crane, and pumper-cleaner equipment. Optional Wet Spline, SmartStart, and Quiet Gear configurations are available within the 871 Series. The 871 Series replaces the Chelsea 870 Series. Call us to confirm the right configuration for your application.
Features
10-bolt PowerShift (hydraulic) mounting for Allison transmissions
Continuous torque capacity up to 670 lb-ft / 908 N-m, no derating for continuous duty
Ductile iron bearing cap, 117% stronger than gray iron, resists modern engine vibration
O-ring sealing configuration between housing and bearing cap for improved clamp load
Nine speed ratios and thirteen output options for flexible application fit
Optional Wet Spline pump flange, SmartStart, and Quiet Gear configurations available within the series
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: PowerShift (Hydraulic)
- Transmission Manufacturer: Allison
- Continuous Torque Capacity: 670 lb-ft / 908 N-m (check application pages for actual torque ratings)
- Shaft Power: 64 HP at 500 RPM / 128 HP at 1,000 RPM
- Speed Ratios: Nine
- Output Options: Thirteen
- Output Shaft Types: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Output Flange Types: SAE B Pump Flange, SAE C Pump Flange
- Lubrication: Pressure Lube with Wet Spline
- Continuous Operation: Yes
- Replaces: Chelsea 870 Series
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
