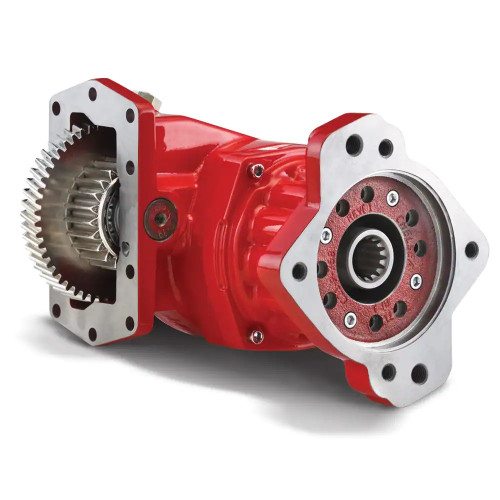

The Chelsea 871LFFJW-B5TF or 871LFFJWB5TF is a heavy-duty 871 Series Power Takeoff assembly engineered for demanding truck and vocational applications. Torque capacity reaches 670 lb-ft (908 N-m), supported by a ductile iron bearing cap rated 117% stronger than gray iron. Nine speed ratios cover both low- and high-speed needs, while thirteen output options accommodate a wide range of driven equipment configurations. A wet spline pump flange protects both the PTO and pump shaft during operation. Electronic Overspeed Control (EOC) guards driven equipment, and an optional SmartStart feature reduces shock load at start-up. The compact housing profile minimizes clearance conflicts during installation. Call us to confirm proper fit for your specific transmission and application.
Features
Torque capacity up to 670 lb-ft / 908 N-m
Ductile iron bearing cap, 117% stronger than gray iron
Nine speed ratios including low and high speed ranges
Thirteen output options for flexible driven equipment hookup
Wet spline pump flange extends PTO and pump shaft service life
Electronic Overspeed Control (EOC) protects driven equipment
Optional SmartStart reduces shock load at start-up
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
