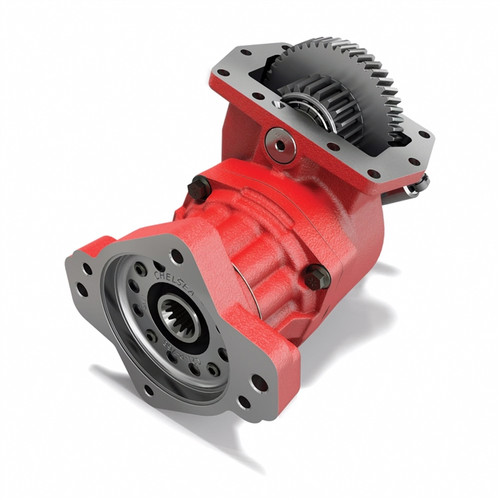

The Chelsea 871XDFJP-D5RF or 871XDFJPD5RF is a 10-bolt PowerShift (hydraulic) Power Take-Off from the 871 Series, designed for Allison transmission applications. This series replaces the earlier 870 Series PTO and brings several structural improvements: a ductile iron bearing cap rated 117% stronger than gray iron, and an O-ring sealing configuration between the housing and bearing cap that reduces vibrational effects while improving clamp load. Continuous-duty rated up to 670 lb-ft (908 N-m) of torque, the 871 Series offers nine speed ratios and thirteen output configurations. It is the only Chelsea PTO to combine all three of Chelsea's signature options: Wet Spline lubrication, SmartStart shock-load reduction, and Quiet Gear input. Call us to confirm proper fit for your application.
Features
10-bolt PowerShift (hydraulic) mounting for Allison transmissions
Ductile iron bearing cap, 117% stronger than gray iron
O-ring seal between housing and bearing cap reduces vibrational effects and improves clamp load
Continuous-duty torque capacity up to 670 lb-ft (908 N-m)
Nine speed ratios and thirteen output options
Only Chelsea PTO to offer Wet Spline, SmartStart, and Quiet Gear options together
Electronic Overspeed Control (EOC) available to protect driven equipment
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: PowerShift (Hydraulic)
- Transmission Manufacturer: Allison
- Continuous Torque: 670 lb-ft / 908 N-m (verify actual rating on application pages)
- Shaft Power: 64 HP at 500 RPM / 128 HP at 1,000 RPM
- Speed Ratios: Nine
- Output Options: Thirteen
- Output Shaft Types: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Output Flange Types: SAE B Pump Flange, SAE C Pump Flange
- Lubrication: Pressure Lube and Wet Spline
- Continuous Operation: Yes
- Optional Features: Quiet Gear Input, SmartStart, Electronic Overspeed Control (EOC), Wet Spline Pump Flange
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
