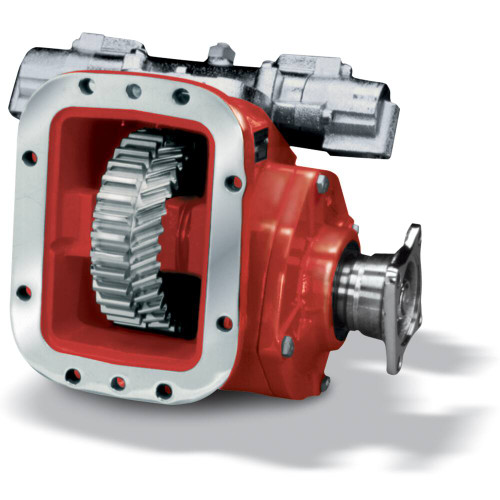

The Chelsea 880DGMAX-V6XV or 880DGMAXV6XV is an 880 Series Power Take-Off assembly built for heavy-duty, high-torque applications on 8-bolt manual transmissions. It uses a lever mechanical shift and delivers up to 500 lb-ft intermittent torque, with shaft power rated at 48 HP at 500 RPM and 95 HP at 1,000 RPM. The output shaft is a 1-1/2"-10 tooth spline with a 1410 companion flange, and the 8-bolt mounting pattern fits a wide range of transmissions including Eaton/Fuller, Volvo/Mack, and Allison. Constant mesh input gears and tapered cone bearings handle high and low speed loads. The dual-pump output lets you mount a hydraulic pump on each end of the unit. Typical applications include bulk haulers, fire trucks, oil field equipment, winch systems, and large recovery trucks. Call us to confirm proper fit for your specific transmission.
The Chelsea 880 Series is designed for continuous operation with a 30% de-rating applied. Output flange options within the 880 Series include SAE B, SAE C, and ISO 7652 pump flanges in addition to the 1410 driveline companion flange on this assembly. The 880 Series is compatible with the Eaton Endurant transmission and supports optional air control shift configurations. Compatible applications span bulk haulers, fire trucks, oil field rigs, aerial equipment, winch systems, and large truck recovery operations.
Features
8-bolt mounting pattern fits a wide range of manual transmissions including Eaton/Fuller, Volvo/Mack, and Allison
Lever mechanical shift with constant mesh input gears for high and low speed, high torque operation
500 lb-ft intermittent torque rating; shaft power 48 HP at 500 RPM and 95 HP at 1,000 RPM
1-1/2"-10 tooth spline output shaft with 1410 series companion flange
Dual-pump output allows a hydraulic pump to be mounted on each end of the PTO
Removable shift cover simplifies backlash adjustment during installation
Tech Specs
- INTERMITTENT TORQUE: 500 lb-ft (678 Nm) - Check Application Pages for Actual Torque Ratings
- TRANSMISSION MANUFACTURER: Eaton/Fuller, Volvo/Mack, Allison, Other
- SHIFT TYPE: Lever Mechanical
- OUTPUT SHAFT TYPE: 1-1/2" - 10 Tooth Spline with 1410 Companion Flange
- MOUNTING TYPE: 8-Bolt
- OUTPUT POWER: 56+ HP (51+ kW)
- SHAFT POWER: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1,000 RPM
Additional Information
The Chelsea 880 Series is designed for continuous operation with a 30% de-rating applied. Output flange options within the 880 Series include SAE B, SAE C, and ISO 7652 pump flanges in addition to the 1410 driveline companion flange on this assembly. The 880 Series is compatible with the Eaton Endurant transmission and supports optional air control shift configurations. Compatible applications span bulk haulers, fire trucks, oil field rigs, aerial equipment, winch systems, and large truck recovery operations.
Parts Manual: Chelsea 880 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
