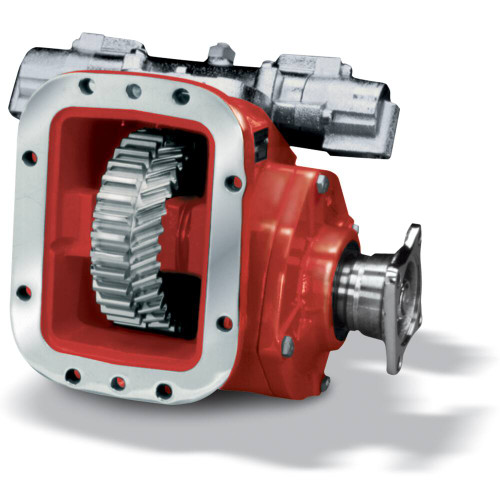

The Chelsea 880DMMCX-V6XS or 880DMMCXV6XS is an 880 Series Power Take-Off built for heavy-duty, high-torque applications on 8-bolt manual transmissions. It delivers lever mechanical shift operation and a 1-1/2"-10 spline output shaft fitted with a 1410 companion flange, rated for intermittent torque up to 500 lb-ft (678 Nm). Shaft power runs 48 HP at 500 RPM and 95 HP at 1000 RPM, putting it in the 56+ HP output class. The cast iron housing is matched with a removable shift cover for straightforward backlash adjustment. Typical applications include bulk haulers, fire trucks, oil field equipment, winch systems, and large recovery trucks. Compatible with Volvo/Mack, Allison, Eaton/Fuller, and other transmission families. Call us to confirm proper fit for your specific transmission.
Features
8-bolt mounting for compatibility with most manual transmissions including Volvo/Mack, Allison, and Eaton/Fuller
Lever mechanical shift operation
1-1/2"-10 spline output shaft with 1410 series companion flange
Intermittent torque rating up to 500 lb-ft (678 Nm)
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Dual-pump output allows a hydraulic pump to be mounted on each end of the PTO
Removable shift cover enables simple backlash adjustment during installation
Rugged cast iron housing
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Lever Mechanical
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Series Companion Flange
- Intermittent Torque: 500 lb-ft (678 Nm) - Check Application Pages for Actual Torque Ratings
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1000 RPM
- Transmission Compatibility: Volvo/Mack, Allison, Eaton/Fuller, Other
- Housing Material: Cast Iron
Additional Information
Parts Manual: Chelsea 880 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
