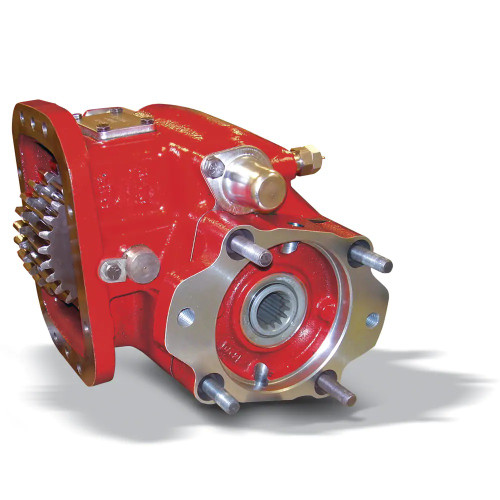

The Chelsea 880 Series Power Take-Off, part number 880ZRBGX-Y3XS or 880ZRBGXY3XS, is an 8-bolt, lever-mechanical-shift PTO rated for up to 500 lb-ft intermittent torque (678 Nm). Output is a 1-1/2"-10T spline shaft with a 1410 companion flange, delivering 48 HP at 500 RPM and 95 HP at 1000 RPM. Compatible with Volvo/Mack, Allison, Eaton/Fuller, and other manual transmissions using an 8-bolt aperture. The 880 Series suits demanding applications including bulk haulers, fire trucks, oil field equipment, and large recovery trucks. A genuine Chelsea part sold by Pro Gear and Transmission. Call us to confirm proper fit for your specific transmission and application.
Features
8-bolt mounting fits most manual transmissions including Volvo/Mack, Allison, and Eaton/Fuller applications
Lever mechanical shift with optional air control shift availability across the 880 Series
1-1/2"-10T spline output shaft with 1410 companion flange for driveline connection
Intermittent torque rating up to 500 lb-ft (678 Nm); check application pages for actual torque ratings
Shaft power output: 48 HP at 500 RPM, 95 HP at 1000 RPM
Removable shift cover allows backlash adjustment without removing the PTO from the transmission
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Lever Mechanical
- Transmission Compatibility: Volvo/Mack, Allison, Eaton/Fuller, Other
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Companion Flange
- Intermittent Torque: 401-500 lb-ft (501+ Nm); rated 500 lb-ft (678 Nm) - check application pages for actual torque ratings
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1000 RPM
- Continuous Operation: Yes, with 30% de-rating
