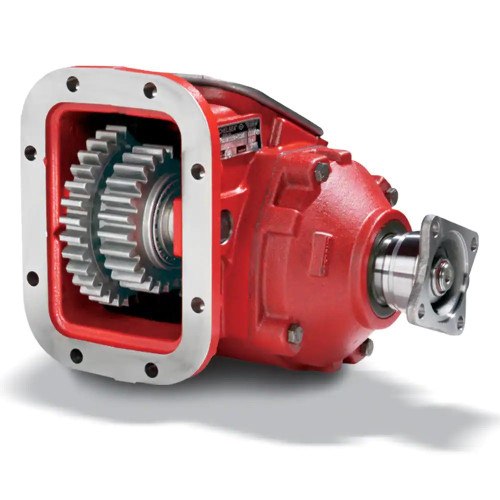

The Chelsea 885 Series Power Take-Off Assembly, part number 885GBAHX-P3XV or 885GBAHXP3XV, is an 8-bolt hydraulic PowerShift PTO built for heavy-duty vocational truck applications. It fits automatic and manual transmissions from Allison, Eaton/Fuller, Volvo/Mack, and other manufacturers with an 8-bolt PTO aperture. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange. Intermittent torque capacity for this series reaches up to 500 lb-ft (678 Nm); verify actual ratings for your application on the Chelsea application pages. Shaft power output is rated at 48 HP at 500 RPM and 95 HP at 1,000 RPM. The cast iron housing and heavy-duty ball bearings on the output shaft are designed for Oil and Gas, Water Drilling, Bulk Transporter, and Fire and Rescue service. Pressure lubrication is available. Call us to confirm proper fit for your specific transmission.
Features
8-Bolt mounting for automatic and manual transmissions including Allison, Eaton/Fuller, and Volvo/Mack
Hydraulic PowerShift (PowerShift) engagement
Intermittent torque capacity up to 500 lb-ft (678 Nm) for this series; check application pages for your rated value
Output shaft: 1-1/2"-10T spline with 1410 companion flange
Shaft power: 48 HP at 500 RPM, 95 HP at 1,000 RPM
Rugged cast iron housing with heavy-duty ball bearings; pressure lubrication available
Tech Specs
- Intermittent Torque: Up to 500 lb-ft (678 Nm) - check application pages for actual rated value
- Shift Type: Hydraulic PowerShift
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Companion Flange
- Mounting Type: 8-Bolt
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1,000 RPM
- Transmission Compatibility: Allison, Eaton/Fuller, Volvo/Mack, and other 8-bolt aperture transmissions
- Continuous Operation: Yes, with 30% de-rating
- Pressure Lubrication: Available
Additional Information
Parts Manual: Chelsea 885 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
