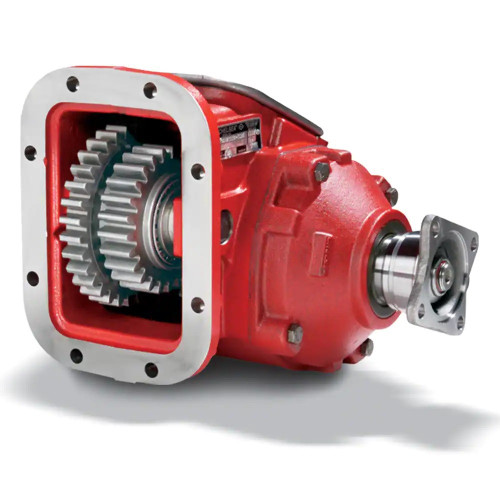

The Chelsea 885GJAHX-P3XV or 885GJAHXP3XV is an 8-bolt Hydraulic PowerShift Power Take-Off assembly from the Chelsea 885 Series, built for heavy-duty vocational applications. It mounts to transmissions with an 8-bolt PTO aperture, including Eaton/Fuller, Allison, and Volvo/Mack units. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange. Intermittent torque capacity for the 885 Series reaches up to 500 lb-ft (678 Nm); check the Chelsea application pages for the actual rating for this specific configuration. Shaft power output is rated at 48 HP at 500 RPM and 95 HP at 1000 RPM. The cast iron housing and heavy-duty ball bearings on the output shaft are built for continuous-duty cycles. Pressure lubrication is available in this configuration. Call us to confirm proper fit for your transmission and application.
Features
8-Bolt mounting, compatible with Eaton/Fuller, Allison, and Volvo/Mack transmission apertures
Hydraulic PowerShift (PowerShift) engagement
1-1/2"-10T spline output shaft with 1410 series companion flange
Intermittent torque capacity up to 500 lb-ft (678 Nm) for the 885 Series - verify rating for this configuration
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Rugged cast iron housing with pressure lubrication available
Tech Specs
- Intermittent Torque: Up to 500 lb-ft (678 Nm) - Check Application Pages for actual torque rating
- Shift Type: Hydraulic PowerShift
- Output Power: 56+ HP (51+ kW)
- Transmission Compatibility: Eaton/Fuller, Allison, Volvo/Mack, and other 8-bolt aperture transmissions
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Series Companion Flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP (500 RPM), 95 HP (1000 RPM) / 36 kW (500 RPM), 71 kW (1000 RPM)
- Continuous Operation: Yes, with 30% de-rating
