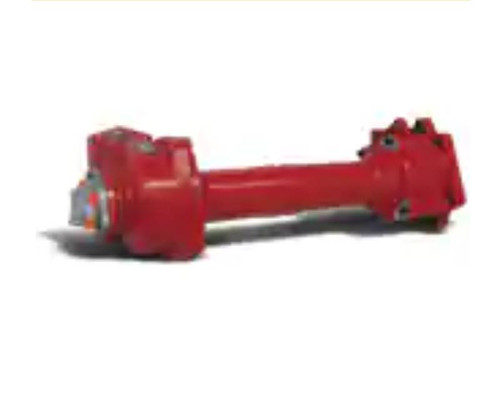

The Chelsea 890 Series Power Take-Off, part number 890RAFJW-B5XK or 890RAFJWB5XK, is a hydraulic PowerShift PTO engineered specifically for Allison 3000 MD and 4000 HD Series transmissions. The 890 Series mounts via a 10-bolt pattern and positions the pump output flange at the rear of the transmission, providing additional clearance between the PTO and the frame rail. A one-piece main shaft eliminates input splines between the PTO and output extension, and the SAE C ("XS") output uses Wet Spline Technology to extend pump shaft life under demanding duty cycles. Continuous torque reaches up to 670 ft-lb, with shaft power of 64 HP at 500 RPM and 128 HP at 1,000 RPM. Common applications include aerial trucks, fire and rescue trucks, refuse trucks, and truck cranes. Available from Pro Gear and Transmission. Call us to confirm proper fit for your specific transmission configuration.
Features
10-bolt mounting for Allison 3000 MD and 4000 HD Series transmissions
Hydraulic PowerShift (hot shift) engagement
SAE C ("XS") output with Wet Spline Technology for extended pump shaft life
Continuous torque rating up to 670 ft-lb; intermittent torque 501+ ft-lb
Shaft power: 64 HP at 500 RPM, 128 HP at 1,000 RPM
One-piece main shaft positions pump flange at rear of transmission for improved clearance
Tech Specs
- Transmission Application: Allison 3000 MD and 4000 HD Series
- Product Series: 890
- Mounting Type: 10-Bolt
- Shift Type: Hydraulic PowerShift
- Output Shaft Type: SAE C ("XS") Wet Spline Output
- Outlet Flange Type: SAE C
- Continuous Torque: 670 ft-lb (check application pages for actual torque ratings)
- Intermittent Torque: 501+ ft-lb
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 64 HP (48 kW) at 500 RPM; 128 HP (95 kW) at 1,000 RPM
- Lubricant: Wet Spline
