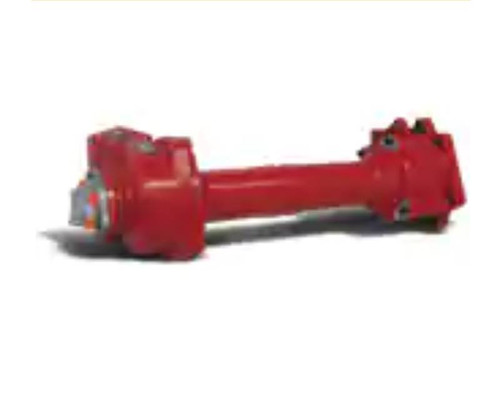

The Chelsea 892 Series Power Take-Off Assembly, part number 892HDFJW-B5XK or 892HDFJWB5XK, is a hydraulic PowerShift PTO engineered specifically for Allison 3000 MD and 4000 HD Series transmissions. Its 10-bolt mounting and SAE C outlet flange position the pump output to the rear of the transmission, moving the PTO/pump mounting flange rearward to open clearance between the pump and the frame rail. The one-piece main shaft eliminates input splines between the PTO and output extension, and the clutch is located at the rear of the housing so the gear section tucks tightly against the transmission. Continuous-duty torque reaches 670 ft-lb; intermittent torque is rated above 501 ft-lb. The SAE C (XS) output uses Wet Spline technology to extend PTO and pump shaft life under demanding duty cycles. Shaft power output is 64 HP at 500 RPM and 128 HP at 1,000 RPM. Common applications include aerial trucks, fire and rescue trucks, refuse trucks, and truck cranes. Available from Pro Gear and Transmission. Call us to confirm proper fit for your specific Allison transmission configuration.
Features
Hydraulic PowerShift (hot shift) operation for Allison 3000 MD and 4000 HD Series transmissions
10-bolt mounting with SAE C outlet flange; positions pump output to the rear of the transmission for improved clearance
One-piece main shaft eliminates input splines between PTO body and output extension
Wet Spline output extends PTO and pump shaft life in high-demand applications
Continuous-duty torque rating up to 670 ft-lb; intermittent torque rated above 501 ft-lb
Shaft power output: 64 HP at 500 RPM, 128 HP at 1,000 RPM
Tech Specs
- Product Series: 892
- Input Gear Designator: FJ - Allison 3000 MD and 4000 HD Series
- Shift Type: Hydraulic PowerShift (hot shift)
- Mounting Type: 10-Bolt
- Outlet Flange Type: SAE C
- Output Shaft Type: SAE C (XS) Extended
- Lubricant: W - Wet Spline
- Assembly Code: 5
- Continuous Torque: 670 ft-lb / 908 Nm (verify actual rating on application pages)
- Intermittent Torque: 501+ ft-lb / 501+ Nm
- Output Power: 56+ HP / 51+ kW
- Shaft Power at 500 RPM: 64 HP / 48 kW
- Shaft Power at 1,000 RPM: 128 HP / 95 kW
Additional Information
Parts Manual: Chelsea 892 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
