Chelsea PTO 892 Series Parts Manual

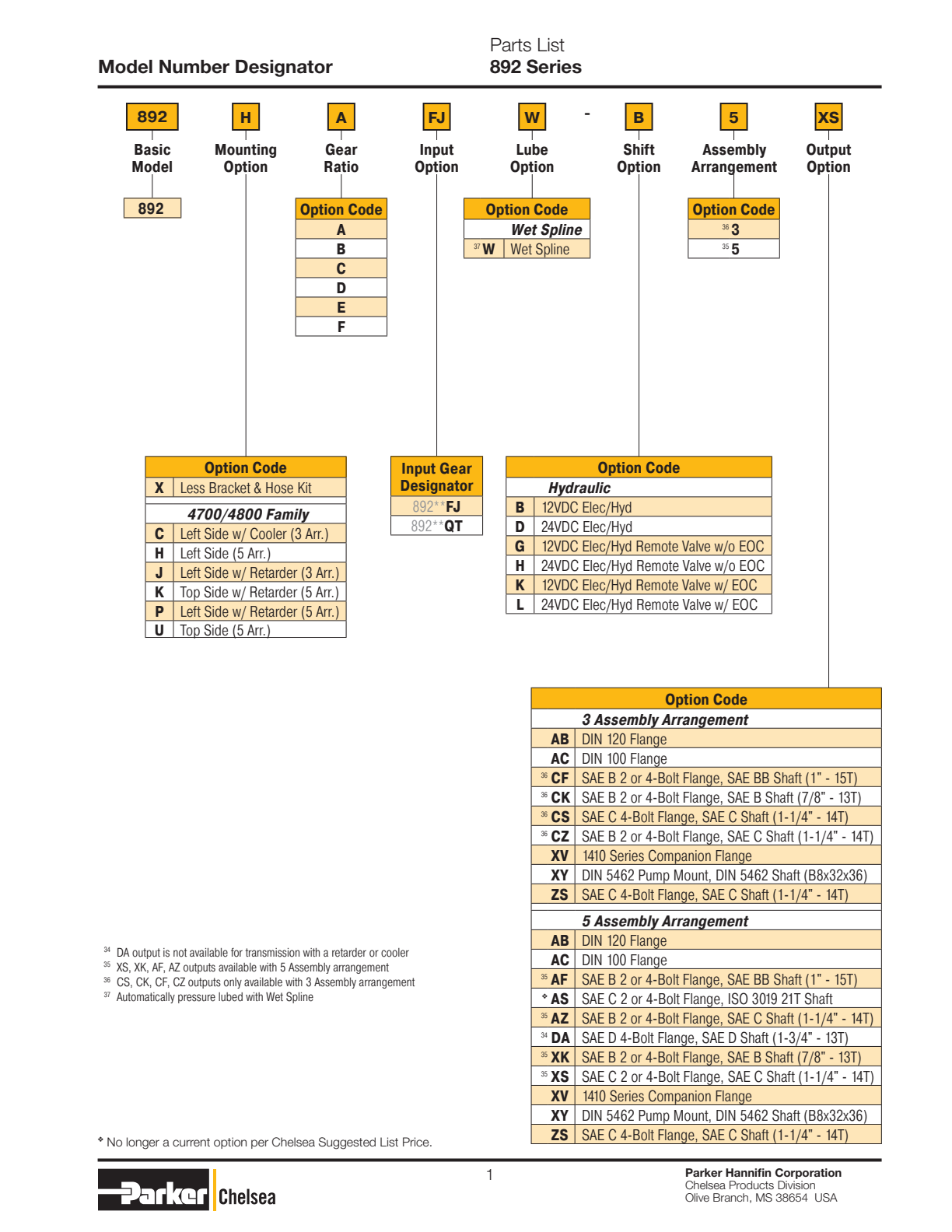

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Parts List Bill of Materials 892 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P629 | Housing (5 Arrangement) | 1 or | $544.27 | Add to Cart | |
| 1P631 | Housing (3 Arrangement) | 1 or | $1,098.32 | Add to Cart | ||
| 1P658 | Housing (p Mounting Only) | 1 | $493.53 | Add to Cart | ||
| 2 | 54P25 | Bearing Retainer | 1 or | $1,895.49 | Add to Cart | |
| 54P32 | Bearing Retainer W/ Retarder (j Mounting) | 1 | $1,660.96 | Add to Cart | ||
| 3 | 329661X | Drive Shaft & Clutch Assembly | 1 | $3,406.28 | Add to Cart | |
| 4 | 550026 | Ball Bearing (1 .771 " X 3 .937 " X .984") | 1 | $222.70 | Add to Cart | |
| 5 | 379668 | Lockring | 3 | $3.21 | Add to Cart | |
| 7 | 560972 | Roller Needle Bearing Assembly (1 .500" X 1 .875" X 1 .000") Sold As Kit | 1 | $32.22 | Add to Cart | |
| 10 | 380064 | Lockring | 1 | $14.60 | Add to Cart | |
| 561026 | Tapered Bearing Cone (1 .181 " X .984) | 2 | $131.13 | Add to Cart | ||
| 12 | 9P99 | Idler Shaft (1 .180") | 1 | $273.42 | Add to Cart | |
| 13 | 28P42 | O-ring (1 .051 " X .070") | 1 | $3.59 | Add to Cart | |
| 14A | 14P821 | Spacer (1 .191 " X 1 .750" X .080") (thickness As Required) | 1 | $43.74 | Add to Cart | |
| 14B | 14P821 | Spacer (1 .191 " X 1 .750" X .080") | A.R. | $43.74 | Add to Cart | |
| 14P822 | Spacer (1 .191 " X 1 .750" X .085") | A.R. | $43.74 | Add to Cart | ||
| 14P823 | Spacer (1 .191 " X 1 .750" X .090") | A.R. | $43.74 | Add to Cart | ||
| 14P824 | Spacer (1 .191 " X 1 .750" X .094") | A.R. | $43.74 | Add to Cart | ||
| 15 | 3784527 | 1/4" Socket Head Set Screw (.250" -20 X .500") | 1 | $4.37 | Add to Cart | |
| 16 | 28P245 | O-ring (5 .017 " X .103") (all Pump Flange Outputs) | 2 or | $45.00 | Add to Cart | |
| 28P245 | O-ring (5 .017 " X .103") (xv, Ab, Ac Outputs) (all Companion Flange Outputs) | 3 | $45.00 | Add to Cart | ||
| 17 | 379242 | Straight Adapter (.125" -27 X .750" -16) (w/o Eoc Only) | 1 | $22.23 | Add to Cart | |
| 18 | 379231 | Pipe Plug (.125" -27) (w/o Eoc Only) | 1 | $1.50 | Add to Cart | |
| 19 | 37943318 | 5/16" Socket Head Cap Screw (.375" -16 X 4.500") | 4 | $20.84 | Add to Cart | |
| 20 | 33017512X | 12VDC Valve Cap Assembly | 1 or | $419.56 | Add to Cart | |
| 33017524X | 24VDC Valve Cap Assembly | 1 | — | Call for availability | ||
| 21 | 22P112 | Valve Cap Gasket | 1 | $20.18 | Add to Cart | |
| 22 | 3784476 | 1/4" Socket Head Cap Screw (.312 " -18 X 1 .000") | 3 | $4.33 | Add to Cart | |
| 23 | 68P511 | Adhesive Label | 1 | — | Call for availability | |
| 27 | 37843113 | 9/16" Hex Head Cap Screw (.375" -16 X 1 .375") | 4 | $2.73 | Add to Cart | |
| 28 | 38007607 | Hardened Flat Washer (.410" X .816" X .066") | 8 | $1.50 | Add to Cart | |
| 30 | 3795642 | Thread Cap (.438") | 5 | $1.23 | Add to Cart | |
| 32 | 329403X | Seal Cap Assembly (g & H Shift Only) | 1 | $490.07 | Add to Cart | |
| 33 | 379486 | 90° Elbow (.438" -20) (g & H Shift Only) | 1 | $28.97 | Add to Cart | |
| 34 | 379243 | Speed Sensor W/ Eoc | 1 | $229.65 | Add to Cart | |
| 35 | 28P171 | O-ring W/ Eoc (.644" X .087 ") | 1 | $4.88 | Add to Cart | |
| 36 | 37843314 | 5/16" Hex Head Cap Screw (.500" -13 X 1 .500") (xv, Ab, Ac Outputs) Continued On Next | 4 | $3.89 | Add to Cart | |
| 37 | 329654X | Cover Kit (xs, Zs, Cs Outputs) | 1 or | $157.74 | Add to Cart | |
| 329658X | Cover Kit (xk, Af, Az, Vck, Cf, Cz Outputs) | 1 or | $157.74 | Add to Cart | ||
| 330159X | Cover Kit (xy Output Only) | 1 or | — | Call for availability | ||
| 329722X | Cover Kit (da Output Only) | 1 | $118.75 | Add to Cart | ||
| 32894836X | Gasket & Installation Kit (all) Stud Kits | 1 | $42.19 | Add to Cart | ||
| 717086X | Stud Kit (5 Arrangement) | 1 | $84.46 | Add to Cart | ||
| 7170123X | Stud Kit (3 Arrangement) Bracket & Hose Kits | 1 | $119.77 | Add to Cart | ||
| 3298973X | Bracket & Hose Kit (h Mount) | 1 | $398.97 | Add to Cart | ||
| 3298976X | Bracket & Hose Kit (u Mount) | 1 | $530.56 | Add to Cart | ||
| 3298977X | Bracket & Hose Kit (c Mount) | 1 | $400.57 | Add to Cart | ||
| 32989710X | Bracket & Hose Kit (j Mount) | 1 | $423.52 | Add to Cart | ||
| 32989711X | Bracket & Hose Kit (k Mount) | 1 | $465.17 | Add to Cart | ||
| 32989719X | Bracket & Hose Kit (p Mount) Installation Kits | 1 | $507.03 | Add to Cart | ||
| 32902412X | 12VDC Installation Kit (b Shift Option) | 1 or | $272.23 | Add to Cart | ||
| 32902424X | 24VDC Installation Kit (d Shift Option). | 1 | $304.69 | Add to Cart | ||
| 329076X | 12VDC Installation Kit W/ Eoc (k & L Shift Option) | 1 or | $152.30 | Add to Cart | ||
| 32907624X | 24VDC Installation Kit W/ Eoc (k & L Shift Option) | 1 | — | Call for availability | ||
| 329650X | Electronic Overspeed Controls (k & L Shift Option) | 1 | $1,358.05 | Add to Cart | ||
| 32965312X | 12VDC Installation Kit Rem Valve W/o Eoc (g Shift Option) | 1 | $765.60 | Add to Cart | ||
| 32965324X | 24VDC Installation Kit Rem Valve W/o Eoc (h Shift Option) | 1 | $750.60 | Add to Cart | ||
| 3298981X | Mounting & Installation Kit (xs, Zs, Cs, As Outputs) | 1 | $135.33 | Add to Cart | ||
| 3298982X | Mounting & Installation Kit (xk, Af, Az, Vck, Cf, Cz Outputs) | 1 | $195.64 | Add to Cart | ||
| 3298983X | Mounting & Installation Kit (xy Output) | 1 | $176.91 | Add to Cart | ||
| 3298984X | Mounting & Installation Kit (da Output) Hose Assemblies | 1 | $201.53 | Add to Cart | ||
| 328075X | Hose Assembly (remote Valve Option Only) (all Mounting Options) | 1 | $150.56 | Add to Cart | ||
| 3290574X | Hose Assembly (remote Valve Option Only) (all Mounting Options) | 1 | $45.49 | Add to Cart | ||
| 3290754X | Hose Assembly (remote Valve Option Only) (u K Mounting Options) | 1 | $158.14 | Add to Cart | ||
| 3291302X | Hose Assembly (remote Valve Option Only) (all Mounting Options) | 1 | $100.29 | Add to Cart | ||
| 3291305X | Hose Assembly (remote Valve Option Only) (h J C, P Mounting Options) , , Continued On Next Chelsea Suggested List Price | 1 | $106.43 | Add to Cart | ||
| 32907146X | Gasket & Seal Kit (xs, Zs, Xk, Af, Az ,cs, Vck, Cf, Cz Outputs) | 1 | $253.84 | Add to Cart | ||
| 32907147X | Gasket & Seal Kit (xy Output) | 1 | $241.51 | Add to Cart | ||
| 32907148X | Bearing Kit (xs, Zs, Xk, Af, Az, Cs, Vck, Cf, Cz Outputs) | 1 | $717.52 | Add to Cart | ||
| 32907149X | Bearing Kit (xy Output) | 1 | $717.52 | Add to Cart | ||
| 32907150X | Clutch Repair Kit | 1 | $1,039.60 | Add to Cart | ||
| 32907151X | Bearing Kit (xv, Af, Az Outputs) | 1 | $717.52 | Add to Cart | ||
| 32907152X | Gasket & Seal Kit (xv, Af, Az Outputs) | 1 | $305.53 | Add to Cart | ||
| 32907153X | Bearing Kit (da Output) | 1 | — | No longer available — call for replacement | ||
| 32907154X | Gasket & Seal Kit (da Output) Shifter Conversion Kits | 1 | $244.81 | Add to Cart | ||
| 32935412X | 12VDC Remote Mount Valve Conversion Kit | 1 | $930.53 | Add to Cart | ||
| 32935424X | 24VDC Remote Mount Valve Conversion Kit Conversion Kits | 1 | $473.86 | Add to Cart | ||
| 32916063X | Conversion Kit (xs To Xv) (xs, Zs, Cs Outputs) | 1 | $1,068.90 | Add to Cart | ||
| 32916064X | Conversion Kit (xs To Ab) (xs, Zs, Cs Outputs) | 1 | $1,359.67 | Add to Cart | ||
| 32916065X | Conversion Kit (xs To Ac) (xs, Zs, Cs Outputs) (3 Arrangement) | 1 | — | No longer available — call for replacement | ||
| 32916066X | Conversion Kit (xs To Ac) (rk Outputs) (5 Arrangement) Chelsea Suggested List Price | 1 | $1,429.91 | Add to Cart |
Gear Ratio Options 892 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P14281 | 1X 5-P-1428 50 5-P-1545 24 2-P-862 40 | — | Call for availability | |||
| 5P142812X | 5-P-1428 50 5-P-1546 25 2-P-872 39 | $940.37 | Add to Cart | |||
| 5P14283X | 5-P-1428 50 5-P-1439 26 2-P-873 38 | $1,116.80 | Add to Cart | |||
| 5P14284X | 5-P-1428 50 5-P-1440 27 2-P-874 37 | $1,116.80 | Add to Cart | |||
| 5P14285X | 5-P-1428 50 5-P-1432 29 2-P-865 35 | $1,116.80 | Add to Cart | |||
| 5P14286X | 5-P-1428 50 5-P-1433 31 2-P-866 33 | $1,010.01 | Add to Cart | |||
| 5P14287X | 5-P-1428 50 5-P-1457 33 2-P-888 31 | $1,042.27 | Add to Cart | |||
| 5P14288X | 5-P-1428 50 5-P-1455 34 2-P-881 30 | $942.58 | Add to Cart | |||
| 5P16631X | 5-P-1663X 50 5-P-1545 24 2-P-862 40 | $1,523.96 | Add to Cart | |||
| 5P16632X | 5-P-1663X 50 5-P-1546 25 2-P-872 39 | $1,523.96 | Add to Cart | |||
| 5P16633X | 5-P-1663X 50 5-P-1439 26 2-P-873 38 | $1,523.96 | Add to Cart | |||
| 5P16634X | 5-P-1663X 50 5-P-1440 27 2-P-874 37 | $1,523.96 | Add to Cart | |||
| 5P16635X | 5-P-1663X 50 5-P-1432 29 2-P-865 35 | $1,523.97 | Add to Cart | |||
| 5P16636X | 5-P-1663X 50 5-P-1433 31 2-P-866 33 On Approved Applications Contact Parker Chelsea Customer Service For Availability. . Suggested List Price | $1,523.96 | Add to Cart |
Shift Options 892 Series Valve Cap Assembly 330175-*X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 20 | 33017512X | 12VDC Valve & Cap Assembly (fj Pitch Only) | 1 or | $419.56 | Add to Cart | |
| 33017524X | 24VDC Valve & Cap Assembly (fj Pitch Only) | 1 | — | Call for availability | ||
| 34P357 | Valve Cap | 1 | — | Call for availability | ||
| 28P119 | Oil Seal (high Pressure) | 1 | $26.61 | Add to Cart | ||
| 378811 | Washer | 1 | $5.21 | Add to Cart | ||
| 378849 | Retaining Ring | 1 | $2.12 | Add to Cart | ||
| 3784476 | Socket Head Cap Screw (.312 " -18 X 1 .000") | 1 | $4.33 | Add to Cart | ||
| 380012 | Clamp (fj) Used With 38001 1 Valve | 1 | — | Call for availability | ||
| 380124 | Clamp (fj) Used With 380123 Valve | 1 | — | Call for availability | ||
| 38012312 | 12VDC Hydraulic Valve (fj) (white Connector Top) | 1 or | $222.19 | Add to Cart | ||
| 38012324 | 24VDC Hydraulic Valve (fj) (black Connector Top) | 1 | $213.64 | Add to Cart | ||
| 32907183X | Hydraulic Solenoid Valve O-ring Kit | 1 | $135.56 | Add to Cart |

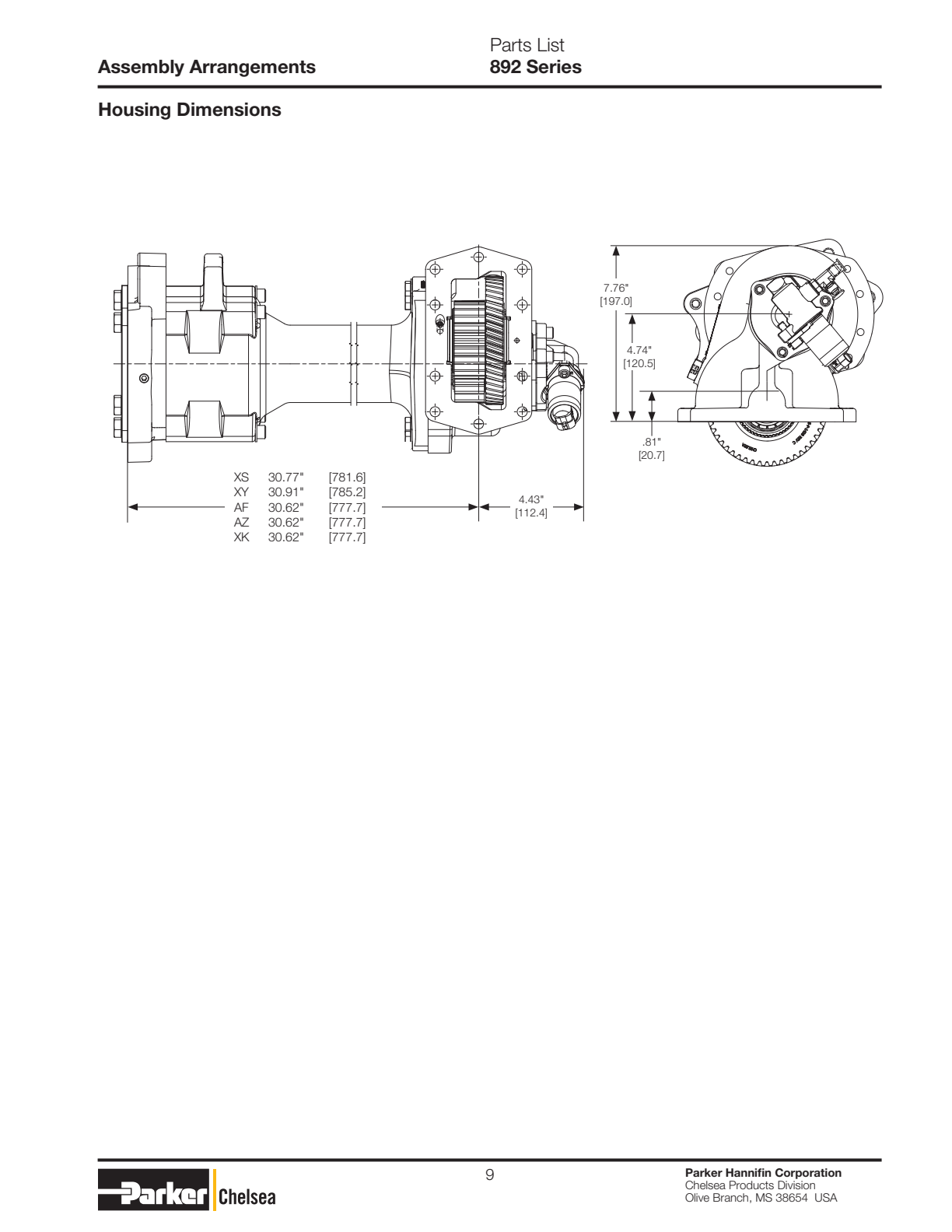

Output Options 892 Series Drive Shaft & Clutch Assembly 329661X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 28P285 | O-ring (1 .597 " X .103") | 2 | $12.64 | Add to Cart | |
| 2 | 380051 | Cylinder Clutch Back-up | 1 | — | No longer available — call for replacement | |
| 3 | 28P178 | O-ring (4.484" X .138") | 1 | $41.94 | Add to Cart | |
| 4 | 380110X | Piston Clutch Assembly W/ Ball | 1 | $507.89 | Add to Cart | |
| 5 | 329678X | Gear And Plate Kit | 1 | $474.31 | Add to Cart | |
| 2P858 | Gear Output (36T) | 1 | $186.14 | Add to Cart | ||
| 379485 | Disc Friction | 1 1 | $14.45 | Add to Cart | ||
| 380065 | Plate Clutch | 10 | $16.48 | Add to Cart | ||
| 6 | 380069 | Lockring | 1 | $6.90 | Add to Cart | |
| 7 | 3P1008 | Shaft Output | 1 | $4,563.82 | Add to Cart | |
| 8 | 37P72 | Spring (2 .140" X 1 .941 ") | 1 | $26.96 | Add to Cart | |
| 9 | 380070 | Lockring | 1 | $3.31 | Add to Cart | |
| 10 | 561028 | Bearing Ball (1 .969" X 3 .150" X .630") | 1 | $60.54 | Add to Cart | |
| 379231 | Plug Pipe (.125" -27) | 1 | $1.50 | Add to Cart |
Output Options 892 Series (AB) DIN 120 Companion Flange 329608-2X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P736 | Bearing Cap | 1 | $434.21 | Add to Cart | |
| 2 | 378161 | Gasket 4600 | 1 | $27.32 | Add to Cart | |
| 3 | 28P283 | Oil Seal (2 .754" X 2 .000" X .313") | 1 | $49.34 | Add to Cart | |
| 4 | 379558 | Din 120 Companion Flange | 1 | $698.00 | Add to Cart | |
| 5 | 380486 | Stop Nut (7/8" 14T) Spline | 1 | $60.21 | Add to Cart | |
| 6 | 561020 | Ball Bearing (1 .574" X 3 .149" X .708") | 1 | $42.83 | Add to Cart | |
| 7 | 378836 | Lockring | 1 | $13.50 | Add to Cart | |
| 8 | 35P103 | Gasket Shaft | 1 | $25.58 | Add to Cart | |
| 9 | 3P1009 | Output Shaft 10T Straight | 1 | $761.34 | Add to Cart | |
| 38007613 | Flat Hardened Washer (.950" X 1 .762 " X .157 ") | 1 | $3.51 | Add to Cart | ||
| 28P245X | O-ring (5 .017 " X .103") | 1 | $70.29 | Add to Cart | ||
| 4 | 379742 | Din 100 Companion Flange | 1 | $1,076.21 | Add to Cart |
Output Options 892 Series (XV) SAE 1410 Companion Flange 329608-1X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P736 | Bearing Cap Ab, Ac, Xv | 1 | $434.21 | Add to Cart | |
| 2 | 378161 | Gasket 4600 | 1 | $27.32 | Add to Cart | |
| 3 | 28P283 | Oil Seal (2 .754" X 2 .000" X .313") | 1 | $49.34 | Add to Cart | |
| 4 | 313431 | 1410 Series Companion Flange. | 1 | — | Call for availability | |
| 5 | 380486 | Stop Nut (7/8" 14T) Spline | 1 | $60.21 | Add to Cart | |
| 6 | 561020 | Ball Bearing (1 .574" X 3 .149" X .708") | 1 | $42.83 | Add to Cart | |
| 7 | 378836 | Lockring | 1 | $13.50 | Add to Cart | |
| 8 | 35P103 | Gasket Shaft | 1 | $25.58 | Add to Cart | |
| 9 | 3P1009 | Output Shaft 10T Straight | 1 | $761.34 | Add to Cart | |
| 38007613 | Flat Hardened Washer (.950" X 1 .762 " X .157 ") | 1 | $3.51 | Add to Cart | ||
| 28P252X | O-ring (2 .987 " X .103") | 1 | $30.05 | Add to Cart | ||
| 1 | 21P723 | Pump Flange | 1 | $612.58 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 2P875 | Output Gear (1 " 15T) Spline | 1 | $1,179.78 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") | 1 | $49.60 | Add to Cart |
Output Options 892 Series ( Vas) SAE C 2 or 4-Bolt ISO 3019 21T 329609-9X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P717 | Pump Flange | 1 | $646.72 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 2P906 | Output Gear | 1 | — | Call for availability | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P245X | O-ring (5 .017 " X .103") (wet Spline Pump Mount) | 1 | $70.29 | Add to Cart | ||
| 1 | 21P723 | Pump Flange | 1 | $612.58 | Add to Cart | |
| 4 | 2P877 | Output Gear (14T) Spline | 1 | $1,245.50 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") Chelsea Suggested List Price | 1 | $49.60 | Add to Cart |
Output Options 892 Series (CF) SAE B 2 or 4-Bolt 1 " 15T 329673-3X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P739 | Pump Flange | 1 | $624.84 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 2P875 | Output Gear (1 " 15T) Spline | 1 | $1,179.78 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") | 1 | $49.60 | Add to Cart | ||
| 4 | 2P877 | Output Gear (7/8" 13T) Spline | 1 | $1,245.50 | Add to Cart |
Output Options 892 Series (CS) SAE C 4-Bolt 1-1/4" 14T 329673-1X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P742 | Pump Flange | 1 | $646.72 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 2P867 | Gear Output (1 -1/4" 14T) Spline | 1 | $1,203.43 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 1 | $1.50 | Add to Cart | |
| 28P245X | O-ring (5 .017 " X .103") (wet Spline Pump Mount) | 1 | $70.29 | Add to Cart | ||
| 1 | 21P739 | Pump Flange | 1 | $624.84 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") (wet Spline Pump Mount) | 1 | $49.60 | Add to Cart |
Output Options 892 Series (DA) Class D 4-Bolt Pump Mount 329657-6X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P746 | Pump Flange | 1 | $888.26 | Add to Cart | |
| 2 | 550509 | Ball Bearing (2 .362 " X 3 .740" X .708") | 1 | $213.92 | Add to Cart | |
| 3 | 378553 | Lockring | 1 | $18.98 | Add to Cart | |
| 4 | 2P882 | Output Gear (1 -3/4" 13T) Spline | 1 | $1,110.48 | Add to Cart | |
| 5 | 378553 | Internal Lockring | 1 | $18.98 | Add to Cart | |
| 6 | 28P292 | Oil Seal (3 .346" X 2 .362 " X .315") | 1 | $68.29 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P291X | O-ring (5 .984" X .139") (wet Spline Pump Mount) | 1 | — | Call for availability | ||
| 1 | 21P723 | Pump Flange | 1 | $612.58 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 2P877 | Output Gear (7/8" 13T) Spline | 1 | $1,245.50 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") | 1 | $49.60 | Add to Cart |
Output Options 892 Series (XS) SAE C 2 or 4-Bolt 1-1/4" 14T 329609-1X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P717 | Pump Flange | 1 | $646.72 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 2P867 | Gear Output (1 -1/4" 14T) Spline | 1 | $1,203.43 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P245X | O-ring (5 .017 " X .103") (wet Spline Pump Mount) | 1 | $70.29 | Add to Cart | ||
| 1 | 21P725 | Pump Flange | 1 | $612.58 | Add to Cart | |
| 2 | 550311 | Ball Bearing (1 .770" X 3 .346" X .748") | 1 | $81.15 | Add to Cart | |
| 3 | 378263 | Lockring | 1 | $19.87 | Add to Cart | |
| 4 | 2P876 | Output Gear (8T) Spline | 1 | $1,179.78 | Add to Cart | |
| 5 | 379555 | Lockring | 1 | $23.13 | Add to Cart | |
| 6 | 28P267 | Oil Seal (2 .627 " X 1 .750" X .312 ") | 1 | $66.05 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") | 1 | $49.60 | Add to Cart |
Output Options 892 Series (ZS) SAE C 4-Bolt 1-1/8" 21T 329609-7X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P764 | Pump Flange | 1 | $620.57 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 2P867 | Output Gear (1 -1/4" 14T) Spline | 1 | $1,203.43 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") | 1 | $49.60 | Add to Cart |
Output Options 892 Series Wet Spline Output Cover Plates
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 22P252 | Gasket (xs, Cs Output) | 1 or | $6.29 | Add to Cart | |
| 35P104 | Gasket (xk, Af, Az, Vck, Cf, Cz Output) | 1 or | $33.17 | Add to Cart | ||
| 379943 | Gasket (xy Output) | 1 or | $4.18 | Add to Cart | ||
| 22P114 | Gasket (da Output) | 1 | $48.39 | Add to Cart | ||
| 2 | 34P284 | Cover (xs, Cs) | 1 or | $128.55 | Add to Cart | |
| 34P285 | Cover (xk, Af, Az, Vck, Cf, Cz) | 1 or | $128.55 | Add to Cart | ||
| 379940 | Cover (xy) | 1 or | $36.51 | Add to Cart | ||
| 34P309 | Cover (da Output) | 1 | — | No longer available — call for replacement | ||
| 3 | 37843310 | 5/16" Hex Head Cap Screw (xs, Cs) (.500" -13 X 1 .000") | 4 or | $10.44 | Add to Cart | |
| 37843310 | 5/16" Hex Head Cap Screw (xk, Af, Az, Ck, Cf, Cz) (.500" -13 X 1 .000") | 4 or | $10.44 | Add to Cart | ||
| 3795794 | 19 Mm Hex Head Cap Screw (xy) (M12-1 .75 X 20 Mm) | 4 or | $10.36 | Add to Cart | ||
| 5004037 | 1 -1/4" Hex Head Cap Screw (da) (.750" -10 X 1 .250") Per Chelsea Suggested List Price | 4 | $3.93 | Add to Cart |
Allison
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Allison
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 379486 | Transmission Pressure Hose Included In Hose & Bracket Kit Per Mounting Option Torque End Fittings To 1 1 -12 Lb-ft 379486 90° Elbow Install In Transmission High Pressure Port Md: Left Or Right Side Hd: Left Side Only Torque Nut To 13-15 Lb-ft Personal Injury | $28.97 | Add to Cart |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 500841-1 | 90° Elbow Torque To 8-12 Lb-ft | $9.09 | Add to Cart | |||
| 50-P-62 | 329130-4X 380071 (2) 380075 (3) | $134.77 | Add to Cart | |||
| 50-P-73 | 329075-2X 380071 (2) 380075 (3) | $260.91 | Add to Cart | |||
| 50-P-74 | 329130-4X 380071 (2) 380075 (3) | $124.31 | Add to Cart | |||
| 50-P-130 | 329130-4X 380071 (2) 380075 (3) | $216.79 | Add to Cart | |||
| 50-P-126 | 329130-4X 380071 (2) 380075 (3) | $204.15 | Add to Cart | |||
| 50-P-127 | 329075-2X 380071 (2) 380075 (3) | $180.02 | Add to Cart | |||
| 329899-2X | 500841-1 379964 329075-2X | $291.75 | Add to Cart | |||
| 379071-83X | O-ring Kit | — | Call for availability | |||
| 329608-2X | Output Assembly | 1 | — | Call for availability | ||
| 329608-3X | Output Assembly | 1 | — | Call for availability | ||
| 329608-1X | Output Assembly | 1 | — | Call for availability | ||
| 329609-3X | Output Assembly | 1 | $1,677.85 | Add to Cart | ||
| 69-P-18 | Wet Spline Tag | 1 | $6.83 | Add to Cart | ||
| 329609-5X | Output Assembly | 1 | $1,260.96 | Add to Cart | ||
| 329673-3X | Output Assembly | 1 | $1,431.09 | Add to Cart | ||
| 329673-1X | Output Assembly | 1 | $1,431.09 | Add to Cart | ||
| 329657-6X | Output Assembly | 1 | $1,730.11 | Add to Cart | ||
| 329609-4X | Output Assembly | 1 | $1,260.96 | Add to Cart | ||
| 329609-7X | Output Assembly | 1 | $1,512.27 | Add to Cart | ||
| 379252 | Pto | $2.30 | Add to Cart | |||
| 12015378 | 90° Md: Hd: | — | Call for availability | |||
| 379900 | Assy Fuse | $5.99 | Add to Cart | |||
| 379265 | To | $3.21 | Add to Cart | |||
| 379711 | To | $157.76 | Add to Cart | |||
| 379280 | Torque | $7.49 | Add to Cart | |||
| 379449 | Oil Pto It | $13.18 | Add to Cart | |||
| 329657-3X | Output Assembly | 1 | $834.98 | Add to Cart | ||
| 329609-9X | Output Assembly | 1 | — | Call for availability | ||
| 329657-5X | Output Assembly | 1 | $834.98 | Add to Cart | ||
| 329677-3X | Output Assembly | 1 | — | Call for availability | ||
| 329677-2X | Output Assembly | 1 | — | Call for availability | ||
| 329677-1X | Output Assembly | 1 | $776.70 | Add to Cart | ||
| 329677-5X | Output Assembly | 1 | $1,008.66 | Add to Cart | ||
| 329657-4X | Output Assembly | 1 | $834.98 | Add to Cart | ||
| 329657-7X | Output Assembly | 1 | $834.98 | Add to Cart | ||
| 328946X | Caution Label Kit | 1 | — | No longer available — call for replacement | ||
| 379451 | Pilot Screw (M10-1.5 X .984") | 2 | $7.23 | Add to Cart | ||
| 35-P-74 | Shim Gasket | 1 | $7.13 | Add to Cart | ||
| 379453-10 | Cap Screw (M10-1.5 X 1.378") | 8 | $6.86 | Add to Cart | ||
| 379085-2 | Instructions Label | 1 | $4.02 | Add to Cart | ||
| 379624 | Product Warranty Card | 1 | $3.72 | Add to Cart | ||
| 379428-18 | Stud (M10 X 1.5 X .375"-24 X 2.000") | 1 | $8.32 | Add to Cart | ||
| 379744 | Flange Nut (.375"-24) | 1 | $1.63 | Add to Cart | ||
| 329130-4X | Hose Assembly | 1 | $96.99 | Add to Cart | ||
| 380668X | Bracket & Label Assembly | 1 | $5.98 | Add to Cart | ||
| 380075 | Hex Head Cap Screw | $13.93 | Add to Cart | |||
| 379061 | Plastic Wire Tie | 6 | $1.46 | Add to Cart | ||
| 380071 | Socket Head Shoulder Cap Screw | $39.72 | Add to Cart | |||
| 379257 | Electrical Connector | 2 | $2.91 | Add to Cart | ||
| 379502 | Pressure Switch | 1 | $93.06 | Add to Cart | ||
| 329075-2X | Hose Assembly | 1 | $150.07 | Add to Cart | ||
| 379504 | Valve Connector Wiring | 1 | $52.22 | Add to Cart | ||
| 379254-17 | Electrical Wire 14G Fork | 1 | $18.76 | Add to Cart | ||
| 380672 | Female Spade Connector (.250") | 3 | — | Call for availability | ||
| 379061X | Plastic Wire Tie Assembly | 1 | — | Call for availability | ||
| 75-P-46X | Wire And Connectors Kit | 1 | $27.77 | Add to Cart | ||
| 75-P-53 | 24VDC Wire Harness Assembly | 1 | $207.54 | Add to Cart | ||
| 328923-10X | Speed Sensor Cable 10 Ft | 1 | — | No longer available — call for replacement | ||
| 379258 | Solenoid Valve Mounting Bracket | 1 | $5.11 | Add to Cart | ||
| 20071-3 | Eoc Unit (nss) | 1 | — | Call for availability | ||
| 379700 | Swivel Nut Tee (.438"-20) | 2 | $13.33 | Add to Cart | ||
| 379910 | Male Connector (.438"-20 X .125"-27) | 1 | $6.31 | Add to Cart | ||
| 380010 | Female Sae Swivel Nut Union (.438"-20) | 1 | $17.47 | Add to Cart | ||
| 329231X | Valve Connector Wire Assembly | 1 | $123.35 | Add to Cart | ||
| 379131-1 | Pipe Reducer Bushing | 1 | $3.19 | Add to Cart | ||
| 379686-2 | 24VDC Hydraulic Shifter Solenoid Valve | 1 | $466.27 | Add to Cart | ||
| 500357-7 | Lock Washer (.194" X .337" X .047") | 2 | $1.07 | Add to Cart | ||
| 500457-6 | Slotted Screw (.190"-32 X .438") | 2 | $1.12 | Add to Cart | ||
| 379686-1 | 12VDC Hydraulic Shifter Solenoid Valve | 1 | $473.29 | Add to Cart | ||
| 329230X | Wire & Butt Connector | 1 | — | No longer available — call for replacement | ||
| 21-P-759 | Bearing Cap | 1 | $241.43 | Add to Cart | ||
| 21-P-731 | Flange Pump | 1 | $196.99 | Add to Cart | ||
| 22-P-101 | Gasket | 1 | $15.38 | Add to Cart | ||
| 28-P-225 | Oil Seal (2.004" X 1.375" X .315") | 1 | $19.01 | Add to Cart | ||
| 378447-8 | Socket Head Cap Screw | 8 | $2.32 | Add to Cart | ||
| 28-P-244 | O-ring (1.174" X .103") | 2 | $5.03 | Add to Cart | ||
| 3-P-1051 | Output Shaft (7/8" 13T) | 1 | — | Call for availability | ||
| 378576 | Lockring | 2 | $3.16 | Add to Cart | ||
| 379746 | Lockring | 1 | $5.06 | Add to Cart | ||
| 379688 | Spline Lubricant | 1 | $8.98 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO 892 — every part in the manual, matched to our live inventory. We stock 283 of the 314 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
